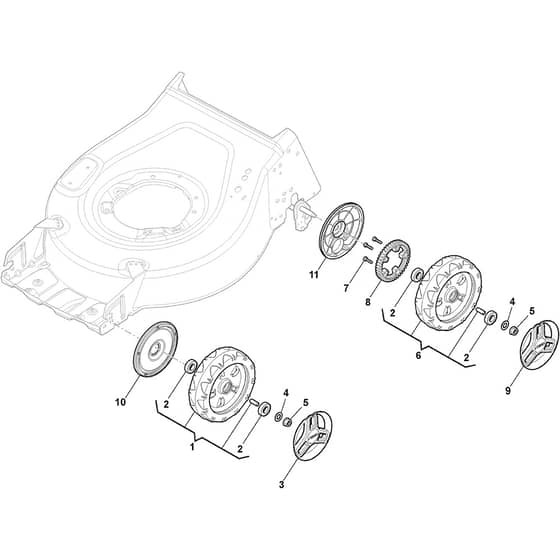

CP1 430 S Li - 2019 - 2L0432063/19 - Castel Garden Rotary Mower Wheel and Hub Cap Diagram

Name: CP1 430 S Li - 2019 - 2L0432063/19 - Castel Garden Rotary Mower Wheel and Hub Cap Diagram
SKU: cp1_430_s_li_2l0432063_19_wheel_and_hub_cap-group
Price: 1.29 GBP
Availability: InStock

Part No. cp1_430_s_li_2l0432063_19_wheel_and_hub_cap-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CP1 430 S Li - 2019 - 2L0432063/19 - Castel Garden Rotary Mower Wheel and Hub Cap Diagram

Description

Castel Garden CP1 430 S Li Parts Diagram

Product Name - CP1 430 S Li

Model Year - 2019

Model Type - CP1 430 S Li 60

Art.N - 2L0432063/19

Engine Model -

	Part No.	Details
2	MO119216035/0 In stock	Bearing	£3.52 £2.93
4	MO112521350/0 In stock	Washer	£1.55 £1.29
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO381007416/3 Available to backorder	Wheel Ø 200 Only bearings NOT bushings From S.N 19JA2WBH009253	£17.60 £14.67
7	MO112728706/0 In stock	Screw	£1.60 £1.33
8	MO322120114/0 Available to backorder	Wheels Crown	£6.90 £5.75
9	MO322110744/0 Available to backorder	Hub Cap Grey	£3.52 £2.93
10	MO322600145/0 Available to backorder	Protection. Wheel As Optional	£1.70 £1.42
11	MO322600239/0 Available to backorder	Inner Wheel Cover D.200	£3.79 £3.16
