Countax Xrd Deck 42" - From 01-09-2015 - 06 42 Xrd Deck Pulleys

Name: Countax Xrd Deck 42" - From 01-09-2015 - 06 42 Xrd Deck Pulleys
SKU: countax_deck_xrddeck42_01092015_06-group
Price: 0.4 GBP
Availability: InStock

Part No. countax_deck_xrddeck42_01092015_06-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Xrd Deck 42" - From 01-09-2015 - 06 42 Xrd Deck Pulleys

Description

Countax XRD

XRD DECK 42" - Deck

From 01-09-2015

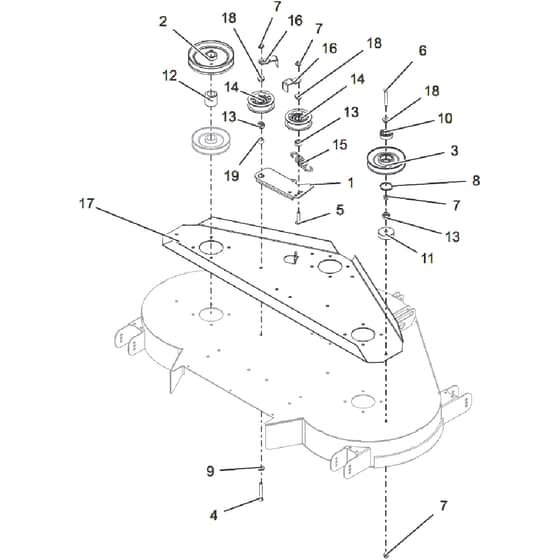

06 42 Xrd Deck Pulleys Parts Diagram

	Part No.	Details
1	WE32731000 Available to backorder	Belt Tension Plate 96	£74.40 £62.00
2	WE209044300 Available to backorder	5 3.4 Dk Drive Pulley 42 Hgm 2	£49.63 £41.36
3	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£36.23 £30.19
4	7530 In stock	Bolt M8 X 60mm	£0.48 £0.40
5	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
6	WE028662600 Available to backorder	Bolt M8 X 55	£0.65 £0.54
8	WE07847600 Available to backorder	Circlip 40mm	£1.82 £1.52
9	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
10	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
11	WE183004200 Available to backorder	Tr D 98 Idler Pulley Spacer	£21.23 £17.69
12	WE183530500 Available to backorder	363842Hgm Deck Drive Pulley Sp	£22.06 £18.38
13	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
14	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
15	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
16	WE301123800 Available to backorder	Joggled Belt Retaining Pulley	£19.03 £15.86
18	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
19	WE52936700 Available to backorder	Oilite Bush - 5.8Od X 1.2Id X	£6.25 £5.21
