Countax Xrd Deck 42" - From 01-06-2014 To 01-10-2014 - 03 42 Xrd Deck

Description

Countax XRD

XRD DECK 42" - Deck

From 01-06-2014 To 01-10-2014

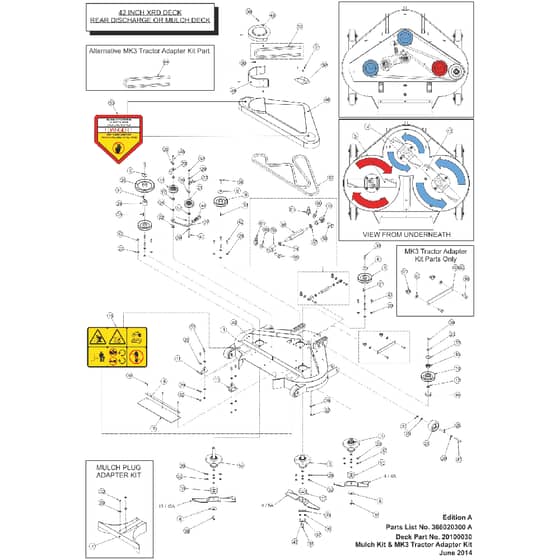

03 42 Xrd Deck Parts Diagram

	Part No.	Details
1	WE327401401 Available to backorder	42 Xrd Body Weld Assembly 2015	£638.62 £532.18
2	WE327401500 Available to backorder	42 Ibs Mulch Stiffener Welded	£242.64 £202.20
3	WE40503607 In stock	Bearing Housing Assy Short Sha	£119.30 £99.42
4	WE16869102 In stock	Blade 15 (4A)	£24.42 £20.35
5	WE16869202 In stock	15 Blade. R.H (5A)	£24.42 £20.35
6	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
7	WE14868900 Available to backorder	Rubber Flap (T.Axle Deflector)	£11.46 £9.55
8	WE541113000 Available to backorder	Sweeper & Combi Deck Flap Stri	£24.41 £20.34
9	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
10	WE30831500 In stock	Deck Bearing Housing Slinger 2	£11.96 £9.97
11	WE541039100 Available to backorder	Rear Deck Bracket 4 mm	£14.92 £12.43
12	WE22870000 In stock	Cutter Deck Belt	£112.97 £94.14
14	WE40503507 In stock	Deck Bearing Housing Assy Long	£128.50 £107.08
15	WE358098300 Available to backorder	Decal Deck Safety Diagram 2013	£14.17 £11.81
16	WE183004200 Available to backorder	Tr D 98 Idler Pulley Spacer	£21.23 £17.69
18	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
19	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£36.23 £30.19
21	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
22	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£51.43 £42.86
23	WE301123800 Available to backorder	Joggled Belt Retaining Pulley	£19.03 £15.86
24	WE183530500 Available to backorder	363842Hgm Deck Drive Pulley Sp	£22.06 £18.38
25	WE20870202 Available to backorder	7 Deck Drive Pulley	£87.84 £73.20
27	WE32731000 Available to backorder	Belt Tension Plate 96	£74.40 £62.00
28	WE179550400 Available to backorder	Anti Scalp Wheel Hub 10 X 55 M	£16.28 £13.57
29	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
30	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 103	£0.35 £0.29
31	WE09853401 Available to backorder	Key-1.4Sq X 1 1.4 American Spe	£2.06 £1.72
32	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
33	WE07847600 Available to backorder	Circlip 40mm	£1.82 £1.52
34	WE52936700 Available to backorder	Oilite Bush - 5.8Od X 1.2Id X	£6.25 £5.21
35	WE27111200 In stock	Deck Pan Tab Washer	£4.18 £3.48
36	6408 In stock	M8 Internally Serrated Shakepr	£0.48 £0.40
37	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
38	8984 In stock	Screw Hex Hd Din933 M10 X 30	£0.48 £0.40
39	WE028662600 Available to backorder	Bolt M8 X 55	£0.65 £0.54
40	7530 In stock	Bolt M8 X 60mm	£0.48 £0.40
41	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
42	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor	£1.28 £1.07
43	WE028003200 Available to backorder	M8 X 75mm Hex Bolt Zinc Plated Pa	£0.73 £0.61
44	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
46	WE148002402 Available to backorder	Deck Lid Cover 42 Ibs	£120.24 £100.20
47	WE088002100 Available to backorder	10mm Starlock Washer	£0.91 £0.76
48	WE149497400 Available to backorder	Universal Deck Pulley Cover 20	£18.74 £15.62
49	WE307183100 Available to backorder	D.Drive Pulley Guard	£60.78 £50.65
51	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.30 £1.08
52	WE22949900 Available to backorder	Cutter Belt	£50.17 £41.81
53	WE35803300 Available to backorder	Rider Deck Danger Decal	£8.52 £7.10
55	WE10872600 In stock	10mm Rod End	£20.66 £17.22
57	2173 In stock	M10 Locknut	£0.48 £0.40
59	WE31338200 In stock	Deck Push Rod Pin	£24.84 £20.70
60	2539 In stock	M10 X 24 X 2 Tl Washer	£0.48 £0.40
61	2195 In stock	Rue Clip	£1.25 £1.04
62	WE29203800 Available to backorder	48 Deck Bar	£48.80 £40.67
64	WE22871200 In stock	Cutter Belt	£38.59 £32.16
