Countax Xrd Deck 42'' 20100050 - From 01-02-2014 - 03 Pulleys And Idlers

Description

Countax XRD

XRD DECK 42'' 20100050 - Deck

From 01-02-2014

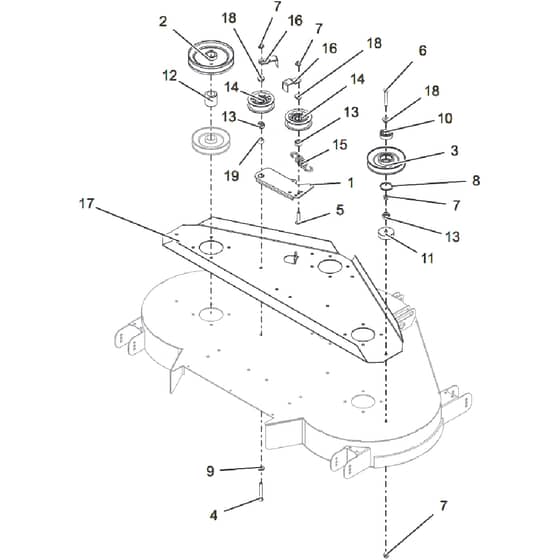

03 Pulleys And Idlers Parts Diagram

	Part No.	Details
1	WE32731000 Available to backorder	Belt Tension Plate 96	£74.40 £62.00
2	WE209044300 Available to backorder	5 3.4 Dk Drive Pulley 42 Hgm 2	£49.63 £41.36
3	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£36.23 £30.19
4	7530 In stock	Bolt M8 X 60mm	£0.48 £0.40
5	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
6	WE028662600 Available to backorder	Bolt M8 X 55	£0.65 £0.54
8	WE07847600 Available to backorder	Circlip 40mm	£1.82 £1.52
9	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
11	WE183004200 Available to backorder	Tr D 98 Idler Pulley Spacer	£21.23 £17.69
12	WE183530500 Available to backorder	363842Hgm Deck Drive Pulley Sp	£22.06 £18.38
14	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
15	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
16	WE301123800 Available to backorder	Joggled Belt Retaining Pulley	£19.03 £15.86
19	WE52936700 Available to backorder	Oilite Bush - 5.8Od X 1.2Id X	£6.25 £5.21
