Countax Xrd Deck 36" - From 01-09-2015 - 01 36 Xrd Deck

Name: Countax Xrd Deck 36" - From 01-09-2015 - 01 36 Xrd Deck
SKU: countax_deck_xrddeck36_01092015_01-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Xrd Deck 36" - From 01-09-2015 - 01 36 Xrd Deck

Description

Countax XRD

XRD DECK 36" - Deck

From 01-09-2015

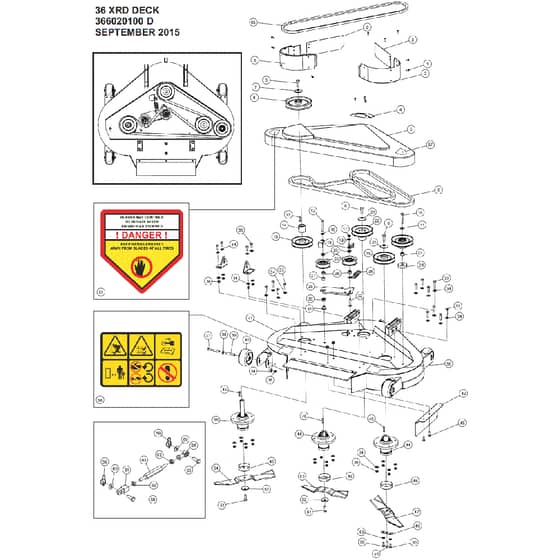

01 36 Xrd Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE12860100 Available to backorder	Rivet 4.8 X 16mm Alloy Pop 103	£1.25 £1.04
2	WE549008300 Available to backorder	Deck Pulley Guard Extension Pl	£10.67 £8.89
3	WE549007800 Available to backorder	Guard Deck Pulley	£28.31 £23.59
5	WE148993100 Available to backorder	36 Ibs Plastic Dck Lid Cover	£126.04 £105.03
6	8984 In stock	Screw Hex Hd Din933 M10 X 30	£0.94 £0.78
7	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£14.22 £11.85
8	WE209044300 Available to backorder	5 3.4 Dk Drive Pulley 42 Hgm 2	£47.98 £39.98
9	WE22869800 In stock	Cutter Deck Belt	£67.32 £56.10
10	WE028662600 Available to backorder	Bolt M8 X 55	£0.64 £0.53
12	7530 In stock	Bolt M8 X 60mm	£3.02 £2.52
13	WE09853401 Available to backorder	Key-1.4Sq X 1 1.4 American Spe	£2.00 £1.67
14	WE183530500 Available to backorder	363842Hgm Deck Drive Pulley Sp	£21.32 £17.77
16	2192 In stock	Washer - M8 X 21 X 1.6	£0.47 £0.39
17	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
19	WE301123800 Available to backorder	Joggled Belt Retaining Pulley	£18.40 £15.33
24	WE183004200 Available to backorder	Tr D 98 Idler Pulley Spacer	£20.52 £17.10
25	WE20811500 In stock	PTO Jockey Pulley	£23.06 £19.22
27	WE52936700 Available to backorder	Oilite Bush - 5.8Od X 1.2Id X	£6.25 £5.21
28	WE25906200 In stock	Deck Tension Spring	£19.78 £16.48
29	WE32731000 Available to backorder	Belt Tension Plate 96	£74.38 £61.98
30	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£49.72 £41.43
32	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.15 £0.96
33	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor	£1.50 £1.25
35	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
37	WE028003200 Available to backorder	M8 X 75mm Hex Bolt Zinc Plated Pa	£0.71 £0.59
39	WE179550400 Available to backorder	Anti Scalp Wheel Hub 10 X 55 M	£15.74 £13.12
41	WE327401301 Available to backorder	36 Xrd Body Weld Assembly	£580.80 £484.00
44	WE40503607 In stock	Bearing Housing Assy Short Sha	£115.30 £96.08
46	WE30831500 In stock	Deck Bearing Housing Slinger 2	£11.74 £9.78
47	WE16869202 In stock	15 Blade. R.H	£22.78 £18.98
48	WE27111200 In stock	Deck Pan Tab Washer	£3.90 £3.25
49	6408 In stock	M8 Internally Serrated Shakepr	£1.34 £1.12
53	WE16869001 In stock	Blade 12 L.H Harden	£21.92 £18.27
54	WE16869102 In stock	Blade 15	£22.78 £18.98
55	WE40503507 In stock	Deck Bearing Housing Assy Long	£124.14 £103.45
56	WE358098300 Available to backorder	Decal Deck Safety Diagram 2013	£13.70 £11.42
57	WE35803300 Available to backorder	Rider Deck Danger Decal	£8.24 £6.87
58	WE31338200 In stock	Deck Push Rod Pin	£24.40 £20.33
59	2195 In stock	Rue Clip	£0.76 £0.63
60	2539 In stock	M10 X 24 X 2 Tl Washer	£0.47 £0.39
64	WE10872600 In stock	10mm Rod End	£20.30 £16.92
65	WE229503900 Available to backorder	XRD Cutter Belt	£46.42 £38.68
