Countax X W Series Mulcher 50" - From 01-03-2009 To 01-01-2011 - 50 X W Series Mulcher

Name: Countax X W Series Mulcher 50" - From 01-03-2009 To 01-01-2011 - 50 X W Series Mulcher
SKU: countax_deck_xwseriesmulcher50_01032009_01012011_50-group
Price: 0.32 GBP
Availability: InStock

Part No. countax_deck_xwseriesmulcher50_01032009_01012011_50-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax X W Series Mulcher 50" - From 01-03-2009 To 01-01-2011 - 50 X W Series Mulcher

Description

Countax Mulch

X W SERIES MULCHER 50" - Deck

From 01-03-2009 To 01-01-2011

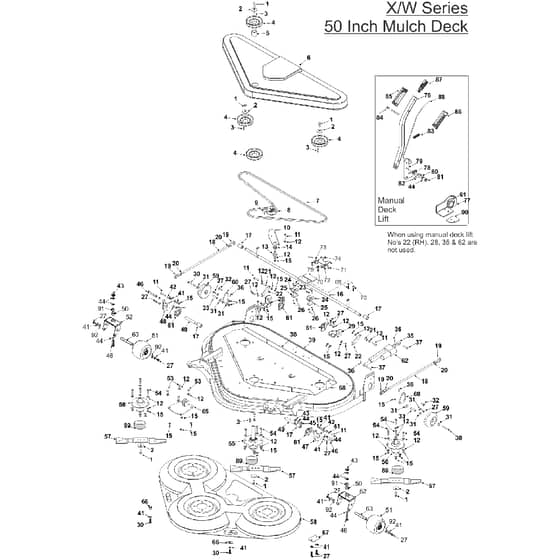

50 X W Series Mulcher Parts Diagram

	Part No.	Details
1	8984 In stock	Screw Hex Hd Din933 M10 X 30	£0.48 £0.40
3	2191 In stock	Key 1.4 X 1 Rounded	£0.48 £0.40
4	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
5	WE31328301 Available to backorder	Deck Drive Pulley Spacer	£48.80 £40.67
6	WE148005004 Available to backorder	X.W Series 50Combi.Mulch Cover	£140.28 £116.90
7	WE22950700 Available to backorder	Combi Cutter Belt	£116.88 £97.40
8	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
9	WE307187100 Available to backorder	Belt Keeper	£17.66 £14.72
10	WE307191200 Available to backorder	50 Mulch Jockey Pulley Plate	£61.92 £51.60
11	WE02941000 Available to backorder	Shield Wdecals 98083	£0.68 £0.57
12	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
13	WE189498400 Available to backorder	50 Mulch Jockey Plate Pivot Sh	£33.71 £28.09
15	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
16	WE328966201 Available to backorder	X.W 50 Mulch Deck Rear Shaft W	£78.60 £65.50
17	WE189511500 Available to backorder	X.W Series Deck Front Pivot Sp	£3.91 £3.26
18	WE189514800 Available to backorder	X.W Series 50 Mulch Deck Link	£30.86 £25.72
19	WE10872600 In stock	10mm Rod End	£20.66 £17.22
20	2173 In stock	M10 Locknut	£0.48 £0.40
22	WE307251000 Available to backorder	44 Rear Shaft Bolt On Bracket	£33.59 £27.99
23	WE02941200 Available to backorder	M6 X 20 Socket Button Head BZP	£1.00 £0.83
24	WE301965900 Available to backorder	X.W Series Deck 17mm Shaft Cla	£23.80 £19.83
25	WE307252800 Available to backorder	X.W Series Shaft Clamp 8mm Pac	£2.38 £1.98
26	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
27	WE01902300 Available to backorder	Shcs M61 X 20 Drilled 306686	£0.40 £0.33
28	WE30837100 Available to backorder	X & W Series RH Rear Bearing B	£33.77 £28.14
29	WE30837200 Available to backorder	X & W Series LH Rear Bearing B	£35.45 £29.54
30	2182 In stock	M8X70mm Hex Bolt Zinc & Clear	£0.48 £0.40
31	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
32	WE313513100 Available to backorder	Clevis Pin	£14.63 £12.19
33	WE31337600 In stock	Scuff Wheel Hub. Belt Guard Sp	Was £46.94 £39.12 Special Price £32.86 £27.38
34	WE449664100 Available to backorder	X Series Hiwin Actuator +	£370.54 £308.78
35	WE187189000 Available to backorder	Ww Deck Lift Actuator Screw	£2.10 £1.75
36	2197 In stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
37	WE189504800 Available to backorder	10mm Actuator Pin	£4.93 £4.11
38	WE3072575600 Available to backorder	X.W Series 50 Mulcher Deck Sti	£80.16 £66.80
41	WE089420400 Available to backorder	M8 Spring Washer Single Coil F	£0.67 £0.56
42	WE18317400 Available to backorder	Deck Height Pivot Boss	£9.26 £7.72
43	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
44	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
45	WE189513700 Available to backorder	X.W Series 15mm Rose Joint Spa	£49.39 £41.16
46	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.73 £0.61
47	WE301956900 Available to backorder	X.W Series 38 . 44.50Front Piv	£151.44 £126.20
48	WE301957000 Available to backorder	X.W Series 38 . 44.50Front Piv	£20.38 £16.98
49	WE189509800 Available to backorder	38.44 Front Pivot Saft	£20.30 £16.92
50	WE18341000 Available to backorder	Rider Sintered Bush 16.64Lx15.	£6.25 £5.21
51	WE148019400 Available to backorder	Front Deck Castor Wheels	£90.36 £75.30
52	WE328962200 Available to backorder	Deck Caster Bracket Welded Ass	£48.46 £40.38
53	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
54	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor	£1.28 £1.07
55	WE408020600 Available to backorder	X Series Front Deck Bearing As	£126.12 £105.10
56	WE40503607 In stock	Bearing Housing Assy Short Sha	£119.30 £99.42
57	WE16938100 Available to backorder	Blade 19Right	£34.69 £28.91
59	WE149495800 In stock	Antiscalp Wheel-March 2000	£23.58 £19.65
61	WE301048100 Available to backorder	Tractor Pedal Cassette Bearing	£52.78 £43.98
63	WE189510900 Available to backorder	X.W Series Caster Axle	£51.08 £42.57
64	2539 In stock	M10 X 24 X 2 Tl Washer	£0.48 £0.40
65	WE327800500 Available to backorder	X.W Series 50 Mulcher 5mm Pick	£30.00 £25.00
66	WE301956800 Available to backorder	Liner Plate For Mulch	£29.87 £24.89
67	WE301127400 Available to backorder	38 Mulcher Central Fixing Line	£8.52 £7.10
69	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
71	WE25813801 Available to backorder	Safety Switch Spring	£10.31 £8.59
74	WE301965800 Available to backorder	Retainer Plate	£47.24 £39.37
76	WE174203000 Available to backorder	Manual Deck Height Adjustment	£57.28 £47.73
77	WE301957300 Available to backorder	Quadrant. Manual Lift	£66.84 £55.70
78	WE183521200 Available to backorder	Latch Pivot Bush	£3.74 £3.12
79	WE301893600 Available to backorder	Deck Lift Handle Mounting Brac	£33.13 £27.61
82	WE301957401 Available to backorder	Manual Deck Lift Latch	£25.34 £21.12
83	WE25805000 Available to backorder	Park Brake Spring	£7.43 £6.19
84	WE053000000 Available to backorder	Snowblade Hand Grip Pin	£1.99 £1.66
85	WE149547200 Available to backorder	X Series Transport Lever LH Gr	£3.11 £2.59
86	WE149547100 Available to backorder	X Series Transport Lever RH Gr	£3.11 £2.59
87	WE149547000 Available to backorder	X Series Transport Lever Butto	£4.97 £4.14
88	WE313513400 Available to backorder	X.W Series Belt Keep Bar	£10.40 £8.67
89	WE30831500 In stock	Deck Bearing Housing Slinger 2	£11.96 £9.97
90	WE301957500 Available to backorder	Bearing Carrier Packing Plate	£29.77 £24.81
91	WE189510800 Available to backorder	X.W Series Caster Pivot Spacer	£2.14 £1.78
92	WE189511000 Available to backorder	X.W Series Caster Wheel Spacer	£7.66 £6.38
