Countax X W Series Mulcher 50" - - 50 X W Series Mulcher Electric

Description

Countax Mulch

X W SERIES MULCHER 50" - Deck

From To -

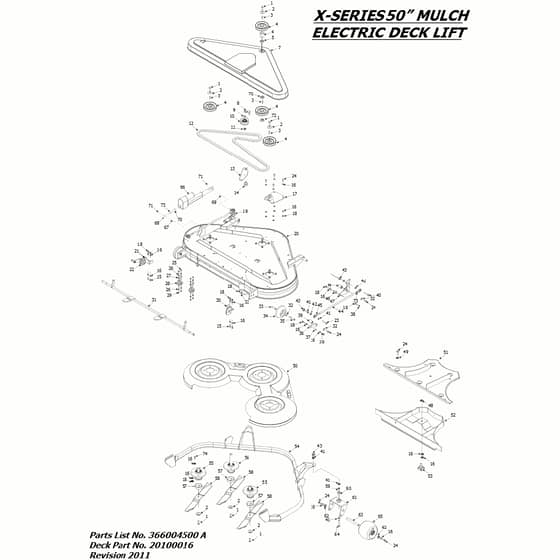

50 X W Series Mulcher Electric Parts Diagram

	Part No.	Details
1	8984 In stock	Screw Hex Hd Din933 M10 X 30	£0.48 £0.40
2	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
3	2191 In stock	Key 1.4 X 1 Rounded	£0.48 £0.40
4	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
5	WE183023100 Available to backorder	Spacer 8 X 38.1 X 25	£8.15 £6.79
7	WE148005004 Available to backorder	X.W Series 50Combi.Mulch Cover	£140.28 £116.90
8	WE301123800 Available to backorder	Joggled Belt Retaining Pulley	£19.03 £15.86
9	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
10	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
12	WE22950700 Available to backorder	Combi Cutter Belt	£116.88 £97.40
13	WE327362400 Available to backorder	50 Mulch Jockey Pulley Plate W	£65.52 £54.60
14	WE189498400 Available to backorder	50 Mulch Jockey Plate Pivot Sh	£33.71 £28.09
15	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
16	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
17	WE327889100 Available to backorder	X.W 50 Pick Up Plate Welded As	£125.28 £104.40
18	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
19	WE301956900 Available to backorder	X.W Series 38 . 44.50Front Piv	£151.44 £126.20
20	WE327888600 Available to backorder	50 Combi Deck Welded Assembly	£492.37 £410.31
21	WE30837200 Available to backorder	X & W Series LH Rear Bearing B	£35.45 £29.54
22	WE301048100 Available to backorder	Tractor Pedal Cassette Bearing	£52.78 £43.98
23	WE018005500 Available to backorder	M10 X 45 Bolt BZP	£1.66 £1.38
24	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
25	WE02941200 Available to backorder	M6 X 20 Socket Button Head BZP	£1.00 £0.83
28	WE301965900 Available to backorder	X.W Series Deck 17mm Shaft Cla	£23.80 £19.83
29	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
30	WE30837100 Available to backorder	X & W Series RH Rear Bearing B	£33.77 £28.14
31	WE327888900 Available to backorder	X.W Series 50 Combi Deck Rear	£49.19 £40.99
32	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
33	WE31337600 In stock	Scuff Wheel Hub. Belt Guard Sp	Was £46.94 £39.12 Special Price £32.86 £27.38
34	WE149495800 In stock	Antiscalp Wheel-March 2000	£23.58 £19.65
36	WE307251000 Available to backorder	44 Rear Shaft Bolt On Bracket	£33.59 £27.99
38	WE02941000 Available to backorder	Shield Wdecals 98083	£0.68 £0.57
39	WE189511500 Available to backorder	X.W Series Deck Front Pivot Sp	£3.91 £3.26
40	WE018002300 Available to backorder	M10 X 50 Hex Head Bolt	£0.73 £0.61
41	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
42	WE183529500 Available to backorder	C-Series Deck Lift Pivot Space	£11.52 £9.60
43	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
44	WE189514800 Available to backorder	X.W Series 50 Mulch Deck Link	£30.86 £25.72
45	WE10872600 In stock	10mm Rod End	£20.66 £17.22
46	WE18317400 Available to backorder	Deck Height Pivot Boss	£9.26 £7.72
47	WE541066700 Available to backorder	38 Combi Deck Front Pivot Pla	£4.40 £3.67
49	WE089422300 Available to backorder	M8 X 13 X 1 Mild Steel Washer	£1.00 £0.83
50	WE148990200 Available to backorder	50 Combi Deck Inner Liner	£294.96 £245.80
51	WE327888401 Available to backorder	50 Combi Clamp Plate	£212.76 £177.30
52	WE327888300 Available to backorder	50 Top Stiffener Welded Assemb	£302.88 £252.40
53	WE149552800 Available to backorder	Handwheel 40mm.M8 462053	£20.21 £16.84
55	WE40503607 In stock	Bearing Housing Assy Short Sha	£119.30 £99.42
56	WE408020600 Available to backorder	X Series Front Deck Bearing As	£126.12 £105.10
57	WE30831500 In stock	Deck Bearing Housing Slinger 2	£11.96 £9.97
58	WE16938100 Available to backorder	Blade 19Right	£34.69 £28.91
59	WE189510800 Available to backorder	X.W Series Caster Pivot Spacer	£2.14 £1.78
60	WE18341000 Available to backorder	Rider Sintered Bush 16.64Lx15.	£6.25 £5.21
61	WE328962200 Available to backorder	Deck Caster Bracket Welded Ass	£48.46 £40.38
62	WE189511000 Available to backorder	X.W Series Caster Wheel Spacer	£7.66 £6.38
63	WE189510900 Available to backorder	X.W Series Caster Axle	£51.08 £42.57
64	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.73 £0.61
65	WE148019400 Available to backorder	Front Deck Castor Wheels	£90.36 £75.30
66	WE449664100 Available to backorder	X Series Hiwin Actuator +	£370.54 £308.78
67	WE189504400 Available to backorder	E Sweeper Actuator Pin	£7.48 £6.23
68	WE187189000 Available to backorder	Ww Deck Lift Actuator Screw	£2.10 £1.75
69	WE189504800 Available to backorder	10mm Actuator Pin	£4.93 £4.11
70	WE188718900 In stock	Ww Actuator Attachment Body S&	Was £3.08 £2.57 Special Price £2.22 £1.85
71	2197 In stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
73	2173 In stock	M10 Locknut	£0.48 £0.40
74	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor	£1.28 £1.07
