Countax X W Series Hgm Deck 42" - From 01-02-2007 To 01-01-2008 - 42 X W Series Hgm

Description

Countax HGM

X W SERIES HGM DECK 42" - Deck

From 01-02-2007 To 01-01-2008

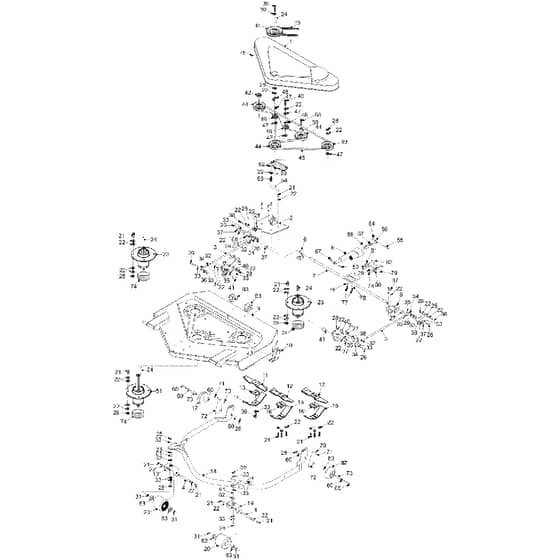

42 X W Series Hgm Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE148002302	Deck Lid Cover 38	Out of stock	£127.80 £106.50
2	WE328963700	X.W Series 36 Pickup Plate Wel	Out of stock	£85.44 £71.20
3	WE189513900	X.W Series Frnt To Rear 42 Hgm	Out of stock	£25.61 £21.34
4	WE189510900	X.W Series Caster Axle	Out of stock	£53.78 £44.82
6	WE449664100	X Series Hiwin Actuator +	Out of stock	£434.16 £361.80
7	WE328965700	X.W Series 42 Rear Deck Shaft	Out of stock	£46.48 £38.73
8	WE30837100	X & W Series RH Rear Bearing B	Out of stock	£32.64 £27.20
8	WE30837200	X & W Series LH Rear Bearing B	Out of stock	£34.28 £28.57
9	WE328965900	X.W 42 Hgm Deck Shell Welded A	Out of stock	£983.54 £819.62
11	WE16000400	15 R.H Hgm Blade	In stock	£26.75 £22.29
12	WE16000500	15 L.H Hgm Blade	In stock	£26.75 £22.29
13	WE16000700	Hgm Blade Bracket	Out of stock	£22.26 £18.55
14	WE16000100	15 Blade Bridge	In stock	£25.97 £21.64
15	WE16000300	Blade 3 Hole	Out of stock	£25.56 £21.30
16	WE301903500	Deck Locking Tab Washer	Out of stock	£16.56 £13.80
17	WE149495800	Antiscalp Wheel-March 2000	In stock	£24.02 £20.02
19	WE328962200	Deck Caster Bracket Welded Ass	Out of stock	£48.46 £40.38
20	WE148019400	Front Deck Castor Wheels	Out of stock	£91.32 £76.10
21	7746	Bolt M8 X 25mm	In stock	£0.38 £0.32
22	WE089420400	M8 Spring Washer Single Coil F	Out of stock	£0.71 £0.59
23	WE40503607	Bearing Housing Assy Short Sha	In stock	£111.00 £92.50
24	2191	Key 1.4 X 1 Rounded	In stock	£0.40 £0.33
25	WE189502700	Spacer 12.7Od. 10.2 Id . 9mm L	Out of stock	£20.80 £17.33
26	WE018002300	M10 X 50 Hex Head Bolt	Out of stock	£0.70 £0.58
27	WE31330002	Roller Shaft Spacer	In stock	£15.96 £13.30
28	2038	M10 Nyloc Nut	In stock	£0.72 £0.60
31	WE189511000	X.W Series Caster Wheel Spacer	Out of stock	£6.19 £5.16
32	2173	M10 Locknut	In stock	£0.38 £0.32
33	7282	Washer 10.8Id X 20.7Od X 2mm T	In stock	£0.34 £0.28
34	WE10872600	10mm Rod End	In stock	£22.08 £18.40
36	WE189513700	X.W Series 15mm Rose Joint Spa	Out of stock	£2.44 £2.03
37	WE01902300	Shcs M61 X 20 Drilled 306686	Out of stock	£0.38 £0.32
38	WE02941200	M6 X 20 Socket Button Head BZP	Out of stock	£0.96 £0.80
39	8984	Screw Hex Hd Din933 M10 X 30	In stock	£0.94 £0.78
40	WE18317400	Deck Height Pivot Boss	Out of stock	£9.74 £8.12
41	WE189511500	X.W Series Deck Front Pivot Sp	Out of stock	£3.78 £3.15
42	WE31328301	Deck Drive Pulley Spacer	Out of stock	£51.37 £42.81
44	WE20869502	5Internal Pulley.Keyway	In stock	£58.34 £48.62
45	WE228000500	Mulching Cutter Belt	Out of stock	£55.68 £46.40
46	WE20811500	PTO Jockey Pulley	In stock	£23.90 £19.92
47	WE18831600	Spacer Jockey Wheel	In stock	£32.98 £27.48
48	WE307187100	Belt Keeper	Out of stock	£14.53 £12.11
49	2182	M8X70mm Hex Bolt Zinc & Clear	Out of stock	£0.70 £0.58
50	WE08819900	Dome Washer 1.3.4Od X 3.8Id X	In stock	£9.86 £8.22
51	WE408020600	X Series Front Deck Bearing As	Out of stock	£126.38 £105.32
52	WE32731000	Belt Tension Plate 96	Out of stock	£63.96 £53.30
53	WE183012500	44 Mulch.Combi Jockey Plate Pi	Out of stock	£5.72 £4.77
54	WE25906200	Deck Tension Spring	In stock	£20.51 £17.09
55	WE189504800	10mm Actuator Pin	Out of stock	£4.78 £3.98
56	WE187189000	Ww Deck Lift Actuator Screw	Out of stock	£2.03 £1.69
58	WE188718900	Ww Actuator Attachment Body S&	In stock	Was £3.08 £2.57 Special Price £2.22 £1.85
59	WE189504400	E Sweeper Actuator Pin	Out of stock	£7.22 £6.02
60	WE08819800	Washer 5.16Id X 1Od Hd	In stock	£21.37 £17.81
61	WE189510800	X.W Series Caster Pivot Spacer	Out of stock	£2.06 £1.72
62	WE18341000	Rider Sintered Bush 16.64Lx15.	Out of stock	£6.32 £5.27
63	WE10900100	6002Rs Bearing	Out of stock	£8.41 £7.01
64	WE07823700	3mm L Type R Clip (Large)	Out of stock	£1.18 £0.98
65	WE028003200	M8 X 75mm Hex Bolt Zinc Plated Pa	Out of stock	£0.71 £0.59
66	WE028663400	M8 X 65mm Hex Head Bolt Zinc P	Out of stock	£0.96 £0.80
67	2202	1.8 X 1.2 Split Pin	Out of stock	£0.48 £0.40
68	WE301144900	36 Hgm Deck Shaft End Plate	Out of stock	£10.98 £9.15
69	WE209044600	Deck Idler Pulley C.W Bearing	In stock	£35.04 £29.20
70	2195	Rue Clip	In stock	£1.21 £1.01
72	WE30839000	X Series Adjustable Scalp Whee	Out of stock	£12.60 £10.50
73	WE31337600	Scuff Wheel Hub. Belt Guard Sp	In stock	£46.92 £39.10
74	WE30831500	Deck Bearing Housing Slinger 2	In stock	£12.17 £10.14
75	WE22949800	Cutter Belt	In stock	£40.64 £33.87
76	2148	Bolt M6 X 20mm (Vac) ( Af037	Out of stock	£0.28 £0.23
77	7735	Screw Hex Hd Din933 M8 X 20 G	In stock	£0.58 £0.48
78	WE08819500	Washer 5.16 T3 Lp Zinc Plated	Out of stock	£1.36 £1.13
79	WE25813801	Safety Switch Spring	In stock	£7.75 £6.46
80	WE301965700	L.H Deck Tongue Retainer Brack	Out of stock	£23.15 £19.29
81	WE301966000	R.H Deck Tongue Retainer Brack	Out of stock	£12.40 £10.33
82	WE301965800	Retainer Plate	Out of stock	£45.68 £38.07
83	WE301965900	X.W Series Deck 17mm Shaft Cla	Out of stock	£23.00 £19.17
