Countax X W Series Hgm Deck 36" - - 36 X W Series Hgm

Description

Countax HGM

X W SERIES HGM DECK 36" - Deck

From To -

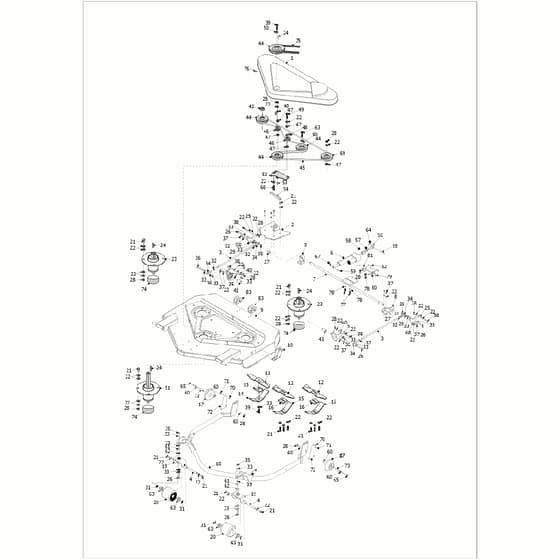

36 X W Series Hgm Parts Diagram

	Part No.	Details
1	WE148993100 Available to backorder	36 Ibs Plastic Dck Lid Cover	£126.00 £105.00
2	WE328963700 Available to backorder	X.W Series 36 Pickup Plate Wel	£85.44 £71.20
3	WE189507800 Available to backorder	X & W Series 36 Hgm Link Rod	£36.65 £30.54
4	WE189510900 Available to backorder	X.W Series Caster Axle	£51.08 £42.57
5	WE301981000 Available to backorder	Xw Series 36 Hgm Front Pivot P	£18.92 £15.77
6	WE449664100 Available to backorder	X Series Hiwin Actuator +	£370.54 £308.78
11	WE16000400 Available to backorder	15 R.H Hgm Blade	£26.28 £21.90
12	WE16000500 In stock	15 L.H Hgm Blade	£26.28 £21.90
13	WE16000700 Available to backorder	Hgm Blade Bracket	£21.14 £17.62
14	WE16000100 In stock	15 Blade Bridge	£26.84 £22.37
15	WE16000300 Available to backorder	Blade 3 Hole	£25.46 £21.22
16	WE301903500 Available to backorder	Deck Locking Tab Washer	£22.39 £18.66
17	WE149495800 In stock	Antiscalp Wheel-March 2000	£23.58 £19.65
19	WE328962200 Available to backorder	Deck Caster Bracket Welded Ass	£48.46 £40.38
20	WE148019400 Available to backorder	Front Deck Castor Wheels	£90.36 £75.30
21	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
22	WE089420400 Available to backorder	M8 Spring Washer Single Coil F	£0.67 £0.56
23	WE40503607 In stock	Bearing Housing Assy Short Sha	£119.30 £99.42
24	2191 In stock	Key 1.4 X 1 Rounded	£0.48 £0.40
25	WE189502700 Available to backorder	Spacer 12.7Od. 10.2 Id . 9mm L	£28.09 £23.41
26	WE018002300 Available to backorder	M10 X 50 Hex Head Bolt	£0.73 £0.61
27	WE31330002 Available to backorder	Roller Shaft Spacer	£21.96 £18.30
28	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
31	WE189511000 Available to backorder	X.W Series Caster Wheel Spacer	£7.66 £6.38
32	2173 In stock	M10 Locknut	£0.48 £0.40
33	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
34	WE10872600 In stock	10mm Rod End	£20.66 £17.22
36	WE189513700 Available to backorder	X.W Series 15mm Rose Joint Spa	£49.39 £41.16
37	WE01902300 Available to backorder	Shcs M61 X 20 Drilled 306686	£0.40 £0.33
38	WE02941200 Available to backorder	M6 X 20 Socket Button Head BZP	£1.00 £0.83
39	8984 In stock	Screw Hex Hd Din933 M10 X 30	£0.48 £0.40
40	WE18317400 Available to backorder	Deck Height Pivot Boss	£9.26 £7.72
41	WE189511500 Available to backorder	X.W Series Deck Front Pivot Sp	£3.91 £3.26
42	WE31328301 Available to backorder	Deck Drive Pulley Spacer	£48.80 £40.67
44	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
45	WE228000500 Available to backorder	Mulching Cutter Belt	£56.51 £47.09
46	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
47	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
48	WE307187100 Available to backorder	Belt Keeper	£17.66 £14.72
49	2182 In stock	M8X70mm Hex Bolt Zinc & Clear	£0.48 £0.40
50	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
51	WE408020600 Available to backorder	X Series Front Deck Bearing As	£126.12 £105.10
52	WE32731000 Available to backorder	Belt Tension Plate 96	£74.40 £62.00
53	WE183012500 Available to backorder	44 Mulch.Combi Jockey Plate Pi	£5.90 £4.92
54	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
55	WE189504800 Available to backorder	10mm Actuator Pin	£4.93 £4.11
56	WE187189000 Available to backorder	Ww Deck Lift Actuator Screw	£2.10 £1.75
58	WE188718900 In stock	Ww Actuator Attachment Body S&	Was £3.08 £2.57 Special Price £2.22 £1.85
59	WE189504400 Available to backorder	E Sweeper Actuator Pin	£7.48 £6.23
60	WE08819800 In stock	Washer 5.16Id X 1Od Hd	£21.10 £17.58
61	WE189510800 Available to backorder	X.W Series Caster Pivot Spacer	£2.14 £1.78
62	WE18341000 Available to backorder	Rider Sintered Bush 16.64Lx15.	£6.25 £5.21
63	WE10900100 Available to backorder	6002Rs Bearing	£8.70 £7.25
64	WE07823700 Available to backorder	3mm L Type R Clip (Large)	£1.21 £1.01
65	WE028003200 Available to backorder	M8 X 75mm Hex Bolt Zinc Plated Pa	£0.73 £0.61
66	WE028663400 Available to backorder	M8 X 65mm Hex Head Bolt Zinc P	£1.00 £0.83
67	2202 Available to backorder	1.8 X 1.2 Split Pin	£0.48 £0.40
68	WE301144900 Available to backorder	36 Hgm Deck Shaft End Plate	£11.36 £9.47
69	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£36.23 £30.19
70	2195 In stock	Rue Clip	£1.25 £1.04
72	WE30839000 Available to backorder	X Series Adjustable Scalp Whee	£13.03 £10.86
73	WE31337600 In stock	Scuff Wheel Hub. Belt Guard Sp	Was £46.94 £39.12 Special Price £32.86 £27.38
74	WE30831500 In stock	Deck Bearing Housing Slinger 2	£11.96 £9.97
75	WE22871200 In stock	Cutter Belt	£38.59 £32.16
76	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037	£0.48 £0.40
77	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
80	WE301965700 Available to backorder	L.H Deck Tongue Retainer Brack	£22.00 £18.33
81	WE301966000 Available to backorder	R.H Deck Tongue Retainer Brack	£12.40 £10.33
82	WE301965800 Available to backorder	Retainer Plate	£47.24 £39.37
83	WE301965900 Available to backorder	X.W Series Deck 17mm Shaft Cla	£23.80 £19.83
