Countax W Series Mulch Deck 44" - - 44 Mulch Deck

Name: Countax W Series Mulch Deck 44" - - 44 Mulch Deck
SKU: countax_deck_wseriesmulchdeck44_44-group
Price: 0.32 GBP
Availability: InStock

Part No. countax_deck_wseriesmulchdeck44_44-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax W Series Mulch Deck 44" - - 44 Mulch Deck

Description

Countax Mulch

W SERIES MULCH DECK 44" - Deck

From To -

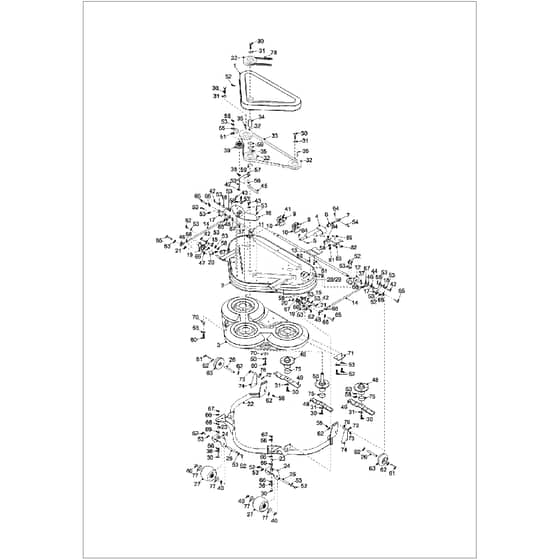

44 Mulch Deck Parts Diagram

	Part No.	Details
1	WE149546000 Available to backorder	X Series 44 Mulch Deck Lid Cov	£83.28 £69.40
3	WE148003900 Available to backorder	44 Mulcher Deck Liner	£294.96 £245.80
4	WE449664100 Available to backorder	X Series Hiwin Actuator +	£370.54 £308.78
5	WE189504400 Available to backorder	E Sweeper Actuator Pin	£7.48 £6.23
7	WE187189000 Available to backorder	Ww Deck Lift Actuator Screw	£2.10 £1.75
8	WE188718900 In stock	Ww Actuator Attachment Body S&	Was £3.08 £2.57 Special Price £2.22 £1.85
9	WE301965900 Available to backorder	X.W Series Deck 17mm Shaft Cla	£23.80 £19.83
10	WE307252800 Available to backorder	X.W Series Shaft Clamp 8mm Pac	£2.38 £1.98
11	WE30837100 Available to backorder	X & W Series RH Rear Bearing B	£33.77 £28.14
12	WE30837200 Available to backorder	X & W Series LH Rear Bearing B	£35.45 £29.54
14	WE189510700 Available to backorder	44 Mulch Link Rod	£34.28 £28.57
15	WE18317400 Available to backorder	Deck Height Pivot Boss	£9.26 £7.72
16	WE328963900 Available to backorder	X.W Series 44 Pickup Plate Wel	£37.14 £30.95
17	WE307250200 Available to backorder	38 . 44 Pivot Link Plate	£38.33 £31.94
18	WE189502700 Available to backorder	Spacer 12.7Od. 10.2 Id . 9mm L	£28.09 £23.41
19	WE301957000 Available to backorder	X.W Series 38 . 44.50Front Piv	£20.38 £16.98
20	WE189511500 Available to backorder	X.W Series Deck Front Pivot Sp	£3.91 £3.26
21	WE189513700 Available to backorder	X.W Series 15mm Rose Joint Spa	£49.39 £41.16
22	WE32955400 Available to backorder	X Series 44 Mulch Fr	£137.28 £114.40
23	WE189510800 Available to backorder	X.W Series Caster Pivot Spacer	£2.14 £1.78
24	WE328962200 Available to backorder	Deck Caster Bracket Welded Ass	£48.46 £40.38
25	WE189510900 Available to backorder	X.W Series Caster Axle	£51.08 £42.57
26	WE31337600 In stock	Scuff Wheel Hub. Belt Guard Spacer	Was £46.94 £39.12 Special Price £32.86 £27.38
27	WE148019400 Available to backorder	Front Deck Castor Wheels	£90.36 £75.30
30	8984 In stock	Screw Hex Hd Din933 M10 X 30	£0.48 £0.40
31	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
32	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
33	WE228000801 Available to backorder	Mulching Cutter Belt	£59.66 £49.72
34	WE31328301 Available to backorder	Deck Drive Pulley Spacer	£48.80 £40.67
35	2191 In stock	Key 1.4 X 1 Rounded	£0.48 £0.40
36	2539 In stock	M10 X 24 X 2 Tl Washer	£0.48 £0.40
37	WE31330002 Available to backorder	Roller Shaft Spacer	£21.96 £18.30
38	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
39	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
40	WE189511000 Available to backorder	X.W Series Caster Wheel Spacer	£7.66 £6.38
41	WE02941200 Available to backorder	M6 X 20 Socket Button Head BZP	£1.00 £0.83
42	WE02941000 Available to backorder	Shield Wdecals 98083	£0.68 £0.57
43	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
44	WE189505300 Available to backorder	10mm Rose Joint Spacer	£1.99 £1.66
45	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
46	WE10872600 In stock	10mm Rod End	£20.66 £17.22
47	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£1.00 £0.83
48	WE40503607 In stock	Bearing Housing Assy Short Sha	£119.30 £99.42
49	WE169381200 In stock	44 Mulch Blade	£32.88 £27.40
50	WE408020600 Available to backorder	X Series Front Deck Bearing As	£126.12 £105.10
51	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
52	WE01902300 Available to backorder	Shcs M61 X 20 Drilled 306686	£0.40 £0.33
53	WE089420400 Available to backorder	M8 Spring Washer Single Coil F	£0.67 £0.56
54	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
55	WE307187100 Available to backorder	Belt Keeper	£17.66 £14.72
57	WE328962400 Available to backorder	Reversed 38 Tension Plate Wel	£67.44 £56.20
59	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£51.43 £42.86
60	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
61	2182 In stock	M8X70mm Hex Bolt Zinc & Clear	£0.48 £0.40
62	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
63	WE149495800 In stock	Antiscalp Wheel-March 2000	£23.58 £19.65
64	2197 In stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
65	WE018002300 Available to backorder	M10 X 50 Hex Head Bolt	£0.73 £0.61
66	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
67	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
68	2173 In stock	M10 Locknut	£0.48 £0.40
69	WE18341000 Available to backorder	Rider Sintered Bush 16.64Lx15.	£6.25 £5.21
70	WE301127500 Available to backorder	38 Mulcher Side Fixing Liner B	£10.22 £8.52
71	WE301127400 Available to backorder	38 Mulcher Central Fixing Line	£8.52 £7.10
72	2195 In stock	Rue Clip	£1.25 £1.04
73	WE31338200 In stock	Deck Push Rod Pin	£24.84 £20.70
74	WE30839000 Available to backorder	X Series Adjustable Scalp Whee	£13.03 £10.86
75	WE30831500 In stock	Deck Bearing Housing Slinger 2	£11.96 £9.97
76	WE183025600 Available to backorder	C Series.Westwood Sweeper Ball	£27.25 £22.71
77	WE10900100 Available to backorder	6002Rs Bearing	£8.70 £7.25
78	WE22949900 Available to backorder	Cutter Belt	£50.17 £41.81
82	WE25813801 Available to backorder	Safety Switch Spring	£10.31 £8.59
83	WE301965700 Available to backorder	L.H Deck Tongue Retainer Brack	£22.00 £18.33
84	WE301966000 Available to backorder	R.H Deck Tongue Retainer Brack	£12.40 £10.33
85	WE301965800 Available to backorder	Retainer Plate	£47.24 £39.37
