Description

Countax S Series

S150 PGC - Power Grass Collector

From To -

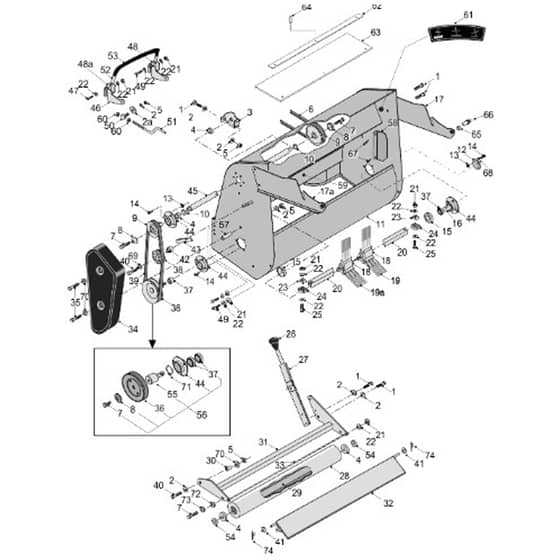

C350 S150 Pgc Parts Diagram

Ref. Img. Part No. Details
  1 Screw Hex Hd Din933 M8 X 20 G
Screw Hex Hd Din933 M8 X 20 G
7735 In stock
Screw Hex Hd Din933 M8 X 20 G
£0.58 £0.48

  2 Nylon Washer (2a)
Nylon Washer (2a)
8418 In stock
Nylon Washer (2a)
£1.26 £1.05

  2 Washer - M8 X 21 X 1.6
Washer - M8 X 21 X 1.6
2192 In stock
Washer - M8 X 21 X 1.6
£0.48 £0.40

  3 Zzc Series Idler Shaft Plate &
Zzc Series Idler Shaft Plate &
WE307025600 Out of stock
Zzc Series Idler Shaft Plate &
£62.64 £52.20

  4 Bearing (PTO Housing)
Bearing (PTO Housing)
WE10811600 In stock
Bearing (PTO Housing)
£16.94 £14.12

  5 M8 Nyloc Nut
M8 Nyloc Nut
2111 In stock
M8 Nyloc Nut
£0.28 £0.23

  6 Grass Collector Belt
Grass Collector Belt
WE228001200 In stock
Grass Collector Belt
£27.68 £23.07

  7 M10 X 25 S.Screw BZP
M10 X 25 S.Screw BZP
8420 In stock
M10 X 25 S.Screw BZP
£1.45 £1.21

  8 Dome Washer 1.3.4Od X 3.8Id X
Dome Washer 1.3.4Od X 3.8Id X
WE08819900 In stock
Dome Washer 1.3.4Od X 3.8Id X
£9.86 £8.22

  9 3 Pulley (Non Keyed)
3 Pulley (Non Keyed)
WE32727600 Out of stock
3 Pulley (Non Keyed)
£25.54 £21.28

  10 PTO End Spacer
PTO End Spacer
WE31306200 Out of stock
PTO End Spacer
£38.45 £32.04

  12 Sweeper Bearing Cap
Sweeper Bearing Cap
WE30117500 Out of stock
Sweeper Bearing Cap
£7.57 £6.31

  13 Nut
Nut
2047 In stock
Nut
£0.90 £0.75

  14 M5 X 16mm Pozi Pan
M5 X 16mm Pozi Pan
7274 In stock
M5 X 16mm Pozi Pan
£0.40 £0.33

  15 Slinger
Slinger
WE32121800 In stock
Slinger
£16.37 £13.64

  16 Brush Stock Spindle (Short)
Brush Stock Spindle (Short)
WE31323900 In stock
Brush Stock Spindle (Short)
£37.86 £31.55

  17 2008 Bag Ear Weld Assy
2008 Bag Ear Weld Assy
WE327845100 Out of stock
2008 Bag Ear Weld Assy
£58.80 £49.00

  17 2008 Bag Ear Weld Assy (17a)
2008 Bag Ear Weld Assy (17a)
WE327845200 Out of stock
2008 Bag Ear Weld Assy (17a)
£58.80 £49.00

  18 Bristle Boss
Bristle Boss
WE14833000 In stock
Bristle Boss
£2.11 £1.76

  19 Yellow Sweeper Bristles Non We (19a)
Yellow Sweeper Bristles Non We (19a)
WE14898101 In stock
Yellow Sweeper Bristles Non We (19a)
£1.48 £1.23

  19 Webbed Yellow PGC Bristle
Webbed Yellow PGC Bristle
WE14936301 In stock
Webbed Yellow PGC Bristle
£1.48 £1.23

  20 C330 & S130 Sweeper Brush Stoc
C330 & S130 Sweeper Brush Stoc
WE174503500 Out of stock
C330 & S130 Sweeper Brush Stoc
£99.01 £82.51

  21 Nut M6 Nyloc
Nut M6 Nyloc
7578 In stock
Nut M6 Nyloc
£0.29 £0.24

  22 M6 Washer 6 X 12.5 X 1.6mm BZP
M6 Washer 6 X 12.5 X 1.6mm BZP
2061 In stock
M6 Washer 6 X 12.5 X 1.6mm BZP
£0.64 £0.53

  23 Brush Drive Moulding Small
Brush Drive Moulding Small
WE14834100 In stock
Brush Drive Moulding Small
£4.64 £3.87

  24 Brush Drive Moulding Large
Brush Drive Moulding Large
WE14832900 In stock
Brush Drive Moulding Large
£4.43 £3.69

  25 M6 X 50 Bolt Hex Head BZP
M6 X 50 Bolt Hex Head BZP
2482 In stock
M6 X 50 Bolt Hex Head BZP
£0.48 £0.40

  27 Sweep Roller Height Handle Ass
Sweep Roller Height Handle Ass
WE327171800 Out of stock
Sweep Roller Height Handle Ass
£64.32 £53.60

  28 C330 Roller ( Mini )
C330 Roller ( Mini )
WE327845400 In stock
C330 Roller ( Mini )
£167.96 £139.97

  29 C130.S130 Sweeper Roller Inter
C130.S130 Sweeper Roller Inter
WE183838400 Out of stock
C130.S130 Sweeper Roller Inter
£28.43 £23.69

  30 A.C.D Sweeper 2000 Pivot Boss
A.C.D Sweeper 2000 Pivot Boss
WE183024300 Out of stock
A.C.D Sweeper 2000 Pivot Boss
£9.34 £7.78

  31 C130 & S130 Sweeper Roller Car
C130 & S130 Sweeper Roller Car
WE327845500 Out of stock
C130 & S130 Sweeper Roller Car
£79.52 £66.27

  32 C130.S130 Sweeper Flap Plate A
C130.S130 Sweeper Flap Plate A
WE327845300 Out of stock
C130.S130 Sweeper Flap Plate A
£67.16 £55.97

  33 Small Sweeper Roller Scraper C
Small Sweeper Roller Scraper C
WE52899200 Out of stock
Small Sweeper Roller Scraper C
£17.90 £14.92

  34 Belt Guard C & 20.5
Belt Guard C & 20.5
WE148005400 In stock
Belt Guard C & 20.5
£63.24 £52.70

  35 Bolt M8X65mm
Bolt M8X65mm
WE028662700 Out of stock
Bolt M8X65mm
£0.62 £0.52

  36 Pulley 5 Sweeper
Pulley 5 Sweeper
WE209044100 In stock
Pulley 5 Sweeper
£60.41 £50.34

  37 Bearing 6203Zz
Bearing 6203Zz
WE10845500 In stock
Bearing 6203Zz
£18.06 £15.05

  38 PTO Jockey Pulley
PTO Jockey Pulley
WE20811500 In stock
PTO Jockey Pulley
£23.90 £19.92

  39 Grass Collector Belt
Grass Collector Belt
WE22832800 Out of stock
Grass Collector Belt
£25.64 £21.37

  40 Bolt M8 X 50mm
Bolt M8 X 50mm
8416 In stock
Bolt M8 X 50mm
£2.56 £2.13

  41 Washer 5.16 T3 Lp Zinc Plated
Washer 5.16 T3 Lp Zinc Plated
WE08819500 Out of stock
Washer 5.16 T3 Lp Zinc Plated
£1.36 £1.13

  42 Sweeper Jockey Spacer
Sweeper Jockey Spacer
WE31350400 Out of stock
Sweeper Jockey Spacer
£14.09 £11.74

  43 Bearing Shield
Bearing Shield
WE30121900 Out of stock
Bearing Shield
£3.92 £3.27

  44 Bearing Housing 17mm
Bearing Housing 17mm
WE27106601 In stock
Bearing Housing 17mm
£31.15 £25.96

  45 C130.S130 Sweeper Idler Shaft
C130.S130 Sweeper Idler Shaft
WE183838500 Out of stock
C130.S130 Sweeper Idler Shaft
£43.44 £36.20

  46 Universal Sweeper Locking Plat
Universal Sweeper Locking Plat
WE307177800 Out of stock
Universal Sweeper Locking Plat
£44.05 £36.71

  47 M6X16mm Set Screw
M6X16mm Set Screw
2184 Out of stock
M6X16mm Set Screw
£1.74 £1.45

  48 L.H PGC Lever Lock
L.H PGC Lever Lock
WE30149800 Out of stock
L.H PGC Lever Lock
£12.01 £10.01

  48 R.H PGC Lever Lock (48a)
R.H PGC Lever Lock (48a)
WE30150300 Out of stock
R.H PGC Lever Lock (48a)
£12.23 £10.19

  49 Bolt M6 X 20mm (Vac) ( Af037
Bolt M6 X 20mm (Vac) ( Af037
2148 Out of stock
Bolt M6 X 20mm (Vac) ( Af037
£0.28 £0.23

  50 PGC Belt Tension Adjust Trunni
PGC Belt Tension Adjust Trunni
WE183003800 In stock
PGC Belt Tension Adjust Trunni
£9.84 £8.20

  52 2002 PGC Locking Handle
2002 PGC Locking Handle
WE178966300 Out of stock
2002 PGC Locking Handle
£60.46 £50.38

  53 Sweeper Black Grip 22Lx0.5Idx0
Sweeper Black Grip 22Lx0.5Idx0
WE149496600 Out of stock
Sweeper Black Grip 22Lx0.5Idx0
£21.37 £17.81

  54 Roller Shaft Spacer
Roller Shaft Spacer
WE31330002 In stock
Roller Shaft Spacer
£15.96 £13.30

  55 2002 Brush Stock Spindle Long
2002 Brush Stock Spindle Long
WE189497400 In stock
2002 Brush Stock Spindle Long
£24.36 £20.30

  57 Scuff Wheel Hub. Belt Guard Sp
Scuff Wheel Hub. Belt Guard Sp
WE31337600 In stock
Scuff Wheel Hub. Belt Guard Sp
£46.92 £39.10

  58 C Series Sweeper 2000 Side Pan
C Series Sweeper 2000 Side Pan
WE307030100 Out of stock
C Series Sweeper 2000 Side Pan
£8.53 £7.11

  61 Sweeper Height Decal 2003
Sweeper Height Decal 2003
WE35937601 Out of stock
Sweeper Height Decal 2003
£15.72 £13.10

  62 Sweeper & Combi Deck Flap Stri
Sweeper & Combi Deck Flap Stri
WE541113000 Out of stock
Sweeper & Combi Deck Flap Stri
£27.04 £22.53

  63 2050 PGC Sweeper Air Chute Rub
2050 PGC Sweeper Air Chute Rub
WE148005200 Out of stock
2050 PGC Sweeper Air Chute Rub
£16.67 £13.89

  64 Rivet 4.8 X 16mm Alloy Pop 103
Rivet 4.8 X 16mm Alloy Pop 103
WE12860100 Out of stock
Rivet 4.8 X 16mm Alloy Pop 103
£1.36 £1.13

  65 C Series.Westwood Sweeper Ball
C Series.Westwood Sweeper Ball
WE183025600 Out of stock
C Series.Westwood Sweeper Ball
£5.40 £4.50

  66 Q.R. Ball End Shaft
Q.R. Ball End Shaft
WE183010300 Out of stock
Q.R. Ball End Shaft
£6.23 £5.19

  67 Pop Rivet 4.8mm X 10mm
Pop Rivet 4.8mm X 10mm
WE12824400 Out of stock
Pop Rivet 4.8mm X 10mm
£1.36 £1.13

  69 Sweeper Jockey Cap
Sweeper Jockey Cap
WE31351100 Out of stock
Sweeper Jockey Cap
£29.33 £24.44

  70 Washer M8 X 25 X 3 Unplated
Washer M8 X 25 X 3 Unplated
8417 In stock
Washer M8 X 25 X 3 Unplated
£1.00 £0.83

  71 Circlip (PGC Pulley & Shaft)
Circlip (PGC Pulley & Shaft)
2112 Out of stock
Circlip (PGC Pulley & Shaft)
£0.60 £0.50

  72 Washer 10.8Id X 20.7Od X 2mm T
Washer 10.8Id X 20.7Od X 2mm T
7282 In stock
Washer 10.8Id X 20.7Od X 2mm T
£0.34 £0.28

  73 M10 Single Coil Spring Washer
M10 Single Coil Spring Washer
WE088002900 Out of stock
M10 Single Coil Spring Washer
£0.54 £0.45

  74 1.8 X 1.2 Split Pin
1.8 X 1.2 Split Pin
2202 Out of stock
1.8 X 1.2 Split Pin
£0.48 £0.40


Description

Countax S Series

S150 PGC - Power Grass Collector

From To -

C350 S150 Pgc Parts Diagram
