Countax Pgc - From 01-05-2017 - 04 Pgc Frame Lid And Net

Name: Countax Pgc - From 01-05-2017 - 04 Pgc Frame Lid And Net
SKU: countax_pgc_r116l_01052017_04-group
Price: 0.28 GBP
Availability: InStock

Part No. countax_pgc_r116l_01052017_04-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Pgc - From 01-05-2017 - 04 Pgc Frame Lid And Net

Description

Countax R116L

PGC - Power Grass Collector

From 01-05-2017

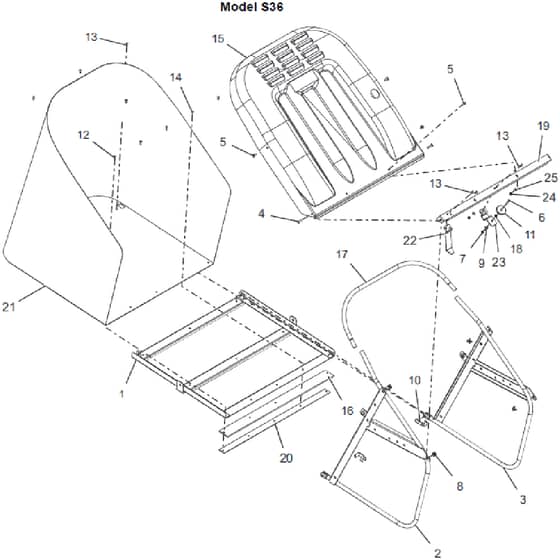

04 Pgc Frame Lid And Net Parts Diagram

	Part No.	Details
2	WE327812601 Available to backorder	C Series Net RH Side Frame Ass	£241.56 £201.30
3	WE327812701 Available to backorder	C Series Net LH Side Frame Ass	£271.32 £226.10
4	2115 Available to backorder	Flanged Button Head Bolt - V20	£0.48 £0.40
5	2035 In stock	M5 X 16mm Flang Butt Hd Sckt D	£0.48 £0.40
6	WE028004000 Available to backorder	M5 X 30mm Csk Socket Head Scre	£1.12 £0.93
7	2047 In stock	Nut	£0.34 £0.28
8	2144 Available to backorder	M5 Cage Nut 3mm Mat	£1.63 £1.36
9	2053 In stock	M5 Washer Form C O.D 12.5mm	£0.48 £0.40
10	WE108000500 Available to backorder	10mm Spring Pin Short	£5.75 £4.79
11	WE119072500 Available to backorder	Magnet Bonnet Catch	£13.76 £11.47
12	WE128000700 Available to backorder	4.8 X 20mm Pop Rivet	£1.00 £0.83
13	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.30 £1.08
14	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 103	£0.35 £0.29
16	WE148987400 Available to backorder	C330 Rubber PGC Mini	£29.53 £24.61
17	WE178975000 Available to backorder	Mini Net Back Tube	£60.78 £50.65
20	WE301201600 Available to backorder	C330 Mini PGC Rubber Strip	£15.26 £12.72
22	WE542003100 Available to backorder	French Guarding PGC Net Contac	£11.65 £9.71
23	WE549123000 Available to backorder	Brkt C-Ceries Net Magnet Mount	£21.14 £17.62
