Countax Pgc - From 01-04-2004 To 01-12-2006 - Electric A D K V Series He Pgc Net

Description

Countax K Series

PGC - Power Grass Collector

From 01-04-2004 To 01-12-2006

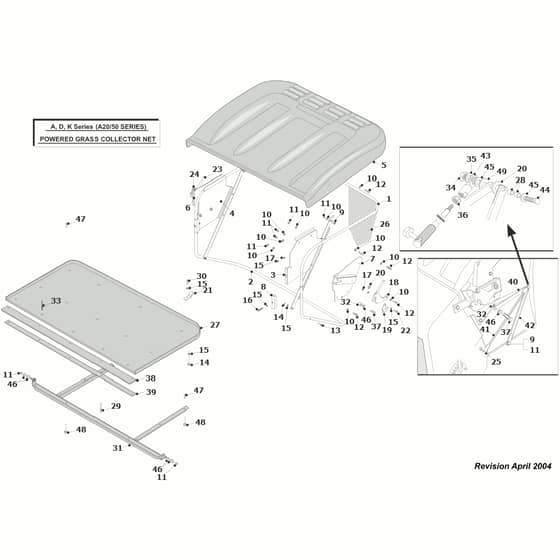

Electric A D K V Series He Pgc Net Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE178968501 Out of stock	2050 Upper Bag Frame 2004	£168.48 £140.40
2	WE178966600 Out of stock	2050 PGC Lower Frame Tube 2000	£118.44 £98.70
3	WE307242400 Out of stock	05 LH Goalpost	£79.70 £66.42
4	WE307193500 Out of stock	2003 2050 PGC RH Goalpost	£69.34 £57.78
5	WE148015501 Out of stock	A Series Plastic PGC Lid	£230.04 £191.70
6	WE328956500 Out of stock	2003 2050 PGC RH Bag Ear Welde	£52.42 £43.68
7	WE328956400 Out of stock	2003 2050 PGC LH Bag Ear Welde	£50.72 £42.27
8	WE30149600 Out of stock	PGC Bag Frame Clamping Plate	£12.01 £10.01
10	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£1.36 £1.13
11	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
12	WE028002900 Out of stock	Bolt M6X25 Plated	£0.58 £0.48
14	7578 In stock	Nut M6 Nyloc	£0.29 £0.24
15	2010 In stock	1.4 T4 Hp Washer	£0.35 £0.29
19	WE30149800 Out of stock	L.H PGC Lever Lock	£12.01 £10.01
20	8418 In stock	Nylon Washer	£1.26 £1.05
24	WE30150300 Out of stock	R.H PGC Lever Lock	£12.23 £10.19
25	WE183024900 Out of stock	Quick Release Ball Joint	£20.78 £17.32
26	WE388000202 Out of stock	A Series PGC Collector Net Oct	£178.92 £149.10
27	WE302015500 Out of stock	Galv Floor & Trim 03 20.50 PGC	£63.36 £52.80
28	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X	£10.21 £8.51
29	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
30	2148 Out of stock	Bolt M6 X 20mm (Vac) ( Af037	£0.28 £0.23
31	WE301058500 Out of stock	Tractor MK2 Collector Floor Support	£67.06 £55.88
32	WE31318800 Out of stock	Pivot Boss	£24.56 £20.47
33	WE12860100 Out of stock	Rivet 4.8 X 16mm Alloy Pop 103	£1.36 £1.13
34	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
35	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.34 £0.28
36	2173 In stock	M10 Locknut	£0.38 £0.32
37	WE02941000 Out of stock	Shield Wdecals 98083	£0.67 £0.56
38	WE148004400 Out of stock	20.50 PGC Rubber	£20.06 £16.72
39	WE301045400 Out of stock	20.50 PGC Rubber Fixing Strip	£23.78 £19.82
40	WE301122800 Out of stock	20.50 PGC Tipping Link Rod Upp	£24.41 £20.34
41	WE183010402 Out of stock	Adjuster Link Rod	£71.64 £59.70
42	WE292001200 Out of stock	A2050 PGC Long Link Arm	£23.30 £19.42
43	WE10872600 In stock	10mm Rod End	£22.08 £18.40
44	WE018005500 Out of stock	M10 X 45 Bolt BZP	£1.61 £1.34
46	WE183529500 Out of stock	C-Series Deck Lift Pivot Space	£7.22 £6.02
47	WE18000100 Out of stock	Bolt M5 X 20mm (Vac)	£0.58 £0.48
48	2047 In stock	Nut	£0.90 £0.75
