Countax Pgc - From 01-01-1993 To 01-01-1996 - Rider Pgc

Name: Countax Pgc - From 01-01-1993 To 01-01-1996 - Rider Pgc
SKU: countax_pgc_riderpgc_01011993_01011996_rid-group
Price: 0.28 GBP
Availability: InStock

Part No. countax_pgc_riderpgc_01011993_01011996_rid-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Pgc - From 01-01-1993 To 01-01-1996 - Rider Pgc

Description

Countax RIDER

PGC - Power Grass Collector

From 01-01-1993 To 01-01-1996

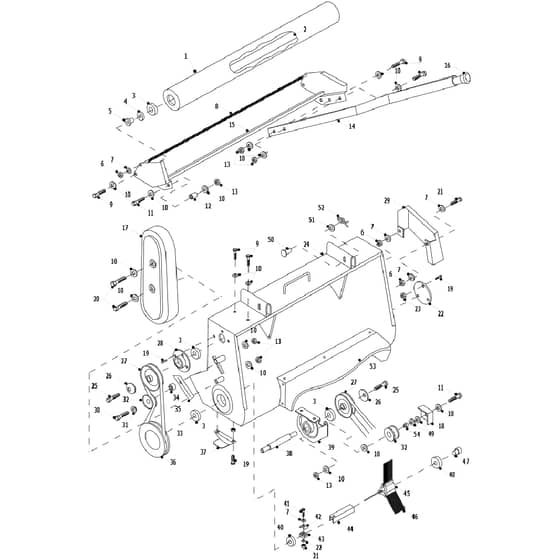

Rider Pgc Parts Diagram

	Part No.	Details
1	WE32704600 Available to backorder	Roller Complete ( K & W )	£189.72 £158.10
2	WE31300800 Available to backorder	Roller Shaft (Internal)K-Serie	£73.68 £61.40
3	WE10845500 In stock	Bearing 6203Zz	£14.17 £11.81
4	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
5	WE31350700 Available to backorder	Roller Shaft Bush	£19.54 £16.28
6	2185 Available to backorder	Nyloc Nut1.4UNF	£0.48 £0.40
7	2010 Available to backorder	1.4 T4 Hp Washer	£0.48 £0.40
8	WE52830900 Available to backorder	Cable Scraper Complete With Ad	£27.95 £23.29
9	2141 In stock	Set Screw	£0.38 £0.32
11	WE01820700 Available to backorder	Bolt 5.16UNF X 1.1.2 HT Z.P	£0.54 £0.45
12	WE31350600 Available to backorder	Roller Plate Bush	£4.49 £3.74
13	2094 In stock	Nyloc Nut 5.16 UNF	£0.48 £0.40
16	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
17	WE14880200 Available to backorder	Rider Sweeper Pulley Cover (Va	£54.28 £45.23
19	WE02821800 Available to backorder	Frame Weldment Cl125 520025H	£0.48 £0.40
20	2029 In stock	Bolt 5.16UNF X 2.1.2 HT Z.P	£0.91 £0.76
21	2106 In stock	Set Screw	£0.48 £0.40
22	WE30117500 Available to backorder	Sweeper Bearing Cap	£7.20 £6.00
23	2047 In stock	Nut	£0.34 £0.28
25	2189 Available to backorder	Bolt 3.8 X 3.4 HT	£0.94 £0.78
26	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
27	WE20870800 Available to backorder	3 Pulley (Capitol)	£70.68 £58.90
28	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
30	2186 Available to backorder	Bolt 5.16UNF X 2 Zinc.Clear Un	£1.08 £0.90
31	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
32	WE20880800 Available to backorder	F1875 X0750 Plastic Pulley	£60.24 £50.20
33	WE22879900 Available to backorder	Grass Collector Belt	£27.91 £23.26
34	WE31350400 Available to backorder	Sweeper Jockey Spacer	£13.39 £11.16
38	WE18309800 Available to backorder	Rider Sweeper Idler Shaft	£23.45 £19.54
40	WE32121800 In stock	Slinger	£16.93 £14.11
41	WE01832400 Available to backorder	Bolt 1.4 X 1 3.4	£1.44 £1.20
42	WE14834100 In stock	Brush Drive Moulding Small	£4.57 £3.81
43	WE14832900 In stock	Brush Drive Moulding Large	£4.60 £3.83
44	WE17404300 Available to backorder	Rider Brush Stock	£62.88 £52.40
45	WE14833000 In stock	Bristle Boss	£2.20 £1.83

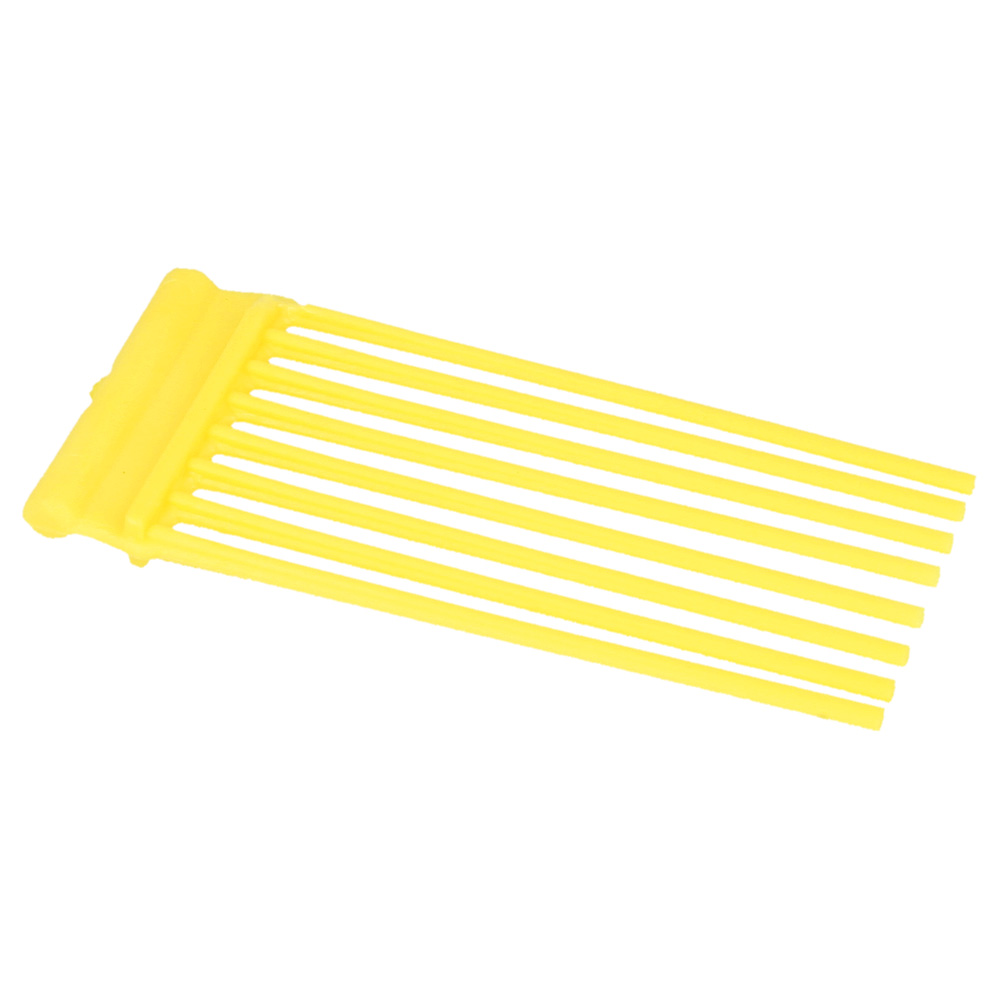

46	WE14879700 In stock	Rider Sweeper Bristle	£1.09 £0.91
50	WE31336800 In stock	Deck Lift Pin (Front)	£38.65 £32.21
51	2114 In stock	Washer - M12 X 24 X 1.6	£0.48 £0.40
52	2195 In stock	Rue Clip	£1.25 £1.04
53	WE14914700 Available to backorder	Rider PGC Rubber Flap	£19.96 £16.63
54	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
