Countax Mulch Deck 38" - From 01-01-1997 To 01-01-1998 - 38 Mulch Deck

Description

Countax Mulch

MULCH DECK 38" - Deck

From 01-01-1997 To 01-01-1998

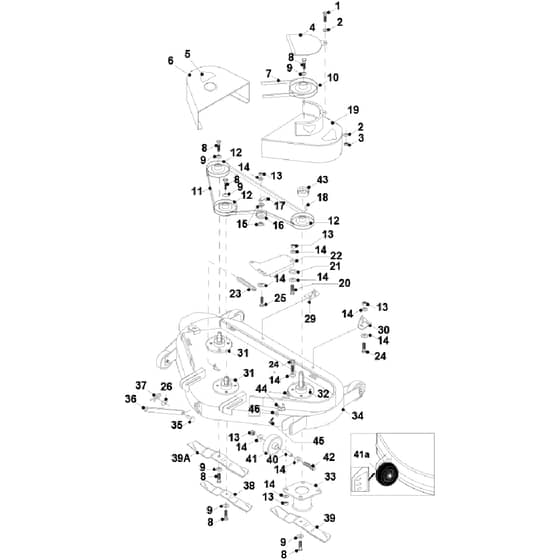

38 Mulch Deck Parts Diagram

	Part No.	Details
1	2106 In stock	Set Screw	£0.48 £0.40
2	2010 Available to backorder	1.4 T4 Hp Washer	£0.48 £0.40
3	2185 Available to backorder	Nyloc Nut1.4UNF	£0.48 £0.40
4	WE149497400 Available to backorder	Universal Deck Pulley Cover 20	£18.74 £15.62
5	WE35803300 Available to backorder	Rider Deck Danger Decal	£8.52 £7.10
6	WE40835800 Available to backorder	PTO Bearing Housing MK3 Comp.	£279.96 £233.30
7	WE22949800 In stock	Cutter Belt	£39.89 £33.24
8	8419 In stock	Bolt 3.8 X 1 1.4 UNF	£0.72 £0.60
9	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
10	WE20870202 Available to backorder	7 Deck Drive Pulley	£87.84 £73.20
11	WE22100000 Available to backorder	Belt	£51.94 £43.28
12	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
13	2094 In stock	Nyloc Nut 5.16 UNF	£0.48 £0.40
14	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
15	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
16	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
17	WE307187100 Available to backorder	Belt Keeper	£17.66 £14.72
18	2191 In stock	Key 1.4 X 1 Rounded	£0.48 £0.40
20	WE01820700 Available to backorder	Bolt 5.16UNF X 1.1.2 HT Z.P	£0.54 £0.45
21	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£51.43 £42.86
22	WE32734600 Available to backorder	Mulch Deck Belt Tension Plate	£37.72 £31.43
23	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
24	2146 In stock	Set Screw	£0.50 £0.42
25	2188 In stock	Bolt 5.16 UNF X 1 3.4 BZP	£0.71 £0.59
26	2110 In stock	Washer 3.8 T3 Z.P	£0.48 £0.40
29	WE30121300 In stock	Rear Deck Hanging Bracket R.H	£21.64 £18.03
30	WE30121400 Available to backorder	Rear Deck Hanger Bracket L.H	£21.64 £18.03
31	WE40503607 In stock	Bearing Housing Assy Short Sha	£119.30 £99.42
32	WE40503507 In stock	Deck Bearing Housing Assy Long	£128.50 £107.08
34	WE327000101 Available to backorder	2002 Mulch 38 Deck Shell	£338.16 £281.80
35	WE31338200 In stock	Deck Push Rod Pin	£24.84 £20.70
37	2195 In stock	Rue Clip	£1.25 £1.04
39	WE16937900 In stock	15 L.H Mul Blade	£31.20 £26.00
40	WE31337600 In stock	Scuff Wheel Hub. Belt Guard Sp	Was £46.94 £39.12 Special Price £32.86 £27.38
41	WE19905500 In stock	Anti Scalp Wheel 1.2 Bore (Box	£16.61 £13.84
41	WE149495800 In stock	Antiscalp Wheel-March 2000 (41a)	£23.58 £19.65
42	WE01821200 In stock	Bolt 5.16 X 2.3.4	£1.21 £1.01
43	WE31328301 Available to backorder	Deck Drive Pulley Spacer	£48.80 £40.67
44	8905 In stock	Bolt M5 X 20mm	£0.48 £0.40
45	2144 Available to backorder	M5 Cage Nut 3mm Mat	£1.63 £1.36
