Countax K62 - - 01 Transmission

Name: Countax K62 - - 01 Transmission
SKU: countax_deck_k62_01-group
Price: 0.56 GBP
Availability: InStock

Part No. countax_deck_k62_01-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Countax TUFF TORQ

K62 - Transaxle

From To -

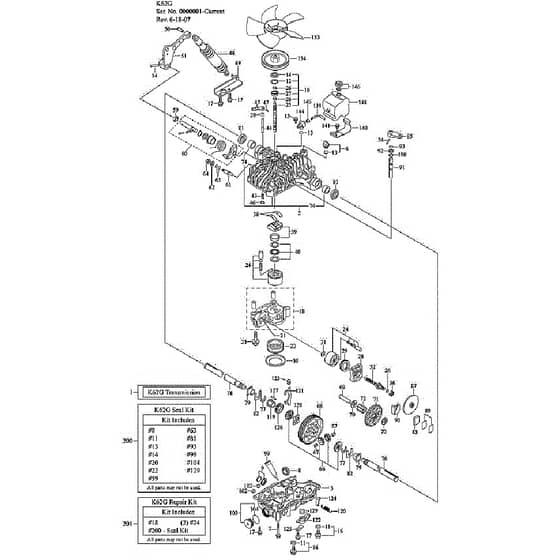

01 Transmission Parts Diagram

	Part No.	Details
3	WE1A632084500 Available to backorder	Lower Case	£202.32 £168.60
6	WE19485524290 Available to backorder	Oil Cap 20	£18.34 £15.28
7	WE19215424310 Available to backorder	Cap Screw 8*75	£1.33 £1.11
8	TT1A632024320 Available to backorder	Filter	£21.12 £17.60
9	TT19216324350 Available to backorder	Tuff Torq Part	£16.92 £14.10

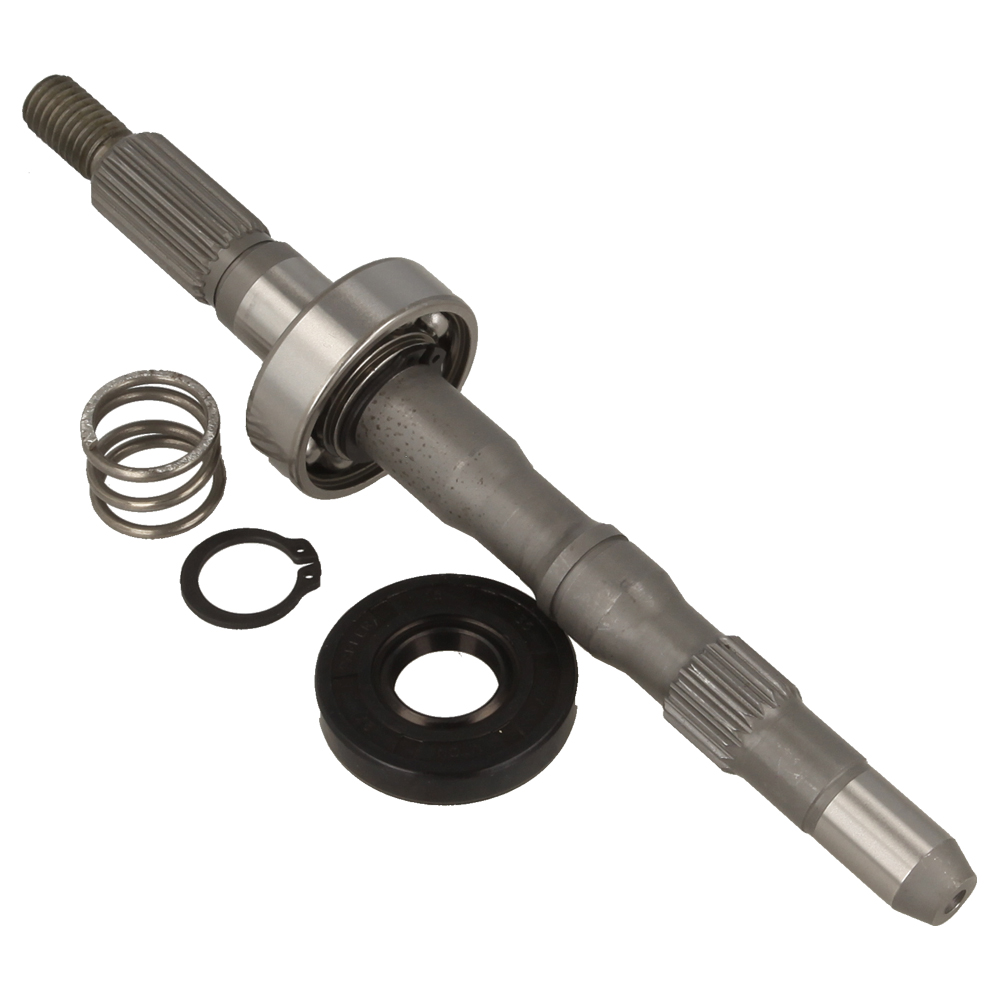

10	TT1A632099200 Available to backorder	Pump Shaftbearing Kit	£65.64 £54.70
12	TT22252000350 Available to backorder	Snap Ring C 35	£4.68 £3.90
13	WE24311000180 Available to backorder	Oring P18	£2.40 £2.00
14	TT187T0134380 In stock	Seal	£4.73 £3.94
17	WE26476080302 Available to backorder	Tapping Screw 8 * 30	£2.39 £1.99
18	WE1A632024500 Available to backorder	Center Case A	£208.68 £173.90
20	WE24311240100 Available to backorder	0Ring 1A P10A	£3.71 £3.09
21	WE19216824760 Available to backorder	Pin 3 * 9.8	£0.67 £0.56
22	WE19215488211 Available to backorder	Filter	£90.04 £75.03
24	WE19216825210 Available to backorder	Cylinder Block Kit	£210.72 £175.60
26	TT19215425310 Available to backorder	Snap Ring S15	£4.68 £3.90
27	TT1A646034790 Available to backorder	Bearing 6202-C-C3	£15.12 £12.60
29	WE19215424240 Available to backorder	Thrust Bearing	£61.84 £51.53
31	WE19216825230 Available to backorder	Washer 12 * 24 * 1	£0.88 £0.73
32	WE1A632085280 Available to backorder	Motor Shaft	£119.52 £99.60
43	WE19215427281 Available to backorder	Tt Spring 25	£1.31 £1.09
44	WE1A632029510 Available to backorder	Release Shaft	£25.13 £20.94
45	TT1A632029520 In stock	Bypass Lever	£6.48 £5.40
46	WE22242000100 Available to backorder	Tt Snap Ring 10	£0.98 £0.82
47	WE22351030020 Available to backorder	Spring Pin 3.0A * 20	£0.88 £0.73
48	TT19215489150 Available to backorder	Shock Absorber K65	£133.08 £110.90
50	WE1A632029640 Available to backorder	Pin	£11.21 £9.34
54	WE22351060040 Available to backorder	Roll Pin 6 * 40	£6.80 £5.67
60	TT168T2024250 In stock	Vent Valve	£16.66 £13.88
62	WE22137120000 Available to backorder	Tt Washer 12	£2.29 £1.91
63	WE24311000140 Available to backorder	Tt Packing	£1.55 £1.29
64	WE26776120002 Available to backorder	Nut 12	£1.46 £1.22
66	WE1A632081510 Available to backorder	Differential Gear Kit	£84.96 £70.80
68	WE1A632083540 Available to backorder	Final Gear	£193.32 £161.10
69	WE1A632033410 Available to backorder	Final Pinion Shaft	£15.11 £12.59
70	WE1A632033420 Available to backorder	Tt Washer	£2.77 £2.31
72	WE1A632083560 Available to backorder	Tt Final Pinion	£17.22 £14.35

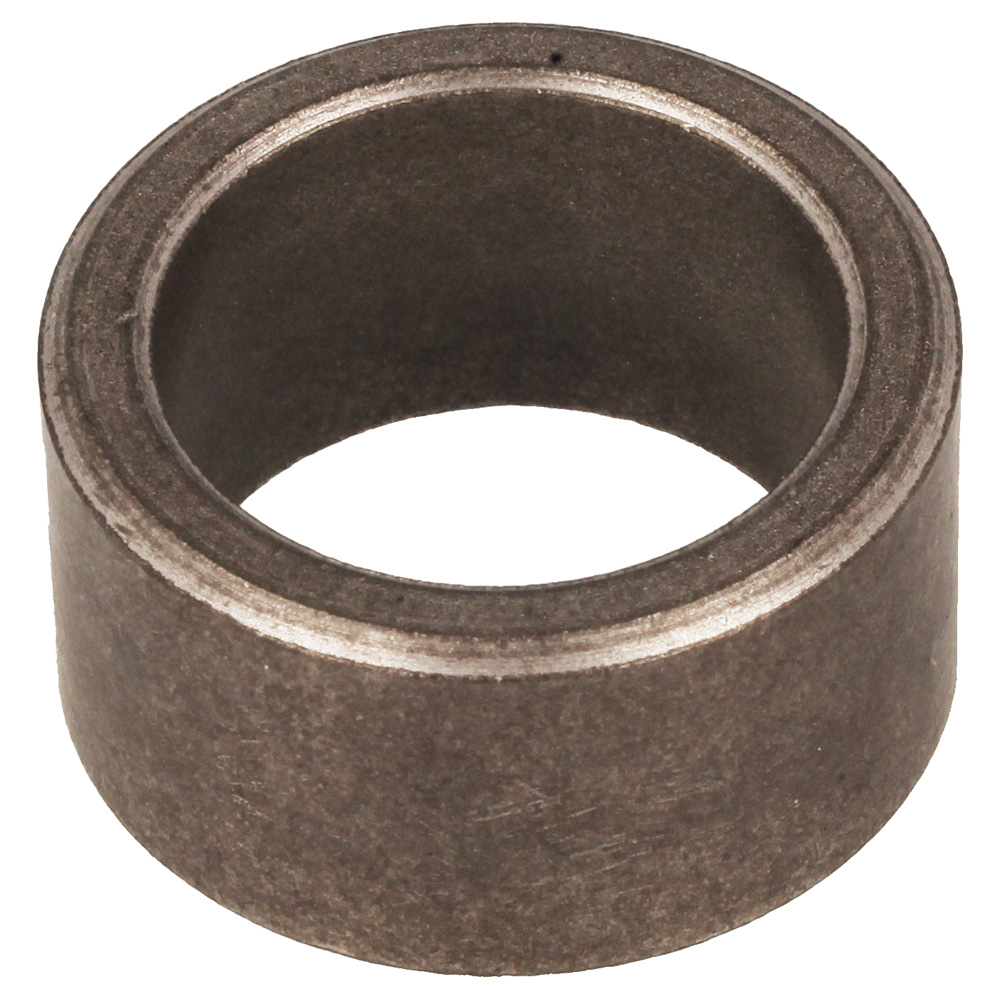

74	WE19215434240 Available to backorder	Bushing 25.4	£7.68 £6.40
77	TT19216734160 Available to backorder	Retaining Ring 23	£4.20 £3.50
79	WE19216734240 Available to backorder	Bushing	£7.92 £6.60
82	TT1A632034290 Available to backorder	Tuff Torq Thrust Washer	£7.08 £5.90
85	WE1A632029870 Available to backorder	K62 Brake Arm	£43.61 £36.34
87	WE1A632036110 Available to backorder	Brake Disc	£25.69 £21.41
88	WE1A632036120 Available to backorder	Brake Shoe	£6.35 £5.29
89	WE1A632036170 Available to backorder	Shim Kit	£2.66 £2.22
90	WE1A632036201 Available to backorder	Brake Actuator	£9.24 £7.70
91	WE1A632036160 Available to backorder	Brake Shaft	£41.06 £34.22
92	WE1A632036190 Available to backorder	Washer	£6.08 £5.07
93	WE24311000120 Available to backorder	Oring 1A P12	£1.39 £1.16
100	WE22242000160 Available to backorder	Snap Ring	£1.00 £0.83
102	WE1A637024350 Available to backorder	Plug 20	£15.04 £12.53
103	TT1A637024380 Available to backorder	Cap 40	£6.96 £5.80
119	WE1A632084271 Available to backorder	K62 Collar	£17.71 £14.76
121	WE1A632087120 Available to backorder	Differential Lock Fork	£40.85 £34.04
122	WE1A632087151 Available to backorder	Differential Lock Arm	£59.88 £49.90
127	WE1A632087220 Available to backorder	Differential Lock Pin 7mm	£13.15 £10.96
128	WE1A632087230 Available to backorder	K62 Shaft Plate	£33.10 £27.58
129	WE24321000250 Available to backorder	0Ring 1A G25	£7.00 £5.83
139	WE1A632084940 Available to backorder	Pipe	£14.65 £12.21
140	WE1A632084951 Available to backorder	Tank Bracket	£13.87 £11.56

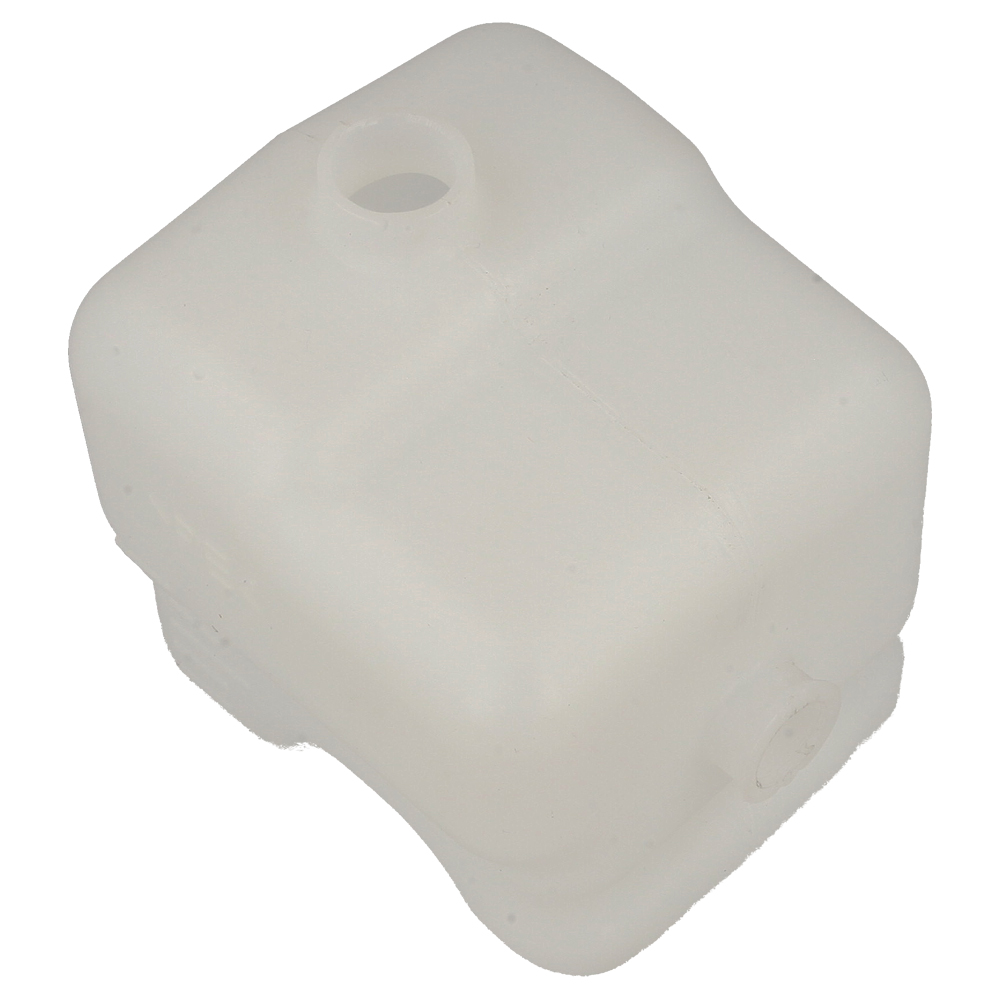

148	TT1A632084930 Available to backorder	Reservoir Tank	£31.50 £26.25
200	WE1A632099300 Available to backorder	Tuff Torq Part	£115.20 £96.00
