Countax K61 - - 01 Transmission

Name: Countax K61 - - 01 Transmission
SKU: countax_deck_k61_01-group
Price: 0.33 GBP
Availability: InStock

Part No. countax_deck_k61_01-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Countax TUFF TORQ

K61 - Transaxle

From To -

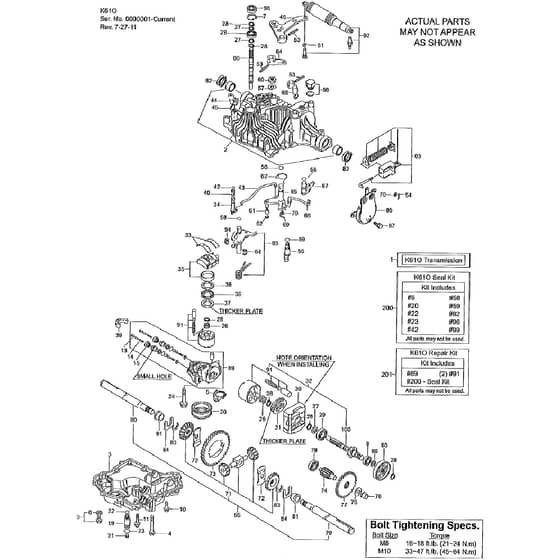

01 Transmission Parts Diagram

	Part No.	Details
6	TT22190080000 Available to backorder	Seal Washer 8	£4.20 £3.50
7	TT22252000350 Available to backorder	Snap Ring C 35	£4.68 £3.90
10	WE26476080302 Available to backorder	Tapping Screw 8 * 30	£2.39 £1.99
20	WE19215424970 Available to backorder	Tt Filter K61	£90.04 £75.03
21	WE23871010000 Available to backorder	Tuff Torq Plug	£2.39 £1.99
25	WE19215425020 Available to backorder	Pump Shaftcyb Kit	£199.92 £166.60
28	TT19215425310 Available to backorder	Snap Ring S15	£4.68 £3.90

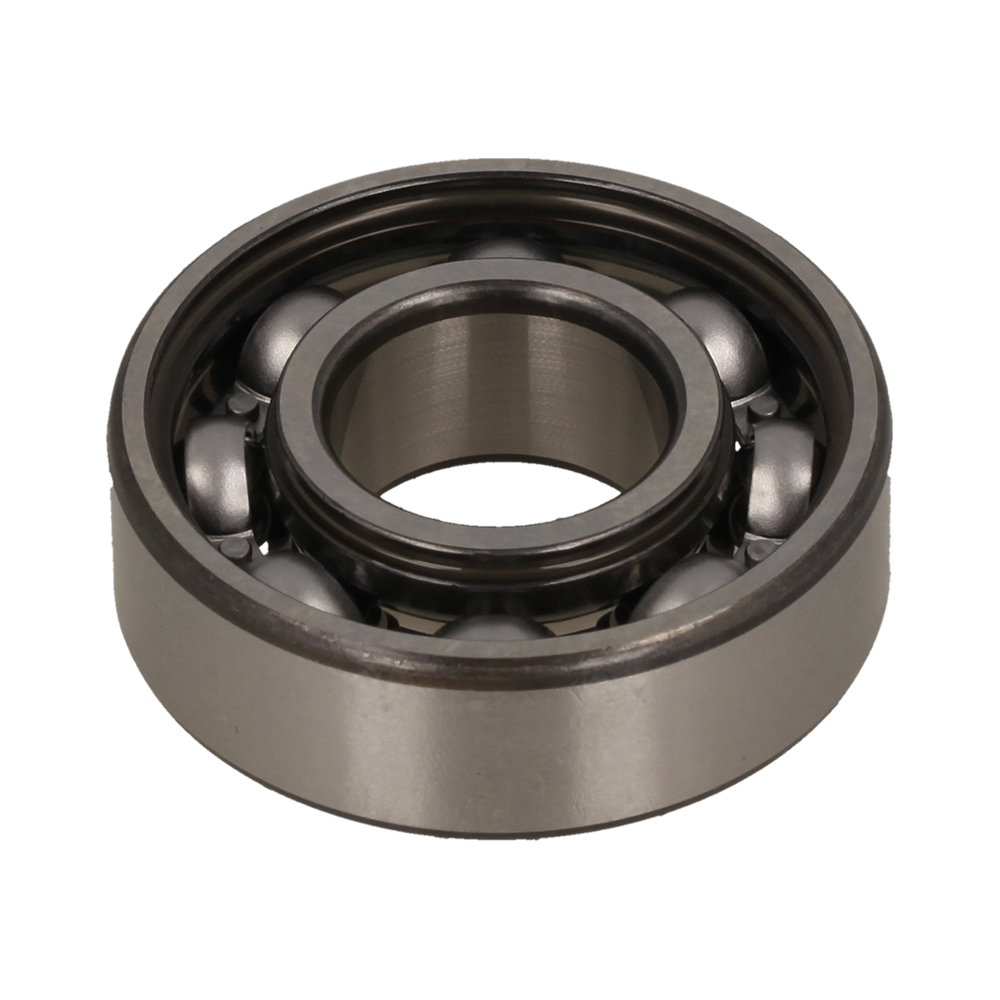

29	TT1A646034790 Available to backorder	Bearing 6202-C-C3	£15.12 £12.60
30	WE19215424212 Available to backorder	Housing	£66.24 £55.20
31	WE19215424240 Available to backorder	Thrust Bearing	£61.84 £51.53
40	WE19215427281 Available to backorder	Tt Spring 25	£1.31 £1.09
44	WE19215429521 Available to backorder	Bypass Lever	£11.40 £9.50
45	WE22351040025 Available to backorder	Tuff Torq Pin 4.0A- 25	£0.40 £0.33
46	WE19215429571 Available to backorder	K61 Height Control Arm	£63.12 £52.60
53	WE22351060040 Available to backorder	Roll Pin 6 * 40	£6.80 £5.67
55	WE19215429702 Available to backorder	Tuff Torq Fulcrum 10	£45.71 £38.09
57	WE22137120000 Available to backorder	Tt Washer 12	£2.29 £1.91
60	WE26776120002 Available to backorder	Nut 12	£1.46 £1.22
64	WE19215429870 Available to backorder	Brake Lever	£41.78 £34.82
70	WE22137060000 Available to backorder	Washer 6 Polished	£0.91 £0.76
71	WE19216331501 Available to backorder	Differential Gear Kit	£282.60 £235.50
73	WE19215433520 Available to backorder	Final Gear (55T)	£68.52 £57.10
74	WE19215433410 Available to backorder	Final Pinion Shaft	£133.20 £111.00
76	WE19215433430 Available to backorder	Bushing 15	£4.37 £3.64
79	WE19215484132 Available to backorder	Axle Shaft Left	£121.08 £100.90
80	WE19215484232 Available to backorder	Axle Shaft Right	£139.20 £116.00
81	WE19215434250 Available to backorder	Bushing 22	£5.86 £4.88
83	WE19215434290 Available to backorder	Tuff Torq Ring	£2.18 £1.82
84	WE19215434311 Available to backorder	Tuff Torq Thrust Washer	£5.84 £4.87
89	WE19215424521 Available to backorder	K61 Centre Case Cpmp Assy	£259.56 £216.30
90	WE19215425261 Available to backorder	Pump Shaft	£74.88 £62.40
91	WE168T2025080 Available to backorder	Tt Cylinder Block Kit	£158.52 £132.10
94	WE19215427321 Available to backorder	Tt Shift Block Set	£21.94 £18.28
99	TT22272000120 Available to backorder	Ering 12	£4.56 £3.80
100	WE19215485272 Available to backorder	Motor Shaft (11T)	£118.80 £99.00
200	WE19215499151 Available to backorder	Tt Seal Kit	£84.84 £70.70
