Description

Countax TUFF TORQ

K574C - Transaxle

From To -

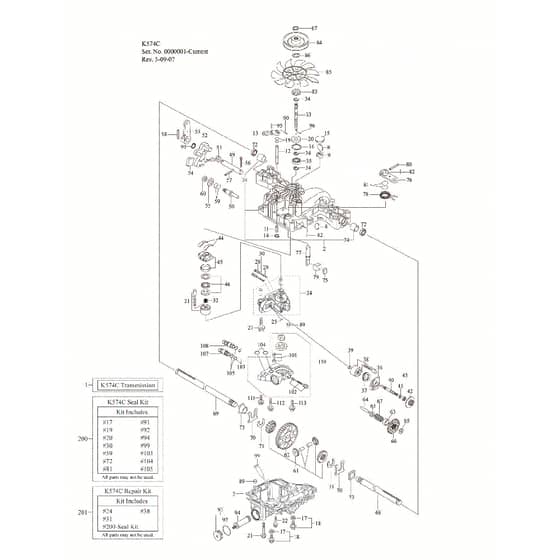

01 Transmission Parts Diagram

Ref. Img. Part No. Details
  1 Hydrotx - K574C 2-Port 4Trac TT787Q0324030
Hydrotx - K574C 2-Port 4Trac
Out of stock
£2,479.54 £2,066.28

  2 K574J Upper Case WE1A646084001
K574J Upper Case
Out of stock
£84.30 £70.25

  3 Housing Kit 2 Port WE187Q0399200
Housing Kit 2 Port
Out of stock
£544.60 £453.83

  6 Cobra Clamp WE1A646024120
Cobra Clamp
Out of stock
£7.37 £6.14

  8 Magnet WE19216324360
Magnet
Out of stock
£7.04 £5.87

  9 Magnet Holder WE1A646029000
Magnet Holder
Out of stock
£1.90 £1.58

  11 Tt Spring 25 WE19215427281
Tt Spring 25
Out of stock
£1.26 £1.05

  14 Tt Snap Ring 10 WE22242000100
Tt Snap Ring 10
Out of stock
£0.96 £0.80

  15 Sealing Cap WE187T0136300
Sealing Cap
In stock
£7.88 £6.57

  16 Snap Ring C 35 WE22252000350
Snap Ring C 35
Out of stock
£2.14 £1.78

  17 Seal Washer 8 WE22190080000
Seal Washer 8
Out of stock
£6.47 £5.39

  18 Tt Drain Bolt 8 12 WE168T2010010
Tt Drain Bolt 8 12
Out of stock
£1.43 £1.19

  19 0Ring 1A P10A WE24311240100
0Ring 1A P10A
Out of stock
£3.59 £2.99

  20 Seal WE187T0134380
Seal
Out of stock
£7.60 £6.33

  21 Bolt M8 X 55 Plated WE26106080552
Bolt M8 X 55 Plated
Out of stock
£2.72 £2.27

  22 Tapping Screw 8 * 30 WE26476080302
Tapping Screw 8 * 30
Out of stock
£2.30 £1.92

  24 Center Case Complete J WE187Q0334501
Center Case Complete J
Out of stock
£366.32 £305.27

  25 Pin 3 * 9.8 WE19216824760
Pin 3 * 9.8
Out of stock
£0.71 £0.59

  27 Tt Bolt 10*75 WE26106100752
Tt Bolt 10*75
Out of stock
£2.56 £2.13

  28 Ids Valve WE1A646024752
Ids Valve
Out of stock
£7.76 £6.47

  29 Ids Spring (Filter Type 17.1) WE1A646024761
Ids Spring (Filter Type 17.1)
Out of stock
£2.11 £1.76

  30 Ids Filter 300 WE1A646024790
Ids Filter 300
Out of stock
£7.12 £5.93

  31 Cylinder Block (Pump) Kit WE19216825111
Cylinder Block (Pump) Kit
Out of stock
£158.54 £132.12

  32 Spring WE1A646025200
Spring
Out of stock
£2.45 £2.04

  33 Pump Shaft L WE187Q0388880
Pump Shaft L
Out of stock
£83.76 £69.80

  35 Bearing 6202-C-C3 WE1A646034790
Bearing 6202-C-C3
Out of stock
£15.30 £12.75

  36 Motor Housing WE187Q0324810
Motor Housing
Out of stock
£23.03 £19.19

  37 Thrust (Ball) Bearing WE187K0099750
Thrust (Ball) Bearing
Out of stock
£76.08 £63.40

  38 Tt Cylinder Block Ki WE187Q0025140
Tt Cylinder Block Ki
Out of stock
£204.00 £170.00

  39 Washer 12 * 24 * 1 WE19216825230
Washer 12 * 24 * 1
Out of stock
£0.85 £0.71

  40 Motor Shaft WE1A646025271
Motor Shaft
Out of stock
£73.10 £60.92

  41 Snap Ring S15 WE19215425310
Snap Ring S15
Out of stock
£1.14 £0.95

  43 Tt Bearing WE1A646034760
Tt Bearing
Out of stock
£13.52 £11.27

  44 Thrust Metal WE19216327051
Thrust Metal
Out of stock
£18.10 £15.08

  45 Tt Swash Plate WE168T2084530
Tt Swash Plate
Out of stock
£130.58 £108.82

  46 Thrust Bearing K81105 WE19216327160
Thrust Bearing K81105
Out of stock
£40.28 £33.57

  49 Tt Control Shaft WE1A646029911
Tt Control Shaft
Out of stock
£15.95 £13.29

  50 Tt Fulcrum WE168T2029920
Tt Fulcrum
Out of stock
£25.86 £21.55

  52 Tt Control Arm A WE168T2029740
Tt Control Arm A
Out of stock
£44.96 £37.47

  54 Tt Jerky Plate WE168T2029350
Tt Jerky Plate
Out of stock
£6.32 £5.27

  55 Tt Washer 12 WE22137120000
Tt Washer 12
Out of stock
£2.22 £1.85

  56 Cotter Pin 1.8*3.4 WE1A646029940
Cotter Pin 1.8*3.4
Out of stock
£1.82 £1.52

  57 Tt Spring Pin 6*36 WE22351060036
Tt Spring Pin 6*36
Out of stock
£0.96 £0.80

  58 Roll Pin 6 * 40 WE22351060040
Roll Pin 6 * 40
Out of stock
£6.76 £5.63

  59 Tt Packing WE24311000140
Tt Packing
Out of stock
£1.50 £1.25

  60 Nut 12 WE26776120002
Nut 12
Out of stock
£1.42 £1.18

  61 Differential Gear Kit WE1A646031570
Differential Gear Kit
Out of stock
£65.60 £54.67

  62 Final Gear WE1A646033520
Final Gear
Out of stock
£106.20 £88.50

  63 Final Pinion Collar WE1A646033250
Final Pinion Collar
Out of stock
£6.29 £5.24

  64 Tt Reduction Shaft WE1A646033410
Tt Reduction Shaft
Out of stock
£11.00 £9.17

  65 Washer 12 * 32 * 3.2 WE19216833420
Washer 12 * 32 * 3.2
Out of stock
£2.14 £1.78

  67 Pinion Gear Set WE168T2033540
Pinion Gear Set
Out of stock
£28.36 £23.63

  68 Axle Shaft Left TT1A646034111S
Axle Shaft Left
In stock
£65.74 £54.78

  69 Axle Shaft Right WE1A646034121
Axle Shaft Right
In stock
£80.09 £66.74

  70 Thrust Washer WE19216334261
Thrust Washer
Out of stock
£20.58 £17.15

  71 Ring 17 WE19216834270
Ring 17
Out of stock
£2.12 £1.77

  72 Oilseal TT187T0134280
Oilseal
In stock
£10.78 £8.98

  73 Bushing 19 * 25 WE19216834350
Bushing 19 * 25
Out of stock
£3.23 £2.69

  74 Bushing 19.05 WE1A646034500
Bushing 19.05
Out of stock
£6.62 £5.52

  75 Brake Shoe WE1A646036121
Brake Shoe
Out of stock
£4.70 £3.92

  76 Brake Lever WE1A646036160
Brake Lever
Out of stock
£12.32 £10.27

  77 Brake Shaft WE1A646036171
Brake Shaft
Out of stock
£41.42 £34.52

  78 Brake Return Spring WE168T2036180
Brake Return Spring
Out of stock
£4.31 £3.59

  79 Brake Actuator WE1A646036200
Brake Actuator
Out of stock
£6.66 £5.55

  80 Spring Pin 5 * 32 WE22351050032
Spring Pin 5 * 32
Out of stock
£1.61 £1.34

  81 Oring 1A P12 WE24311000120
Oring 1A P12
Out of stock
£1.36 £1.13

  82 Spring Pin 4 * 16 WE22351040016
Spring Pin 4 * 16
Out of stock
£4.34 £3.62

  83 Spline Collar TT1A646025300
Spline Collar
Out of stock
£4.20 £3.50

  84 Pulley TT1A646025760
Pulley
Out of stock
£39.86 £33.22

  85 Fan White TT1A646083050
Fan White
Out of stock
£17.34 £14.45

  86 Wave Washer TT1A646083060
Wave Washer
Out of stock
£4.20 £3.50

  87 Snap Ring TT19215489090
Snap Ring
In stock
£4.20 £3.50

  89 Tt Alignment Sleeve WE19452141570
Tt Alignment Sleeve
Out of stock
£2.12 £1.77

  90 Spring Pin 3.0A * 20 WE22351030020
Spring Pin 3.0A * 20
Out of stock
£0.85 £0.71

  91 Oil Seal 16 * 22 * .03 WE1A646024440
Oil Seal 16 * 22 * .03
Out of stock
£12.34 £10.28

  92 Oring 1A 2040 TT24351240400
Oring 1A 2040
Out of stock
£1.72 £1.43

  93 Cap 40 WE1A637024380
Cap 40
Out of stock
£10.22 £8.52

  94 Filter WE1A632026450
Filter
Out of stock
£78.40 £65.33

  95 Spring Pin 3.0A * 16 WE22351030016
Spring Pin 3.0A * 16
Out of stock
£0.40 £0.33

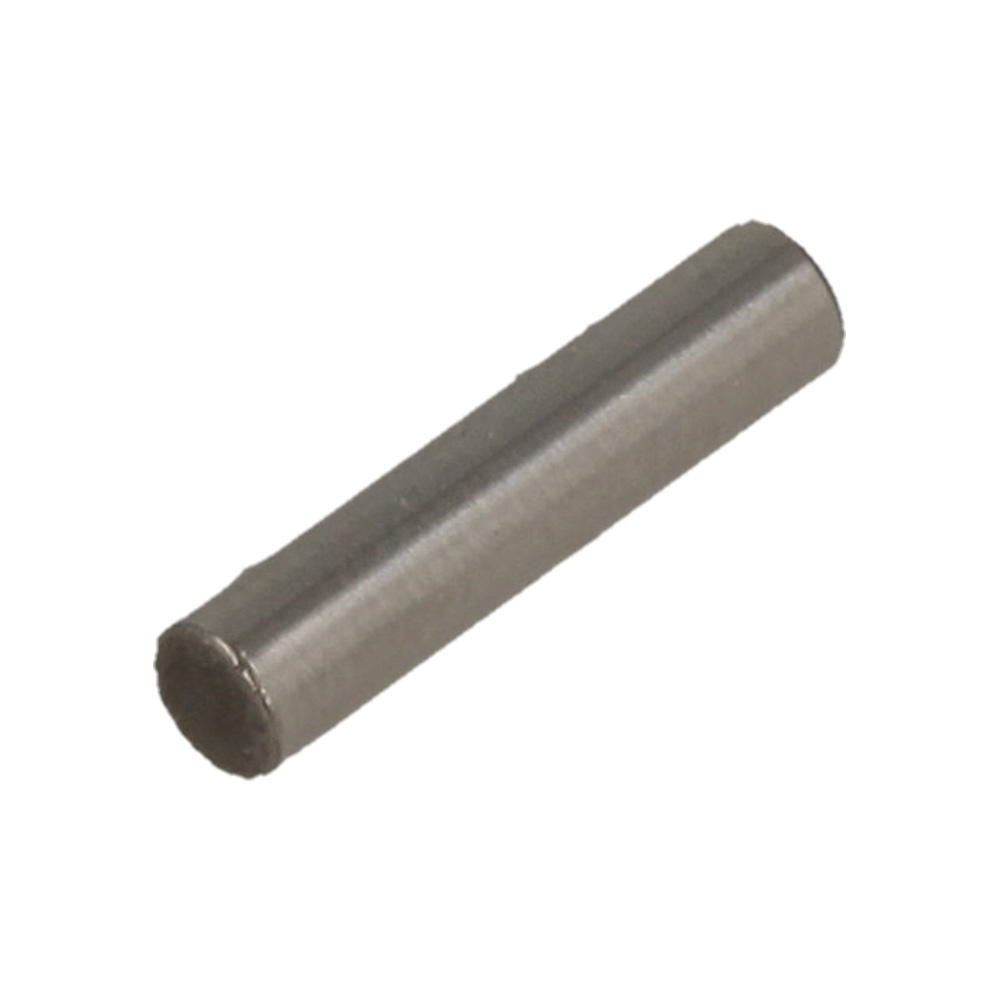

  96 Tt Pin WE19215488330
Tt Pin
Out of stock
£1.25 £1.04

  101 Tt 3Rd Check Valve WE1A637026350
Tt 3Rd Check Valve
Out of stock
£12.89 £10.74

  102 Tt Charge Valve WE187Q0326300
Tt Charge Valve
Out of stock
£23.58 £19.65

  104 Tt Pack 1015 WE19215424670
Tt Pack 1015
Out of stock
£29.58 £24.65

  105 Oring 1A P16 WE24311000160
Oring 1A P16
Out of stock
£4.50 £3.75

  107 Piping 38 A WE187Q0324930
Piping 38 A
Out of stock
£66.84 £55.70

  108 Piping 38 B WE187Q0324940
Piping 38 B
Out of stock
£66.84 £55.70

  111 Bolt M8 X 25 Plated WE26106080252
Bolt M8 X 25 Plated
Out of stock
£1.28 £1.07

  112 Tt Screw 8*90 WE187Q0308090
Tt Screw 8*90
Out of stock
£3.90 £3.25

  113 Tt Bolt 8*32 WE26016080322
Tt Bolt 8*32
Out of stock
£3.90 £3.25

  200 Tuff Torq Part WE187Q0399070
Tuff Torq Part
Out of stock
£390.16 £325.13


Description

Countax TUFF TORQ

K574C - Transaxle

From To -

01 Transmission Parts Diagram
