Countax K1850 - From 01-01-2006 To 30-11-2009 - 09 Transmision

Description

Countax K Series

K1850 - Tractor

From 01-01-2006 To 30-11-2009

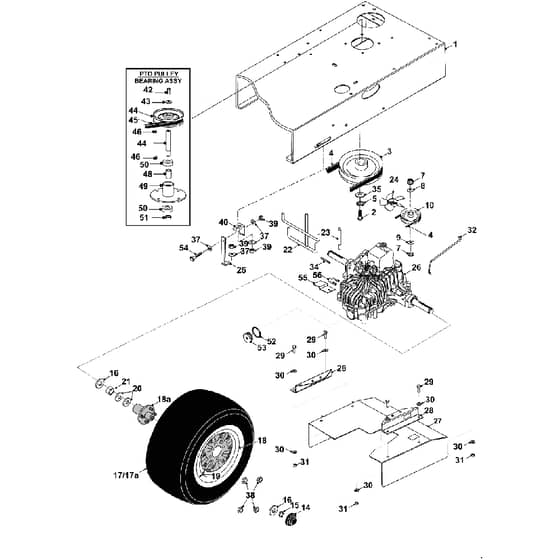

09 Transmision Assembly Parts Diagram

	Part No.	Details
1	WE327179000 Available to backorder	K1850 Chassis Welded Assembly	£246.36 £205.30
2	2141 In stock	Set Screw 5.16 X 3.4	£0.38 £0.32
3	WE20870702 Available to backorder	7 PTO Pulley	£86.52 £72.10
4	WE228001401 Available to backorder	PTO Belt	£69.24 £57.70
5	6408 In stock	M8 Internally Serrated Shakeproof Washe	£0.48 £0.40
7	WE049381600 Available to backorder	M10 Flanged Nyloc Nut	£0.41 £0.34
8	WE089418800 Available to backorder	2050 Transaxle Fan Washer	£1.99 £1.66
10	WE20904400 Available to backorder	2050 Hydrostatic Box Pulley	£29.89 £24.91
14	WE14811800 In stock	Hub Cap (Moulded)	£6.90 £5.75
15	WE078000500 Available to backorder	Scarifier Circlip	£2.23 £1.86
16	WE307191901 Available to backorder	K62 66 Transaxle Thrust Washer	£14.54 £12.12
17	WE198005000 Available to backorder	Adk 23 Rear Wheel Assy	£198.84 £165.70
17	WE198000400 Available to backorder	2050 Rear Tyre 23X10.5012Nhsty12231050 (17a)	£240.12 £200.10
18	WE198000700 Available to backorder	2050 Front Wheel Rim (18a)	£82.56 £68.80
19	WE14889200 Available to backorder	Wheel Valve	£11.30 £9.42
20	WE089423700 Available to backorder	Transaxle Washer 46 X 20 X 2	£1.99 £1.66
21	WE183018501 Available to backorder	2050 Wheel Spacer	£23.48 £19.57
23	WE313019100 Available to backorder	2050 LH Taxle Steady Rod	£35.14 £29.28
24	TT1A632085100 Available to backorder	2050 Hydro Cooling Fan	£24.37 £20.31
25	WE292003700 Available to backorder	D1850 Transaxle Steady RH	£20.52 £17.10
26	WE479389100 Available to backorder	K66 Transaxle	£831.23 £692.69
27	WE301120500 Available to backorder	D1850 Grass Transaxle Deflector	£41.17 £34.31
28	WE301119500 Available to backorder	2050 Transaxle Grass Deflector Bracket	£97.92 £81.60
30	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
31	2094 In stock	Nyloc Nut 516 UNF	£0.48 £0.40
32	WE313010600 Available to backorder	2050 Dump Valve Rod	£60.17 £50.14
34	2199 In stock	Keyrear Wheel	£2.75 £2.29
35	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
38	WE048000800 In stock	2050 Wheel Nut	£3.56 £2.97
40	WE30137700 Available to backorder	Torque Bracket	£19.34 £16.12
44	WE183013700 Available to backorder	D1850 Deisel PTO Shaft	£91.32 £76.10
46	WE09823900 In stock	Key No 61	£0.48 £0.40
49	WE40835800 Available to backorder	PTO Bearing Housing MK3 Comp.	£279.96 £233.30
50	WE10802200 In stock	Front Wheel Bearing	£4.60 £3.83
54	2146 In stock	Set Screw	£0.50 £0.42
55	WE307188800 Available to backorder	K66 Transaxle Hydraulic Loop Pipe Guard	£9.89 £8.24
56	WE348120100 Available to backorder	K66 Hydraulic Loop Pipe + 2 Nuts	£98.88 £82.40
