Countax K1850 - From 01-01-2006 To 30-11-2009 - 07 Rear Body And Running Board

Name: Countax K1850 - From 01-01-2006 To 30-11-2009 - 07 Rear Body And Running Board
SKU: k1850_01012006_30112009_07-group
Price: 0.28 GBP
Availability: InStock

Part No. k1850_01012006_30112009_07-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K1850 - From 01-01-2006 To 30-11-2009 - 07 Rear Body And Running Board

Description

Countax K Series

K1850 - Tractor

From 01-01-2006 To 30-11-2009

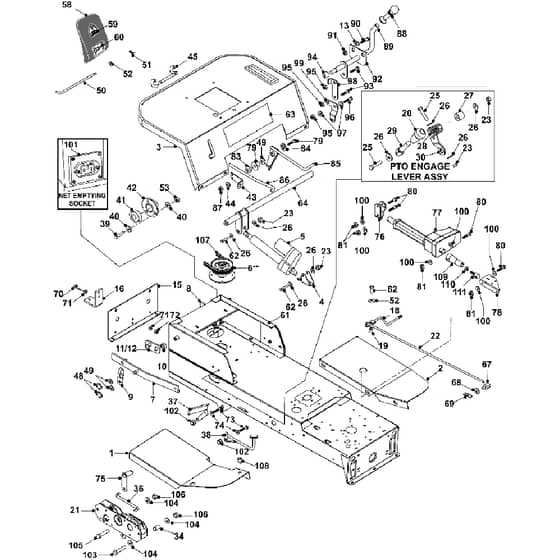

07 Rear Body And Running Board Assembly Parts Diagram

	Part No.	Details
1	WE321122500 Available to backorder	2050 RH Running Board	£194.40 £162.00
2	WE321122400 Available to backorder	2050 LH Running Board	£100.08 £83.40
3	WE327010200 Available to backorder	2050 Rear Body Panel	£119.40 £99.50
4	WE302005600 Available to backorder	2050 Rear Lift Actuator Mounting	£32.23 £26.86
5	WE448005800 Available to backorder	Actuator Warner La10	£1,307.47 £1,089.56
6	WE208000400 Available to backorder	5 PTO Pulley	£43.03 £35.86
7	WE32720300 Available to backorder	H.E. Sweeper Lift Arm RH	£132.48 £110.40
8	WE32721100 Available to backorder	H.E. Sweper Lift Arm LH	£109.32 £91.10
9	WE30133500 Available to backorder	H.E. Sweeper Lift Plate	£31.61 £26.34
10	WE31323500 Available to backorder	H.E Lift Bar Spacer	£20.44 £17.03
11	WE327171600 Available to backorder	RH Sweep Lift Crossbar Con Pl Asy D1820	£40.06 £33.38
12	WE327171700 Available to backorder	LH Sweeper Crossbar Con Plate Asy D1820	£39.14 £32.62
13	2010 Available to backorder	14 T4 Hp Washer	£0.48 £0.40
15	WE301041600 Available to backorder	2050 Rear Chassis Panel	£42.00 £35.00
16	WE29200101 Available to backorder	Tow Bracket	£86.88 £72.40
18	WE32958300 Available to backorder	A D Deck Ten Lvr Ass	£16.39 £13.66
19	WE18317400 Available to backorder	Deck Height Pivot Boss	£9.26 £7.72
20	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
21	WE401002100 Available to backorder	Pedal Cassette Kit To Replace 405006000	£128.28 £106.90
23	2094 In stock	Nyloc Nut 516 UNF	£0.48 £0.40
25	WE01820700 Available to backorder	Bolt 516UNF X 1.12 HT ZP	£0.54 £0.45
26	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
27	WE31329200 Available to backorder	Cseries Roller Plate Bush	£33.17 £27.64
28	WE25831100 Available to backorder	Spring	£7.78 £6.48
29	WE32708701 Available to backorder	PTO Lever	£51.74 £43.12
36	WE327175600 Available to backorder	D1850A2050 Fwd & Rev Cassette Rod Assy	£40.25 £33.54
37	WE302014200 Available to backorder	2050 Forward Pedel	£114.12 £95.10
38	WE327361301 Available to backorder	Cassette Reverse Pedal Assy	£63.12 £52.60
39	8905 In stock	Bolt M5 X 20mm	£0.48 £0.40
41	WE10802200 In stock	Front Wheel Bearing	£4.60 £3.83
42	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
43	WE307190600 Available to backorder	Adkv Brake Switch Plate 2003	£7.04 £5.87
44	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
45	WE301126000 Available to backorder	PTO Flap Hinge Brkt	£3.98 £3.32
48	WE078000800 Available to backorder	E Clip M12 Plated	£0.91 £0.76
49	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
50	WE31301800 Available to backorder	Seat Pivot Rod	£35.77 £29.81
51	WE06849100 In stock	2mm R Clip	£0.48 £0.40
53	2047 In stock	Nut	£0.34 £0.28
58	WE178967000 Available to backorder	PTO Belt Guard Kit Cad Series H.E	£57.14 £47.62
60	WE35891200 Available to backorder	Sweeper Belt Decal (Symbols Only)	£5.89 £4.91
61	WE327179200 Available to backorder	Adk Series Seatbox Welded Assy	£101.76 £84.80
62	2188 In stock	Bolt 516 UNF X 1 34 BZP	£0.71 £0.59
64	WE327009400 In stock	2050 Sweeper Lift Bar	Was £104.74 £87.28 Special Price £75.41 £62.84
68	2110 In stock	Washer 38 T3 ZP	£0.48 £0.40
69	2195 In stock	Rue Clip	£1.25 £1.04
70	WE01915300 Available to backorder	M10 X 110mm Bolt Sc (Kohler 14Hp Only)	£2.40 £2.00
71	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
72	2173 In stock	M10 Locknut	£0.48 £0.40
73	WE01844700 Available to backorder	Bolt 14X1In	£0.73 £0.61
74	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
75	WE327022200 Available to backorder	2050 Brake Link Bracket	£81.00 £67.50
76	WE301055001 Available to backorder	D Deck Lift Actuator Arm	£29.52 £24.60
77	WE448007700 Available to backorder	Actuator Cw Potentiometer	£336.00 £280.00
78	WE327015400 Available to backorder	2050 Actuator Bracket Assy	£87.00 £72.50
81	WE04855400 Available to backorder	38 UNF Full Nuts BZP	£0.73 £0.61
83	WE31326100 Available to backorder	P.T.O. Bridge Spacer H.E. Tractor	£7.06 £5.88
84	WE183529500 Available to backorder	Cseries Deck Lift Pivot Spacer	£11.52 £9.60
85	WE321122200 Available to backorder	2050 Pedal Plate Assy	£32.40 £27.00
86	WE313019200 Available to backorder	D1850 Diff Lock Control Rod	£24.34 £20.28
88	WE409427000 Available to backorder	2050 Handbrake Knob	£28.63 £23.86
89	WE327022100 Available to backorder	2050 Park Brake Lever	£45.23 £37.69
90	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037868 )	£0.48 £0.40
91	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
92	WE301119100 Available to backorder	2050 Park Brake Lever Support Plate	£13.75 £11.46
93	8999 In stock	M8 X 30 Roofing Bolt	£0.48 £0.40
94	WE183018700 In stock	2050 Park Brake Lever Spacer	Was £3.44 £2.87 Special Price £1.19 £0.99
95	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
96	8416 In stock	Bolt M8 X 50mm	£0.46 £0.38
98	WE301120100 Available to backorder	2050 Park Brake Upper Link Plate	£31.88 £26.57
99	WE301120200 Available to backorder	2050 Park Brake Lower Link Plate	£21.97 £18.31
102	WE31330002 Available to backorder	Roller Shaft Spacer	£21.96 £18.30
103	WE028662400 Available to backorder	Bolt 14In X 3In	£0.58 £0.48
104	WE08822700 Available to backorder	Washer 58 T3 Lp	£1.00 £0.83
105	WE01857700 Available to backorder	14 X 2 HT Bolt	£0.58 £0.48
106	2185 Available to backorder	Nyloc Nut14 UNF	£0.48 £0.40
107	WE228001200 In stock	Belt A49 Super Ii	£27.20 £22.67
108	WE183010700 Available to backorder	Universal Pedal Cassette Spacer 20mm	£4.12 £3.43
109	WE187184800 Available to backorder	Deck Lift Actuator Adjustor Body	£21.60 £18.00
111	WE187184900 Available to backorder	Deck Lift Actuator Adjustment Screw	£5.16 £4.30
