Countax K1850 - From 01-01-2006 To 30-11-2009 - 02 Console And Steering

Name: Countax K1850 - From 01-01-2006 To 30-11-2009 - 02 Console And Steering
SKU: k1850_01012006_30112009_02-group
Price: 0.29 GBP
Availability: InStock

Part No. k1850_01012006_30112009_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K1850 - From 01-01-2006 To 30-11-2009 - 02 Console And Steering

Description

Countax K Series

K1850 - Tractor

From 01-01-2006 To 30-11-2009

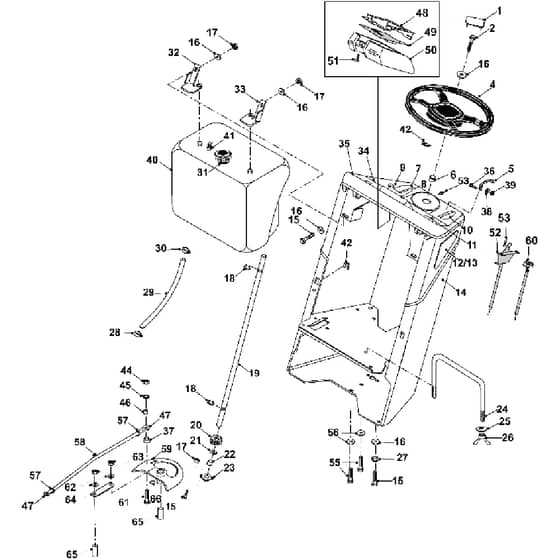

02 Console And Steering Assembly Parts Diagram

	Part No.	Details
2	2146 In stock	Set Screw	£0.50 £0.42
4	WE149591300 Available to backorder	Steering Wheel Assy (2013)	£164.64 £137.20
5	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.84 £14.03
6	WE149588800 Available to backorder	Steering Column Upper Bush	£3.46 £2.88
14	WE327028401 Available to backorder	2002 C Series Consol Welded Assembly	£186.00 £155.00
15	2141 In stock	Set Screw 5.16 X 3.4	£0.38 £0.32
16	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
17	2094 In stock	Nyloc Nut 516 UNF	£0.48 £0.40
18	2016 In stock	E Clip 1.2	£0.86 £0.72
19	WE31328400 Available to backorder	Steering Column Cseries	£94.32 £78.60
20	WE213112100 In stock	Steering Gear 2050 Cser Wwk1850	£94.36 £78.63
21	WE08822700 Available to backorder	Washer 58 T3 Lp	£1.00 £0.83
22	WE18401500 Available to backorder	Steering Rod Spacer	£24.20 £20.17
23	WE10801700 In stock	Column Lower Bearing	£27.23 £22.69
24	WE313008500 Available to backorder	Battery Clamp	£23.56 £19.63
25	2010 Available to backorder	14 T4 Hp Washer	£0.48 £0.40
26	WE04822600 Available to backorder	Wingnut 14Bsw	£1.01 £0.84
27	6408 In stock	M8 Internally Serrated Shakeproof Washe	£0.48 £0.40
28	WE11867100 Available to backorder	Hose Clip (Spring Type)	£0.94 £0.78
29	WE14803200 Available to backorder	Fuel Feed Pipe 80059	£11.92 £9.93
30	WE11856900 Available to backorder	Jubilee Clip (Fuel Tank Hose)	£2.47 £2.06
31	WE01538400 In stock	Fuel Cap	£18.22 £15.18
32	WE307187400 Available to backorder	2002 Fuel Tank Brkt	£10.15 £8.46
34	WE14859100 Available to backorder	Console	£47.21 £39.34
35	WE148013100 Available to backorder	New Consol Top Lower Left	£4.45 £3.71
36	2045 In stock	M4 X 12 Pozi Pan Ss Zinc Plated	£0.48 £0.40
37	WE189513700 Available to backorder	Xw Series 15mm Rose Joint Spacer	£49.39 £41.16
39	WE04826400 Available to backorder	M4 Nyloc T	£0.37 £0.31
40	WE148015400 Available to backorder	Fuel Tank With Hole For Guage 03	£144.84 £120.70
41	WE449665300 Available to backorder	Fuel Level Sender 208mm Long 16mm Hole	£47.94 £39.95
42	WE049381900 Available to backorder	M6 X 3mm Captive Nut	£1.19 £0.99
44	WE049381100 Available to backorder	M12 Nyloc Nut	£0.48 £0.40
45	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
46	WE183012800 Available to backorder	2050 Steering Link Rod Spacer	£8.26 £6.88
47	WE108728000 Available to backorder	M12 Rod Joint 2050	£36.14 £30.12
48	WE302002500 Available to backorder	Tractor Pcb Support Bracket 98	£39.16 £32.63
49	WE448009402 Available to backorder	Main Pcb + Fuel 20902 40915	£248.76 £207.30
51	2035 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	£0.48 £0.40
52	WE528004600 Available to backorder	Wtwin	£49.78 £41.48
53	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 10314816	£0.35 £0.29
55	2145 Available to backorder	Bolt 38 X 2.12	£1.20 £1.00
56	2110 In stock	Washer 38 T3 ZP	£0.48 £0.40
58	WE313021300 Available to backorder	A2050 Kawasaki Steering Link Rod Aug 01	£17.08 £14.23
59	WE301134100 In stock	A2050 19 Tooth Special Quadrant	£91.80 £76.50
61	WE019478800 Available to backorder	M12 X 60mm Bolt (Zinc)	£0.91 £0.76
63	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
65	WE31337500 Available to backorder	Steering Support Boss	£31.14 £25.95
66	WE11808600 Available to backorder	Grease Nipple	£0.95 £0.79
