Countax K1850 - From 01-01-2003 To 01-01-2005 - 08 Seat

Description

Countax K Series

K1850 - Tractor

From 01-01-2003 To 01-01-2005

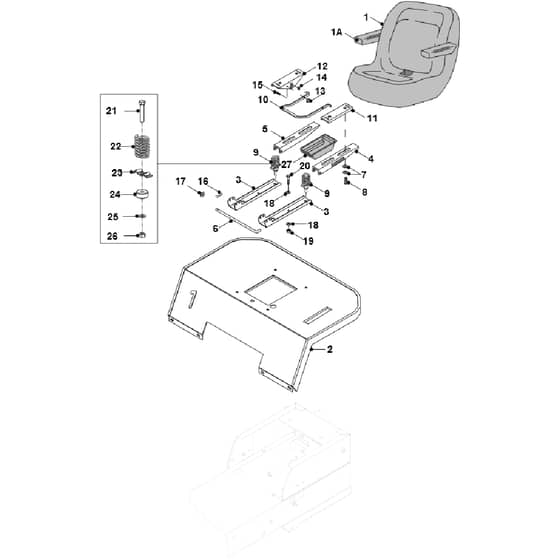

08 Seat Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405463500 Available to backorder	Kita25 Seat Conversion Milsco To Seat	£417.60 £348.00
2	WE327010200 Available to backorder	2050 Rear Body Panel	£119.42 £99.52
3	WE301985800 Available to backorder	Seat Attachment Channel 2008	£53.22 £44.35
4	WE30117700 Available to backorder	Adjustable Seat Channel RH	£16.22 £13.52
5	WE30117800 Available to backorder	Adjustable Seat Channel LH	£16.22 £13.52
6	WE31301800 Available to backorder	Seat Pivot Rod	£34.58 £28.82
7	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
8	WE02825200 Available to backorder	Bolt 38UNC X 34In	£2.58 £2.15
9	WE405003200 Available to backorder	Seat Spring Kit Assy	£8.90 £7.42
10	WE30203100 Available to backorder	Seat Handle	£13.18 £10.98
12	WE30118000 Available to backorder	Seat Plate Adjuster LH	£8.26 £6.88
13	WE07868700 Available to backorder	14 Starloc Washer	£0.54 £0.45
14	WE25831100 Available to backorder	Spring	£7.52 £6.27
15	WE012885800 Available to backorder		£0.35 £0.29
16	WE06849100 Available to backorder	2mm R Clip	£0.60 £0.50
17	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
18	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
19	2094 Available to backorder	Nyloc Nut 516 UNF	£0.26 £0.22
20	WE31334800 Available to backorder	Spacer PTO Centre	£23.80 £19.83
21	2065 In stock	Pull Rod Spring Sleeve 302601	£0.70 £0.58
22	WE25858100 Available to backorder	Spring Sliding Seat	£12.10 £10.08
24	WE31330800 Available to backorder	Spacer(He Cseries Seat Spring)	£5.24 £4.37
25	2110 Available to backorder	Washer 38 T3 ZP	£0.14 £0.12
26	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
27	WE148003700 Available to backorder	He Series Toolbox	£24.94 £20.78
