Countax K1850 - From 01-01-2003 To 01-01-2005 - 06 PTO And Transmission

Description

Countax K Series

K1850 - Tractor

From 01-01-2003 To 01-01-2005

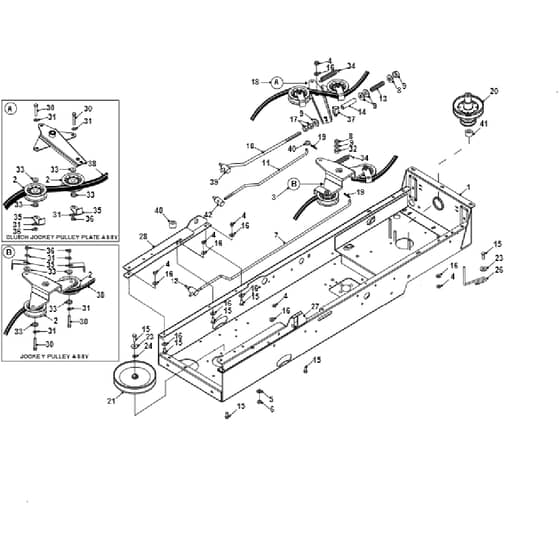

06 Pto And Transmission Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	WE20811500 In stock	PTO Jockey Pulley	£23.06 £19.22
3	WE307197100 Available to backorder	2003 Diesel PTO Jockey Plate	£55.52 £46.27
4	2094 Available to backorder	Nyloc Nut 516 UNF	£0.26 £0.22
5	2110 Available to backorder	Washer 38 T3 ZP	£0.14 £0.12
6	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
7	WE313010800 Available to backorder	Rod	£105.32 £87.77
10	WE313018600 Available to backorder	A2050 Tx Rod	£67.20 £56.00
11	WE313010700 Available to backorder	2050 Park Brake Engine Rod	£62.12 £51.77
12	WE18806100 Available to backorder	Trunion (PTO Engage)	£7.46 £6.22
13	WE259405100 Available to backorder	2050 Comp Brake Rod Spring	£3.42 £2.85
15	2146 Available to backorder	Set Screw	£0.92 £0.77
16	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
17	WE049381500 Available to backorder	38 UNF Half Nut Bright Zinc Finish	£0.40 £0.33
18	WE321122300 Available to backorder	D18502050 Clutch Jockey Plate Assy	£61.68 £51.40
19	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
21	WE20870702 Available to backorder	7 PTO Pulley	£86.50 £72.08
23	WE08819800 In stock	Washer 516Id X 1Od Hd	£19.68 £16.40
24	6408 In stock	M8 Internally Serrated Shakeproof Washe	£1.34 £1.12
26	WE313006200 Available to backorder	2050 Transmission Front Belt Guide	£17.02 £14.18
27	WE327009300 Available to backorder	2050 LH Taxle Mounting Bracket	£79.24 £66.03
28	WE301041700 Available to backorder	2050 RH Taxle Mounting Bracket	£77.32 £64.43
30	2188 In stock	Bolt 516 UNF X 1 34 BZP	£0.96 £0.80
31	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
33	WE31351100 Available to backorder	Sweeper Jockey Cap	£42.56 £35.47
34	WE25849600 Available to backorder	Belt Tension Spring	£19.80 £16.50
35	WE307187100 Available to backorder	Belt Keeper	£13.34 £11.12
37	WE183018600 Available to backorder	2050 Park Brake Rod Trunnion	£8.30 £6.92
38	WE228001401 Available to backorder	PTO Belt	£69.20 £57.67
39	WE183018400 Available to backorder	2050 Brake Rod Tunnion	£6.56 £5.47
40	WE31330800 Available to backorder	Spacer(He Cseries Seat Spring)	£5.24 £4.37
41	WE189497100 Available to backorder	K1850 Engine Pulley Spacer	£4.55 £3.79
42	WE183020000 Available to backorder	D1850 Transmission Trunnion	£8.62 £7.18
