Countax K1850 - From 01-01-2003 To 01-01-2005 - 04 Deck Hanging

Description

Countax K Series

K1850 - Tractor

From 01-01-2003 To 01-01-2005

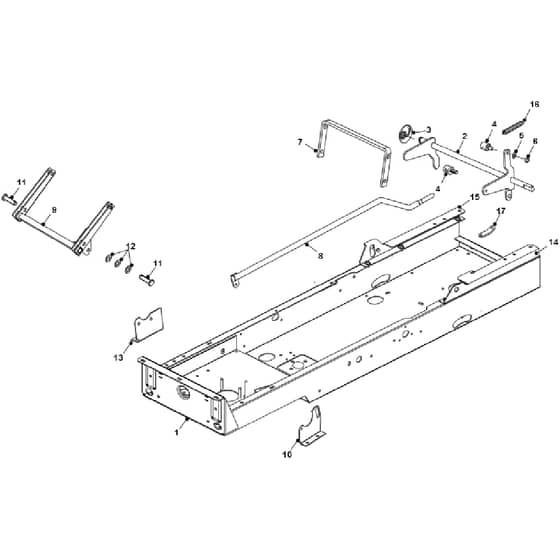

04 Deck Hanging Parts Diagram

	Part No.	Details
2	WE328954300 Available to backorder	A2050 He 1999 Rear Cradle	£144.72 £120.60
3	WE30117601 Available to backorder	Rear Deck Level Cam	£25.84 £21.53
4	WE189497500 Available to backorder	2002 Tractor Deck Level Trunion	£26.23 £21.86
5	WE08822800 Available to backorder	Washer 38 T4 ZP	£0.31 £0.26
6	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
7	WE301143200 Available to backorder	Multible Deck Lift Link	£59.98 £49.98
8	WE327015500 Available to backorder	D1850 Deck Level Rod Assembly	£83.52 £69.60
9	WE32703701 Available to backorder	Deck Carry Cradle Assembly Front	£186.12 £155.10
10	WE301054000 In stock	2050 Right Hand Front Deck Level Bracket	£41.38 £34.48
11	WE31339401 In stock	Deck Swing Lift Pin 12 X 46.5mm	£21.05 £17.54
12	2110 In stock	Washer 38 T3 ZP	£0.48 £0.40
13	WE301053900 Available to backorder	2050 Left Hand Front Deck Level Bracket	£70.32 £58.60
15	WE327009300 Available to backorder	2050 LH Taxle Mounting Bracket	£75.24 £62.70
16	WE25885300 Available to backorder	Deck Assist Spring	£19.55 £16.29
17	WE307183500 Available to backorder	V2050 Deck Lift Spring Anchor 060302	£21.28 £17.73
