Countax K18 - From 01-01-1992 To 01-01-1994 - 08 Running Board And Foot Pedal

Name: Countax K18 - From 01-01-1992 To 01-01-1994 - 08 Running Board And Foot Pedal
SKU: k18_01011992_01011994_08-group
Price: 0.22 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K18 - From 01-01-1992 To 01-01-1994 - 08 Running Board And Foot Pedal

Description

Countax K Series

K18 - Tractor

From 01-01-1992 To 01-01-1994

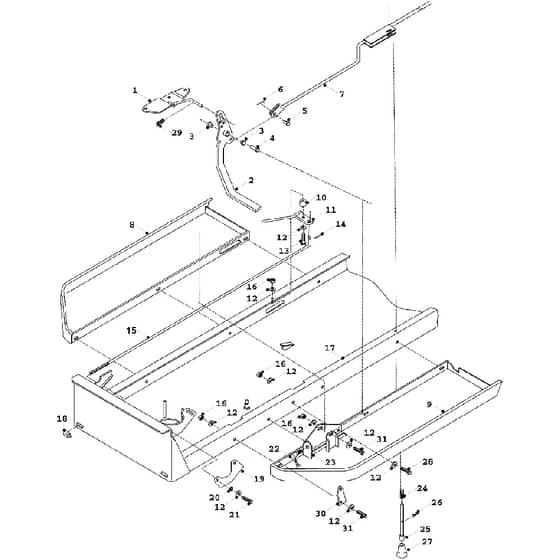

08 Running Board And Foot Pedal Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE32706402 Available to backorder	Jockey Pulley Plate Cw 52824700 Bush	£67.60 £56.33
2	WE32706501 Available to backorder	Brakeclutch Pedel	£76.68 £63.90
4	WE31402200 Available to backorder	Brake Pedal Spacer	£22.30 £18.58
6	WE07846800 Available to backorder	Circlip 38	£0.36 £0.30
7	WE32711500 Available to backorder	Brake Rod Manual	£68.64 £57.20
8	WE27706300 Available to backorder	Running Board LH	£72.02 £60.02
10	WE18833700 Available to backorder	Pivot (Deck Overlock)	£5.78 £4.82
12	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
13	2188 In stock	Bolt 516 UNF X 1 34 BZP	£0.96 £0.80
14	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
15	WE318963201 Available to backorder	C Series PTO Rod	£72.62 £60.52
16	2094 Available to backorder	Nyloc Nut 516 UNF	£0.26 £0.22
17	WE32702400 Available to backorder	Chassis Assy	£257.28 £214.40
19	WE541109600 Available to backorder	2050 Deck Carry Plate	£45.80 £38.17
20	WE18303500 Available to backorder	Spacer Deck Swing Plate	£8.24 £6.87
21	2146 Available to backorder	Set Screw	£0.92 £0.77
22	WE44813400 Available to backorder	Pull Safety Switch	£40.54 £33.78
24	WE25805000 Available to backorder	Park Brake Spring	£7.19 £5.99
25	WE31305900 Available to backorder	Park Brake Rod	£50.92 £42.43
26	WE06849100 Available to backorder	2mm R Clip	£0.60 £0.50
27	WE14804800 Available to backorder	Lever Knob	£7.48 £6.23
28	WE01827000 Available to backorder	Bolt 516 X 2 14In	£0.96 £0.80
29	WE25813801 Available to backorder	Safety Switch Spring	£10.48 £8.73
30	WE30118300 Available to backorder	Brake Spring Plate	£7.64 £6.37
