Countax K18 - From 01-01-1992 To 01-01-1994 - 05 Engine And Clutch (Single Cylinder)

Description

Countax K Series

K18 - Tractor

From 01-01-1992 To 01-01-1994

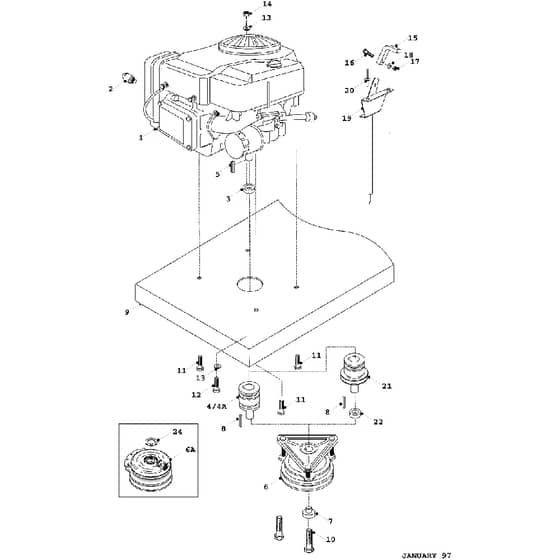

05 Engine And Clutch (Single Cylinder) Parts Diagram

	Part No.	Details
2	WE52851200 Available to backorder	Oil Drainage Valve	£26.83 £22.36
3	WE31854000 Available to backorder	Engine Pulley Spacer	£33.12 £27.60
4	WE31330500 Available to backorder	Engine Pulleymag Stop Clutch (4A)	£245.88 £204.90
4	WE31335700 Available to backorder	Engine Pulley	£183.84 £153.20
5	WE09850301 Available to backorder	Engine Key	£1.72 £1.43
6	WE44936100 In stock	Elec.Clutch Magstop (6A)	£486.89 £405.74
6	WE44815200 Available to backorder	Electric Clutch 2050	£505.28 £421.07
7	WE183016800 Available to backorder	2050 Engine Pulley Cap	£45.48 £37.90
8	2191 In stock	Key 14 X 1 Rounded	£0.48 £0.40
9	WE32702400 Available to backorder	Chassis Assy	£288.24 £240.20
10	2201 In stock	716 UNF X 4.5 Bolt	£3.90 £3.25
11	WE01848700 Available to backorder	38UNC X 1 14 Bolt BZP	£1.69 £1.41
12	WE01820700 Available to backorder	Bolt 516UNF X 1.12 HT ZP	£0.54 £0.45
13	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
14	2094 In stock	Nyloc Nut 516 UNF	£0.48 £0.40
15	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.84 £14.03
16	WE02847800 Available to backorder	Pin 738	£1.00 £0.83
17	WE04826400 Available to backorder	M4 Nyloc T	£0.37 £0.31
19	WE528004900 Available to backorder	Throttle Control B & S Twin Cyl. Engs..	£150.96 £125.80
20	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 10314816	£0.35 £0.29
21	WE52810300 In stock	Choke Control	£19.36 £16.13
22	WE32728300 Available to backorder	Peerless Hydro Engine Pulley	£156.60 £130.50
