Countax K18 - - 33 He Console

Name: Countax K18 - - 33 He Console
SKU: k18___33-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Countax K Series

K18 - Tractor

From To -

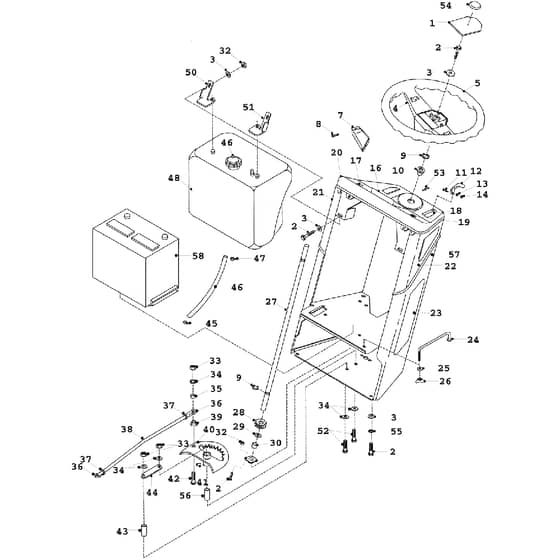

33 He Console Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	2141 In stock	Set Screw 5.16 X 3.4	£0.64 £0.53
3	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
4	WE14920400 Available to backorder	Cable Tie Screw Type T18Mr	£1.40 £1.17
8	WE02913100 Available to backorder	6 X 8 Pozi Ss Stap	£0.47 £0.39
9	2016 In stock	E Clip 1.2	£0.86 £0.72
10	WE149588800 Available to backorder	Steering Column Upper Bush	£3.34 £2.78
11	2045 In stock	M4 X 12 Pozi Pan Ss Zinc Plated	£0.19 £0.16
12	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.28 £13.57
14	WE04826400 Available to backorder	M4 Nyloc T	£0.36 £0.30
24	WE313008500 Available to backorder	Battery Clamp	£22.78 £18.98
25	2010 In stock	14 T4 Hp Washer	£0.35 £0.29
26	WE04822600 Available to backorder	Wingnut 14Bsw	£0.98 £0.82
27	WE31328400 Available to backorder	Steering Column Cseries	£94.26 £78.55
28	WE31302300 Available to backorder	Steering Pinion	£186.70 £155.58
29	WE08822700 Available to backorder	Washer 58 T3 Lp	£0.96 £0.80
30	WE18401500 Available to backorder	Steering Rod Spacer	£23.40 £19.50
32	2094 Available to backorder	Nyloc Nut 516 UNF	£0.36 £0.30
33	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
34	2110 Available to backorder	Washer 38 T3 ZP	£0.14 £0.12
35	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£12.68 £10.57
36	WE10872600 In stock	10mm Rod End	£20.30 £16.92
37	2173 Available to backorder	M10 Locknut	£0.38 £0.32
38	WE18806300 Available to backorder	Steering Link Rod	£18.58 £15.48
39	WE189513700 Available to backorder	Xw Series 15mm Rose Joint Spacer	£47.74 £39.78
40	WE18801400 Available to backorder	15T Kc Series Steering Quadrant	£271.56 £226.30
41	WE11808600 Available to backorder	Grease Nipple	£0.92 £0.77
42	WE01821500 Available to backorder	Bolt 38UNF X 2.14 HT ZP	£2.36 £1.97
43	WE31337500 Available to backorder	Steering Support Boss	£30.10 £25.08
45	WE11867100 Available to backorder	Hose Clip (Spring Type)	£0.90 £0.75
46	WE14803200 Available to backorder	Fuel Feed Pipe 80059	£11.52 £9.60
47	WE11856900 Available to backorder	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
48	WE14803000 Available to backorder	Fuel Tank Without Hole	£143.44 £119.53
50	WE307187400 Available to backorder	2002 Fuel Tank Brkt	£9.82 £8.18
52	2145 Available to backorder	Bolt 38 X 2.12	£1.00 £0.83
53	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.25 £1.04
55	6408 In stock	M8 Internally Serrated Shakeproof Washe	£1.34 £1.12
56	WE31337400 Available to backorder	Steering Rack Pivot	£24.52 £20.43
57	WE27708400 Available to backorder	Console Assy	£127.06 £105.88
