Countax K18 - - 30 Steering Console

Name: Countax K18 - - 30 Steering Console
SKU: k18___30-group
Price: 0.31 GBP
Availability: InStock

Part No. k18___30-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Countax K Series

K18 - Tractor

From To -

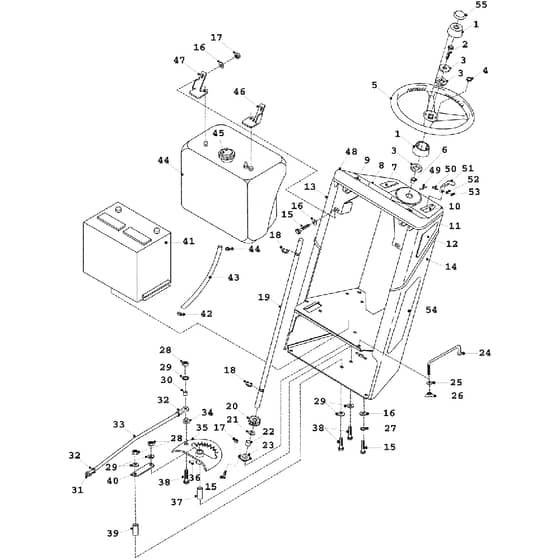

30 Steering Console Assembly Parts Diagram

	Part No.	Details
2	2146 In stock	Set Screw	£0.50 £0.42
4	WE08869700 Available to backorder	14 Starlock Washer	£0.59 £0.49
5	WE149591300 Available to backorder	Steering Wheel Assy (2013)	£164.64 £137.20
6	WE149588800 Available to backorder	Steering Column Upper Bush	£3.46 £2.88
7	WE52907500 Available to backorder	Dashboard Decal Non He	£5.98 £4.98
14	WE27708400 Available to backorder	Console Assy	£127.08 £105.90
15	2141 In stock	Set Screw 5.16 X 3.4	£0.38 £0.32
17	2094 In stock	Nyloc Nut 516 UNF	£0.48 £0.40
18	2016 In stock	E Clip 1.2	£0.86 £0.72
19	WE31328400 Available to backorder	Steering Column Cseries	£94.32 £78.60
20	WE31302300 Available to backorder	Steering Pinion	£186.72 £155.60
21	WE08822700 Available to backorder	Washer 58 T3 Lp	£1.00 £0.83
22	WE18401500 Available to backorder	Steering Rod Spacer	£24.20 £20.17
23	WE10801700 In stock	Column Lower Bearing	£27.23 £22.69
24	WE313008500 Available to backorder	Battery Clamp	£23.56 £19.63
25	2010 Available to backorder	14 T4 Hp Washer	£0.48 £0.40
26	WE04822600 Available to backorder	Wingnut 14Bsw	£1.01 £0.84
27	6408 In stock	M8 Internally Serrated Shakeproof Washe	£0.48 £0.40
28	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
29	2110 In stock	Washer 38 T3 ZP	£0.48 £0.40
30	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£13.12 £10.93
31	WE10872600 In stock	10mm Rod End	£20.66 £17.22
32	2173 In stock	M10 Locknut	£0.48 £0.40
33	WE18806300 Available to backorder	Steering Link Rod	£19.21 £16.01
34	WE189513700 Available to backorder	Xw Series 15mm Rose Joint Spacer	£49.39 £41.16
35	WE18801400 Available to backorder	15T Kc Series Steering Quadrant	£289.32 £241.10
36	WE11808600 Available to backorder	Grease Nipple	£0.95 £0.79
37	WE31337400 Available to backorder	Steering Rack Pivot	£25.37 £21.14
38	2145 Available to backorder	Bolt 38 X 2.12	£1.20 £1.00
39	WE31337500 Available to backorder	Steering Support Boss	£31.14 £25.95
42	WE11867100 Available to backorder	Hose Clip (Spring Type)	£0.94 £0.78
43	WE14803200 Available to backorder	Fuel Feed Pipe 80059	£11.92 £9.93
44	WE14803000 Available to backorder	Fuel Tank Without Hole	£143.40 £119.50
45	WE01538400 In stock	Fuel Cap	£18.22 £15.18
46	WE307187400 Available to backorder	2002 Fuel Tank Brkt	£10.15 £8.46
48	WE14859100 Available to backorder	Console	£47.21 £39.34
49	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.30 £1.08
50	2045 In stock	M4 X 12 Pozi Pan Ss Zinc Plated	£0.48 £0.40
51	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.84 £14.03
53	WE04826400 Available to backorder	M4 Nyloc T	£0.37 £0.31
