Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 25 Steering Console

Name: Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 25 Steering Console
SKU: k125k15_01011991_01011992_25-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 25 Steering Console

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

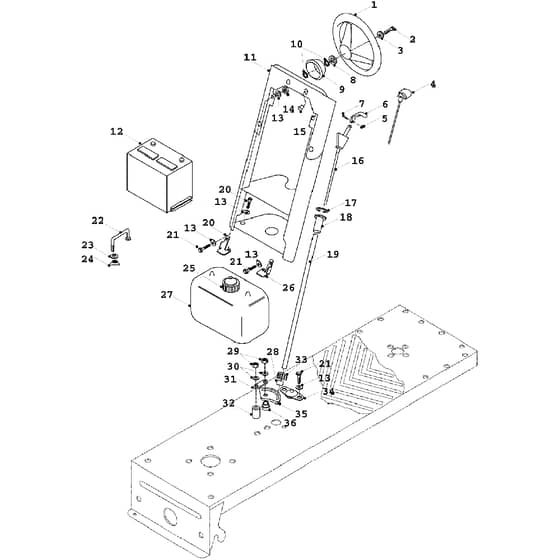

25 Steering Console Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE149591300 Available to backorder	Steering Wheel Assy (2013)	£164.62 £137.18
2	2146 Available to backorder	Set Screw	£0.92 £0.77
3	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£14.22 £11.85
4	WE52810300 In stock	Choke Control	£19.36 £16.13
5	2047 In stock	Nut	£0.90 £0.75
6	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.28 £13.57
7	WE02821800 Available to backorder	Frame Weldment Cl125 520025H	£0.48 £0.40
10	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
13	2192 In stock	Washer - M8 X 21 X 1.6	£0.47 £0.39
14	WE08819500 Available to backorder	Washer 5.16 T3 Lp Zinc Plated	£1.25 £1.04
15	WE12824100 Available to backorder	Pop Rivet 4mm X12mm	£0.34 £0.28
16	WE528004900 Available to backorder	Throttle Control B & S Twin Cy	£150.90 £125.75
17	2016 In stock	E Clip 1.2	£0.86 £0.72
18	WE149588800 Available to backorder	Steering Column Upper Bush	£3.34 £2.78
19	WE31328400 Available to backorder	Steering Column C-Series	£94.26 £78.55
20	WE307187400 Available to backorder	2002 Fuel Tank Brkt	£9.82 £8.18
21	2141 In stock	Set Screw	£0.64 £0.53
22	WE313008500 Available to backorder	Battery Clamp	£22.78 £18.98
23	2010 In stock	1.4 T4 Hp Washer	£0.35 £0.29
24	WE04822600 Available to backorder	Wingnut 1.4Bsw	£0.98 £0.82
25	WE01538400 In stock	Fuel Cap	£16.98 £14.15
27	WE20870800 Available to backorder	3 Pulley (Capitol)	£70.70 £58.92
28	WE08822700 Available to backorder	Washer 5.8 T3 Lp	£0.96 £0.80
29	2095 In stock	Nyloc Nut 3.8UNF	£0.48 £0.40
30	2110 Available to backorder	Washer 3.8 T3 Z.P	£0.14 £0.12
32	WE31337500 Available to backorder	Steering Support Boss	£30.10 £25.08
33	WE31302300 Available to backorder	Steering Pinion	£186.70 £155.58
34	WE10801700 In stock	Column Lower Bearing	£25.40 £21.17
35	WE18801400 Available to backorder	15T K.C Series Steering Quadra	£271.56 £226.30
36	WE31337400 Available to backorder	Steering Rack Pivot	£24.52 £20.43
