Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 23 Engine And Clutch

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

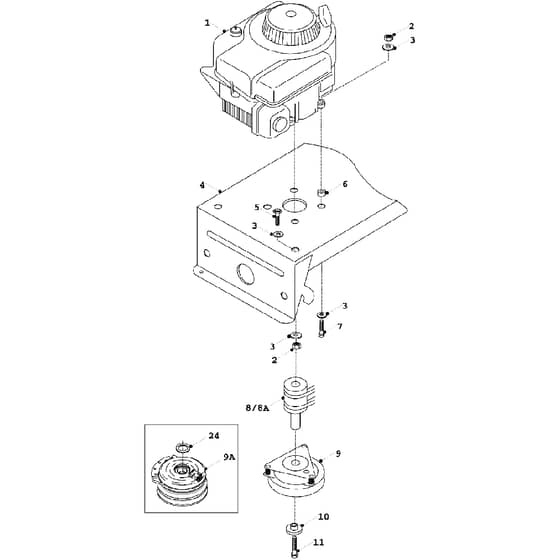

23 Engine And Clutch Parts Diagram

	Part No.	Details
2	2094 In stock	Nyloc Nut 5.16 UNF	£0.48 £0.40
3	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
4	WE32702400 Available to backorder	Chassis Assy	£288.24 £240.20
5	2146 In stock	Set Screw	£0.50 £0.42
7	WE01848700 Available to backorder	3.8UNC X 1 1.4 Bolt BZP	£1.69 £1.41
8	WE31330500 Available to backorder	Engine Pulleymag Stop Clutch (8A)	£245.88 £204.90
9	WE44815200 Available to backorder	Electric Clutch 20.50	£505.28 £421.07
9	WE44936100 In stock	Elec.Clutch Magstop (9A)	£486.89 £405.74
10	WE183016800 Available to backorder	2050 Engine Pulley Cap	£45.48 £37.90
