Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 19 Rear PTO

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

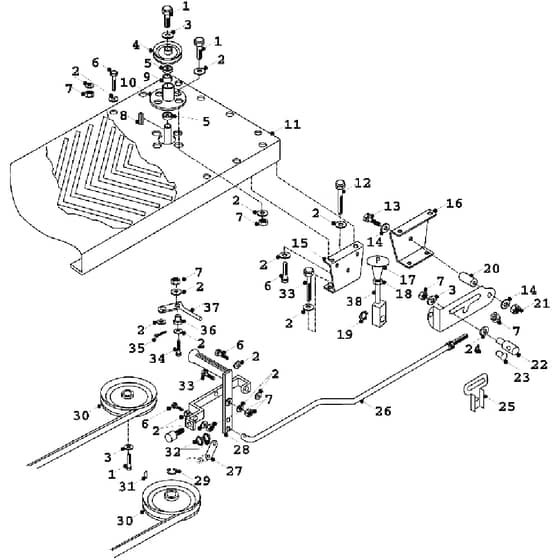

19 Rear Pto Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2141 In stock	Set Screw	£0.64 £0.53
2	2192 In stock	Washer - M8 X 21 X 1.6	£0.47 £0.39
3	WE08819800 In stock	Washer 5.16Id X 1Od Hd	£19.68 £16.40
4	WE20870800 Available to backorder	3 Pulley (Capitol)	£70.70 £58.92
5	WE10811600 In stock	Bearing (PTO Housing)	£16.34 £13.62
7	2094 Available to backorder	Nyloc Nut 5.16 UNF	£0.26 £0.22
8	WE09823900 In stock	Key No 61	£1.22 £1.02
9	WE31334800 Available to backorder	Spacer PTO Centre	£23.80 £19.83
10	WE32702400 Available to backorder	Chassis Assy	£257.28 £214.40
11	WE08819500 Available to backorder	Washer 5.16 T3 Lp Zinc Plated	£1.25 £1.04
12	WE01821200 In stock	Bolt 5.16 X 2.3.4	£0.70 £0.58
13	2186 Available to backorder	Bolt 5.16UNF X 2 Zinc.Clear Un	£0.90 £0.75
14	2010 In stock	1.4 T4 Hp Washer	£0.35 £0.29
15	WE30131600 In stock	Manual.Hydro Gearbox Bracket	£25.06 £20.88
19	2112 In stock	Circlip (PGC Pulley & Shaft)	£0.72 £0.60
20	WE18833500 Available to backorder	Pivot Plate (Park Brake)	£5.42 £4.52
21	2185 Available to backorder	Nyloc Nut1.4UNF	£0.60 £0.50
24	WE27104400 Available to backorder	4.3 Bushel Bag Wrear Disch	£1.12 £0.93
27	WE25813801 Available to backorder	Safety Switch Spring	£10.48 £8.73
29	WE07823800 Available to backorder	Circlip 5.8 External	£1.50 £1.25
30	WE20870702 Available to backorder	7 PTO Pulley	£86.50 £72.08
32	WE44813400 Available to backorder	Pull Safety Switch	£40.54 £33.78
33	2029 In stock	Bolt 5.16UNF X 2.1.2 HT Z.P	£0.76 £0.63
34	2188 In stock	Bolt 5.16 UNF X 1 3.4 BZP	£0.96 £0.80
35	2197 Available to backorder	Split Pin 1 X 1.8 (Snowblade)	£0.47 £0.39
36	WE32725600 Available to backorder	Gear Select Plate	£15.48 £12.90
