Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 11 Chassis And PTO Drive

Name: Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 11 Chassis And PTO Drive
SKU: k125k15_01011991_01011992_11-group
Price: 0.4 GBP
Availability: InStock

Part No. k125k15_01011991_01011992_11-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 11 Chassis And PTO Drive

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

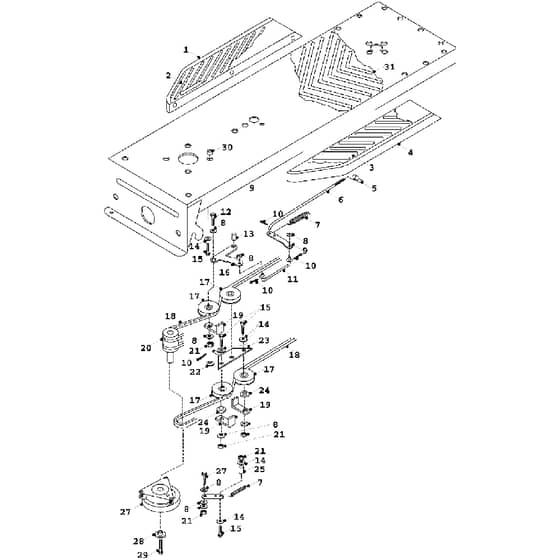

11 Chassis And Pto Drive Parts Diagram

	Part No.	Details
5	WE18806100 Available to backorder	Trunion (PTO Engage)	£7.70 £6.42
6	WE31805700 Available to backorder	PTO Engage Rod	£23.00 £19.17
7	WE25812201 Available to backorder	Brake Return Spring	£9.41 £7.84
9	WE27103800 Available to backorder	Back Plate Assy 4.3 Bushel Sc	£4.84 £4.03
10	2197 In stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
11	WE32701500 Available to backorder	Link Barpto Drive Assy	£20.18 £16.82
12	WE01820700 Available to backorder	Bolt 5.16UNF X 1.1.2 HT Z.P	£0.54 £0.45
13	WE52824700 Available to backorder	Oilite Bush	£13.55 £11.29
14	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
15	2186 Available to backorder	Bolt 5.16UNF X 2 Zinc.Clear Un	£1.08 £0.90
17	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
18	WE2281110A In stock	Transmission Belt	£60.13 £50.11
19	WE307187100 Available to backorder	Belt Keeper	£17.66 £14.72
21	2094 In stock	Nyloc Nut 5.16 UNF	£0.48 £0.40
22	2114 In stock	Washer - M12 X 24 X 1.6	£0.48 £0.40
23	WE32706402 Available to backorder	Jockey Pulley Plate C.W 528247	£67.56 £56.30
24	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
25	WE31302500 Available to backorder	Spacer 20mm X 5.16Id	£3.50 £2.92
27	WE44815200 Available to backorder	Electric Clutch 20.50	£505.28 £421.07
28	WE183016800 Available to backorder	2050 Engine Pulley Cap	£45.48 £37.90
