Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 06 Manual Transaction

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

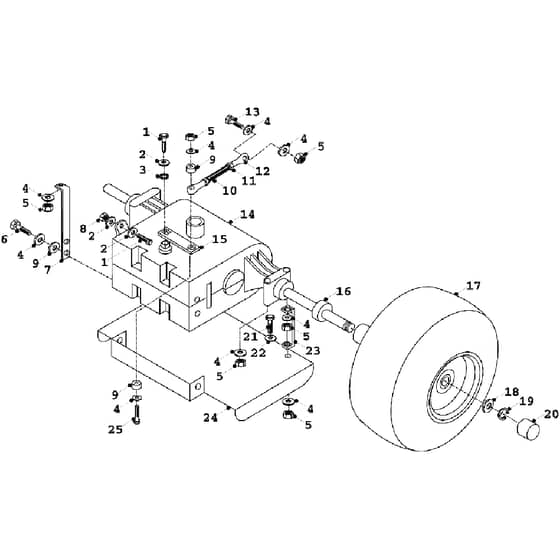

06 Manual Transaction Assembly Parts Diagram

	Part No.	Details
1	2106 In stock	Set Screw	£0.48 £0.40
2	2010 Available to backorder	1.4 T4 Hp Washer	£0.48 £0.40
3	WE08823500 Available to backorder	Starloc Washer 5.16Id X 5.8Od	£0.61 £0.51
4	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
5	2094 In stock	Nyloc Nut 5.16 UNF	£0.48 £0.40
6	WE02822100 Available to backorder	Screw 5.16 Tri-Lock	£4.60 £3.83
8	2185 Available to backorder	Nyloc Nut1.4UNF	£0.48 £0.40
9	WE31302800 Available to backorder	Spacer 7mm X 5.16Id	£10.14 £8.45
10	WE31301600 Available to backorder	Gear Select Rod	£15.59 £12.99
11	WE04822200 Available to backorder	Locknut 5.16UNF Hex Z.P	£0.88 £0.73
12	WE10812000 Available to backorder	Ball Joint 5.16 X 5.16UNF	£24.90 £20.75
13	2183 In stock	Bolt 5.16UNF X 1.1.4 HT Z.P	£0.58 £0.48
15	WE32725600 Available to backorder	Gear Select Plate	£16.01 £13.34
16	WE189498701 Available to backorder	K46 Transaxle Spacer 2008	£36.34 £30.28
17	WE19802302 Available to backorder	P322 18X9508 Wanda	£124.80 £104.00
18	WE089423700 Available to backorder	Transaxle Washer 46 X 20 X 2	£1.99 £1.66
19	2147 In stock	E Clip 3.4	£0.91 £0.76
20	WE14811800 In stock	Hub Cap (Moulded)	£6.90 £5.75
21	2141 In stock	Set Screw	£0.38 £0.32
23	WE27105900 Available to backorder	Taxle Bracket	£4.14 £3.45
24	WE27122800 Available to backorder	Manual Deflector	£91.92 £76.60
25	2188 In stock	Bolt 5.16 UNF X 1 3.4 BZP	£0.71 £0.59
