Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 05 Seat And Rear Body

Name: Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 05 Seat And Rear Body
SKU: k125k15_01011991_01011992_05-group
Price: 0.26 GBP
Availability: InStock

Part No. k125k15_01011991_01011992_05-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 05 Seat And Rear Body

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

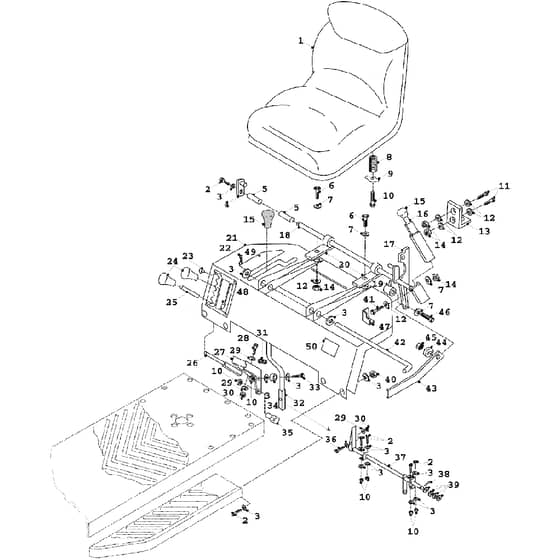

05 Seat And Rear Body Assembly Parts Diagram

	Part No.	Details
2	2141 In stock	Set Screw	£0.38 £0.32
3	2106 In stock	Set Screw	£0.48 £0.40
4	WE32704800 In stock	PTO Pivot End	£43.37 £36.14
5	WE18831500 Available to backorder	PTO End Tube	£4.87 £4.06
7	WE08822800 Available to backorder	Washer 3.8 T4 Z.P	£0.31 £0.26
8	WE25858100 Available to backorder	Spring Sliding Seat	£12.52 £10.43
10	2094 In stock	Nyloc Nut 5.16 UNF	£0.48 £0.40
12	2110 In stock	Washer 3.8 T3 Z.P	£0.48 £0.40
13	WE29200101 Available to backorder	Tow Bracket	£86.88 £72.40
14	2095 In stock	Nyloc Nut 3.8UNF	£0.48 £0.40
15	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
17	WE30139200 Available to backorder	Sweeper Lift Hook	£33.29 £27.74
21	WE07823700 Available to backorder	3mm L Type R Clip (Large)	£1.21 £1.01
22	WE32701700 Available to backorder	Rear Chassis Box Assembley	£145.08 £120.90
23	WE12823600 Available to backorder	Pop Rivet 1.2 X 3.16	£0.79 £0.66
24	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.84 £14.03
26	WE32708701 Available to backorder	PTO Lever	£51.74 £43.12
27	WE32708601 Available to backorder	PTO Lever Plate	£23.42 £19.52
28	WE01820500 Available to backorder	Bolt 14UNF X 1.12	£0.65 £0.54
29	2010 Available to backorder	1.4 T4 Hp Washer	£0.48 £0.40
30	2185 Available to backorder	Nyloc Nut1.4UNF	£0.48 £0.40
31	WE25813801 Available to backorder	Safety Switch Spring	£10.31 £8.59
32	WE32702600 Available to backorder	Gear Change Lever Assy	£82.68 £68.90
33	WE01820700 Available to backorder	Bolt 5.16UNF X 1.1.2 HT Z.P	£0.54 £0.45
34	WE31302500 Available to backorder	Spacer 20mm X 5.16Id	£3.50 £2.92
35	WE18806100 Available to backorder	Trunion (PTO Engage)	£7.70 £6.42
37	WE32700400 Available to backorder	Gear Change Crossover Assy	£94.68 £78.90
38	2197 In stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
39	2114 In stock	Washer - M12 X 24 X 1.6	£0.48 £0.40
41	2145 Available to backorder	Bolt 3.8 X 2.1.2	£1.20 £1.00
43	WE29200300 Available to backorder	Sweeper Link Arm	£14.56 £12.13
44	WE189502700 Available to backorder	Spacer 12.7Od. 10.2 Id . 9mm L	£28.09 £23.41
45	WE049381500 Available to backorder	38 UNF Half Nut Bright Zinc Finish	£0.41 £0.34
50	WE35803600 Available to backorder	Gear Select Label	£4.18 £3.48
