Countax K12.5 K15 - - 27 Powered Grass Collector 1995

Name: Countax K12.5 K15 - - 27 Powered Grass Collector 1995
SKU: k125k15___27-group
Price: 0.28 GBP
Availability: InStock

Part No. k125k15___27-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K15 - - 27 Powered Grass Collector 1995

Description

Countax K Series

K12.5 K15 - Tractor

From To -

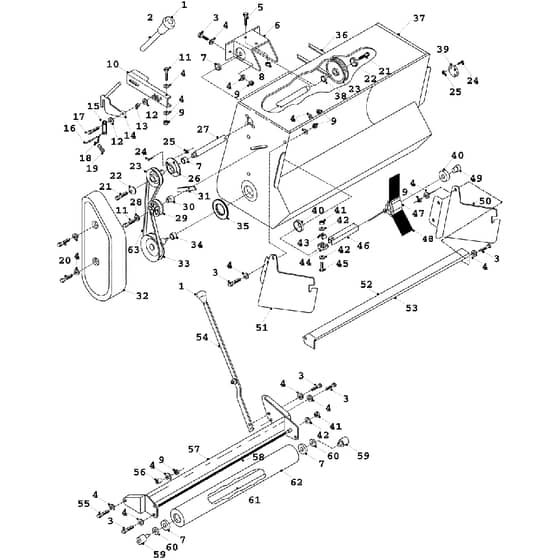

27 Powered Grass Collector 1995 Parts Diagram

	Part No.	Details
1	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
2	WE40403100 Available to backorder	Sweeper Locking Lever Tool	£3.02 £2.52
3	2141 In stock	Set Screw	£0.38 £0.32
4	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
5	WE01902300 Available to backorder	Shcs M61 X 20 Drilled 306686	£0.40 £0.33
7	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
8	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
9	2094 In stock	Nyloc Nut 5.16 UNF	£0.48 £0.40
11	2186 Available to backorder	Bolt 5.16UNF X 2 Zinc.Clear Un	£1.08 £0.90
12	8418 In stock	Nylon Washer	£0.48 £0.40
13	WE31302800 Available to backorder	Spacer 7mm X 5.16Id	£10.14 £8.45
16	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 103	£0.35 £0.29
17	2183 In stock	Bolt 5.16UNF X 1.1.4 HT Z.P	£0.58 £0.48
19	WE06849100 In stock	2mm R Clip	£0.48 £0.40
20	WE01821200 In stock	Bolt 5.16 X 2.3.4	£1.21 £1.01
21	2189 Available to backorder	Bolt 3.8 X 3.4 HT	£0.94 £0.78
22	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
23	WE32727600 Available to backorder	3 Pulley (Non Keyed)	£24.25 £20.21
24	7274 In stock	M5 X 16mm Pozi Pan	£0.48 £0.40
25	2047 In stock	Nut	£0.34 £0.28
26	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
27	WE18309200 Available to backorder	Idler Shaft	£35.69 £29.74
28	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
29	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
30	WE31350400 Available to backorder	Sweeper Jockey Spacer	£13.39 £11.16
31	WE30121900 Available to backorder	Bearing Shield	£4.04 £3.37
32	WE148005400 In stock	Belt Guard C & 20.5	£65.05 £54.21
34	WE10845500 In stock	Bearing 6203Zz	£14.17 £11.81
36	WE22873400 Available to backorder	PTO Beltspz 1212 9331-01212	£24.06 £20.05
38	WE31306200 Available to backorder	PTO End Spacer	£36.54 £30.45
39	WE30117500 Available to backorder	Sweeper Bearing Cap	£7.20 £6.00
40	WE32121800 In stock	Slinger	£16.93 £14.11
41	2185 Available to backorder	Nyloc Nut1.4UNF	£0.48 £0.40
42	2010 Available to backorder	1.4 T4 Hp Washer	£0.48 £0.40
43	WE14834100 In stock	Brush Drive Moulding Small	£4.57 £3.81
44	WE14832900 In stock	Brush Drive Moulding Large	£4.60 £3.83
45	WE01832400 Available to backorder	Bolt 1.4 X 1 3.4	£1.44 £1.20
46	WE17400200 In stock	Brush Stock	£34.27 £28.56
47	WE14833000 In stock	Bristle Boss	£2.20 £1.83
48	WE14898101 In stock	Yellow Sweeper Bristles Non We	£1.52 £1.27
49	WE31323900 In stock	Brush Stock Spindle (Short)	£39.13 £32.61
54	WE32713800 Available to backorder	Tractor Brush Height Lever C.W	£63.72 £53.10
56	WE31350600 Available to backorder	Roller Plate Bush	£4.49 £3.74
58	WE52830900 Available to backorder	Cable Scraper Complete With Ad	£27.95 £23.29
59	WE31350700 Available to backorder	Roller Shaft Bush	£19.54 £16.28
60	WE088002600 Available to backorder	Zinc Plated M16 Washer Form B	£0.95 £0.79
61	WE31300800 Available to backorder	Roller Shaft (Internal)K-Serie	£73.68 £61.40
62	WE32704600 Available to backorder	Roller Complete ( K & W )	£189.72 £158.10
63	WE22832800 In stock	Belt Sweeper V-Type A36	£23.96 £19.97
