Countax K12.5 K14 (Single) - From 01-01-1991 To 01-01-1992 - 25 Steering Console

Name: Countax K12.5 K14 (Single) - From 01-01-1991 To 01-01-1992 - 25 Steering Console
SKU: k125k14single_01011991_01011992_25-group
Price: 0.28 GBP
Availability: InStock

Part No. k125k14single_01011991_01011992_25-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K14 (Single) - From 01-01-1991 To 01-01-1992 - 25 Steering Console

Description

Countax K Series

K12.5 K14 (SINGLE) - Tractor

From 01-01-1991 To 01-01-1992

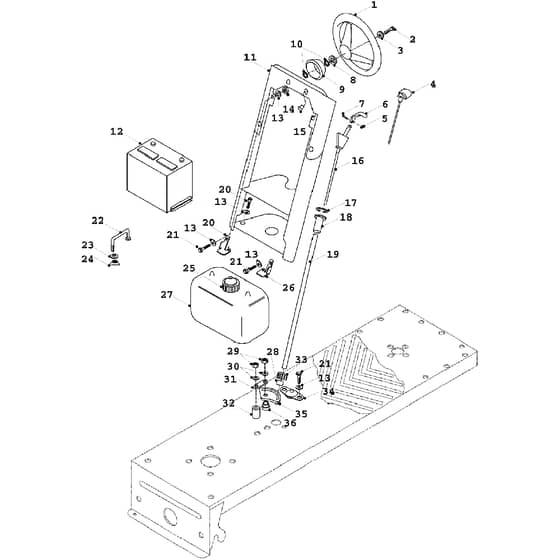

25 Steering Console Assembly Parts Diagram

	Part No.	Details
1	WE149591300 Available to backorder	Steering Wheel Assy (2013)	£164.64 £137.20
2	2146 In stock	Set Screw	£0.50 £0.42
3	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
4	WE52810300 In stock	Choke Control	£19.36 £16.13
5	2047 In stock	Nut	£0.34 £0.28
6	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.84 £14.03
7	WE02821800 Available to backorder	Frame Weldment Cl125 520025H	£0.48 £0.40
10	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
13	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
15	WE12824100 Available to backorder	Pop Rivet 4mm X12mm	£0.35 £0.29
16	WE528004900 Available to backorder	Throttle Control B & S Twin Cy	£150.96 £125.80
17	2016 In stock	E Clip 1.2	£0.86 £0.72
18	WE149588800 Available to backorder	Steering Column Upper Bush	£3.46 £2.88
19	WE31328400 Available to backorder	Steering Column C-Series	£94.32 £78.60
20	WE307187400 Available to backorder	2002 Fuel Tank Brkt	£10.15 £8.46
21	2141 In stock	Set Screw	£0.38 £0.32
22	WE313008500 Available to backorder	Battery Clamp	£23.56 £19.63
23	2010 Available to backorder	1.4 T4 Hp Washer	£0.48 £0.40
24	WE04822600 Available to backorder	Wingnut 1.4Bsw	£1.01 £0.84
25	WE01538400 In stock	Fuel Cap	£18.22 £15.18
27	WE20870800 Available to backorder	3 Pulley (Capitol)	£70.68 £58.90
28	WE08822700 Available to backorder	Washer 5.8 T3 Lp	£1.00 £0.83
29	2095 In stock	Nyloc Nut 3.8UNF	£0.48 £0.40
30	2110 In stock	Washer 3.8 T3 Z.P	£0.48 £0.40
32	WE31337500 Available to backorder	Steering Support Boss	£31.14 £25.95
33	WE31302300 Available to backorder	Steering Pinion	£186.72 £155.60
34	WE10801700 In stock	Column Lower Bearing	£27.23 £22.69
35	WE18801400 Available to backorder	15T K.C Series Steering Quadra	£289.32 £241.10
36	WE31337400 Available to backorder	Steering Rack Pivot	£25.37 £21.14
