Countax K12.5 K14 (Single) - From 01-01-1991 To 01-01-1992 - 17 Seat And Rear Body

Name: Countax K12.5 K14 (Single) - From 01-01-1991 To 01-01-1992 - 17 Seat And Rear Body
SKU: k125k14single_01011991_01011992_17-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K14 (Single) - From 01-01-1991 To 01-01-1992 - 17 Seat And Rear Body

Description

Countax K Series

K12.5 K14 (SINGLE) - Tractor

From 01-01-1991 To 01-01-1992

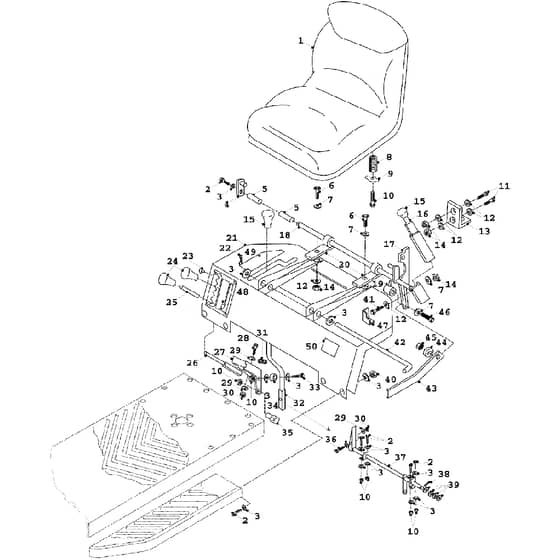

17 Seat And Rear Body Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	2141 In stock	Set Screw	£0.64 £0.53
3	2106 In stock	Set Screw	£0.30 £0.25
4	WE32704800 Available to backorder	PTO Pivot End	£44.14 £36.78
5	WE18831500 Available to backorder	PTO End Tube	£4.70 £3.92
7	WE08822800 Available to backorder	Washer 3.8 T4 Z.P	£0.31 £0.26
8	WE25858100 Available to backorder	Spring Sliding Seat	£12.10 £10.08
10	2094 Available to backorder	Nyloc Nut 5.16 UNF	£0.26 £0.22
12	2110 Available to backorder	Washer 3.8 T3 Z.P	£0.14 £0.12
13	WE29200101 Available to backorder	Tow Bracket	£86.90 £72.42
14	2095 In stock	Nyloc Nut 3.8UNF	£0.48 £0.40
15	WE14804800 Available to backorder	Lever Knob	£7.48 £6.23
17	WE30139200 Available to backorder	Sweeper Lift Hook	£32.18 £26.82
21	WE07823700 Available to backorder	3mm L Type R Clip (Large)	£1.18 £0.98
22	WE32701700 Available to backorder	Rear Chassis Box Assembley	£145.07 £120.89
23	WE12823600 Available to backorder	Pop Rivet 1.2 X 3.16	£0.77 £0.64
24	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.28 £13.57
26	WE32708701 Available to backorder	PTO Lever	£50.02 £41.68
27	WE32708601 Available to backorder	PTO Lever Plate	£22.64 £18.87
28	WE01820500 Available to backorder	Bolt 14UNF X 1.12	£0.64 £0.53
29	2010 In stock	1.4 T4 Hp Washer	£0.35 £0.29
30	2185 Available to backorder	Nyloc Nut1.4UNF	£0.60 £0.50
31	WE25813801 Available to backorder	Safety Switch Spring	£10.48 £8.73
32	WE32702600 Available to backorder	Gear Change Lever Assy	£82.70 £68.92
33	WE01820700 Available to backorder	Bolt 5.16UNF X 1.1.2 HT Z.P	£0.53 £0.44
34	WE31302500 Available to backorder	Spacer 20mm X 5.16Id	£3.38 £2.82
35	WE18806100 Available to backorder	Trunion (PTO Engage)	£7.46 £6.22
37	WE32700400 Available to backorder	Gear Change Crossover Assy	£94.70 £78.92
38	2197 Available to backorder	Split Pin 1 X 1.8 (Snowblade)	£0.47 £0.39
39	2114 In stock	Washer - M12 X 24 X 1.6	£0.47 £0.39
41	2145 Available to backorder	Bolt 3.8 X 2.1.2	£1.00 £0.83
43	WE29200300 Available to backorder	Sweeper Link Arm	£14.08 £11.73
44	WE189502700 Available to backorder	Spacer 12.7Od. 10.2 Id . 9mm L	£27.16 £22.63
45	WE049381500 Available to backorder	38 UNF Half Nut Bright Zinc Finish	£0.40 £0.33
50	WE35803600 Available to backorder	Gear Select Label	£4.04 £3.37
