Countax K12.5 K14 (Single) - From 01-01-1991 To 01-01-1992 - 08 Bonnet

Name: Countax K12.5 K14 (Single) - From 01-01-1991 To 01-01-1992 - 08 Bonnet
SKU: k125k14single_01011991_01011992_08-group
Price: 0.29 GBP
Availability: InStock

Part No. k125k14single_01011991_01011992_08-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K14 (Single) - From 01-01-1991 To 01-01-1992 - 08 Bonnet

Description

Countax K Series

K12.5 K14 (SINGLE) - Tractor

From 01-01-1991 To 01-01-1992

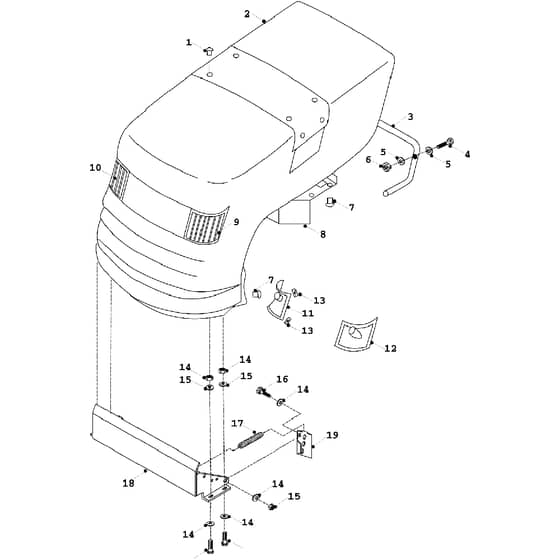

08 Bonnet Assembly Parts Diagram

	Part No.	Details
1	WE12824100 Available to backorder	Pop Rivet 4mm X12mm	£0.35 £0.29
4	WE01820500 Available to backorder	Bolt 14UNF X 1.12	£0.65 £0.54
5	2010 Available to backorder	1.4 T4 Hp Washer	£0.48 £0.40
6	2185 Available to backorder	Nyloc Nut1.4UNF	£0.48 £0.40
7	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.30 £1.08
8	WE32702900 Available to backorder	Bonnet Insert Assembly	£48.37 £40.31
13	WE11824300 Available to backorder	Spire Clip	£0.40 £0.33
14	2094 In stock	Nyloc Nut 5.16 UNF	£0.48 £0.40
15	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
16	2146 In stock	Set Screw	£0.50 £0.42
17	WE25805200 Available to backorder	Spring	£13.39 £11.16
18	WE32730100 Available to backorder	Bonnet Hinge Assy C-Series	£69.96 £58.30
19	WE27103300 Available to backorder	5 V Groove Idler	£5.57 £4.64
19	WE27113600 Available to backorder	Bonnet Hinge Stop R.H	£6.49 £5.41
