Countax K12.5 K14 (Single) - - 10 Seat

Name: Countax K12.5 K14 (Single) - - 10 Seat
SKU: k125k14single___10-group
Price: 0.12 GBP
Availability: InStock

Description

Countax K Series

K12.5 K14 (Single) - Tractor

From To -

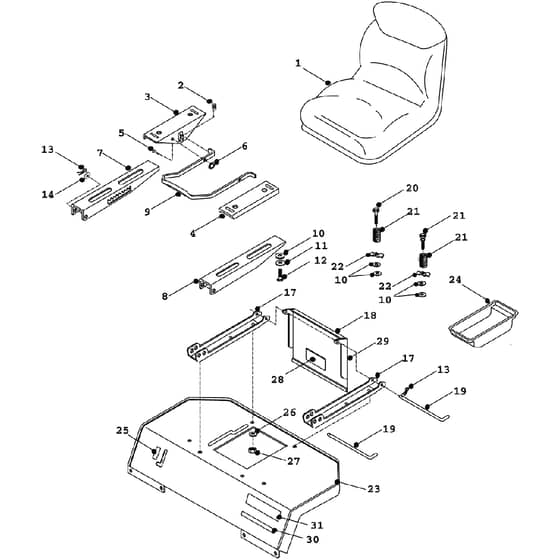

10 Seat Assembly Parts Diagram

	Part No.	Details
2	WE25831100 Available to backorder	Spring	£7.52 £6.27
4	WE30118000 Available to backorder	Seat Plate Adjuster LH	£8.26 £6.88
5	WE012885800 Available to backorder	Rivet 1.4 X 1.2 Bz	£0.35 £0.29
6	WE07868700 Available to backorder	1.4 Starloc Washer	£0.54 £0.45
7	WE30117700 Available to backorder	Adjustable Seat Channel R.H	£16.22 £13.52
8	WE30117800 Available to backorder	Adjustable Seat Channel L.H	£16.22 £13.52
9	WE30203100 Available to backorder	Seat Handle	£13.18 £10.98
10	WE08925400 Available to backorder	M8 X 40 X 3mm Heavy Guage Wash	£0.48 £0.40
11	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
12	WE02825200 Available to backorder	Bolt 3.8UNC X 3.4In	£2.58 £2.15
13	WE06849100 Available to backorder	2mm R Clip	£0.60 £0.50
14	WE08819500 Available to backorder	Washer 5.16 T3 Lp Zinc Plated	£1.25 £1.04
18	WE178967000 Available to backorder	PTO Belt Guard Kit C.A.D Serie	£55.25 £46.04
19	WE31301800 Available to backorder	Seat Pivot Rod	£34.58 £28.82
20	2065 In stock	Pull Rod Spring Sleeve 302601	£0.70 £0.58
21	WE25858100 Available to backorder	Spring Sliding Seat	£12.10 £10.08
24	WE14848500 Available to backorder	Tool Tray	£24.70 £20.58
25	WE35882700 Available to backorder	Eng.Disengage Label	£3.48 £2.90
26	2095 In stock	Nyloc Nut 3.8UNF	£0.48 £0.40
27	2110 Available to backorder	Washer 3.8 T3 Z.P	£0.14 £0.12
28	WE35891200 Available to backorder	Sweeper Belt Decal (Symbols On	£5.70 £4.75
29	WE35809500 Available to backorder	PTO Danger Label	£31.04 £25.87
