Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 11 Handbrake

Description

Countax JCB

JCB D2050 - Tractor

From 01-01-2004 To 01-01-2006

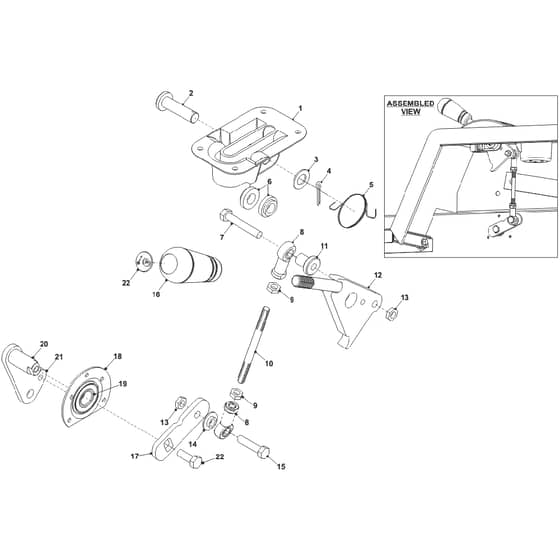

11 Handbrake Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE148014000 Available to backorder	C Series 2002 Hanbrake Block	£11.62 £9.68
2	WE31339401 In stock	Deck Swing Lift Pin 1.2 X 46.5	£19.64 £16.37
3	2114 In stock	Washer - M12 X 24 X 1.6	£0.47 £0.39
4	2197 Available to backorder	Split Pin 1 X 1.8 (Snowblade)	£0.47 £0.39
5	WE258000600 Available to backorder	Spring -Handbrake Block Torsio	£4.99 £4.16
6	WE149498000 Available to backorder	C Series Handbrake Mechanism N	£6.76 £5.63
7	8416 In stock	Bolt M8 X 50mm	£1.19 £0.99
8	WE10896200 Available to backorder	M8 X M8 Rod End R.H.Thread Fem	£23.60 £19.67
10	WE321124300 Available to backorder	C Series Handbrake Handle Weld	£80.06 £66.72
11	WE18321000 Available to backorder	Rider Deck Hanging Bracket Piv	£3.64 £3.03
12	WE318955700 Available to backorder	Handbrake Lever Linkage Rod	£33.05 £27.54
13	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
14	WE183529500 Available to backorder	C-Series Deck Lift Pivot Space	£11.14 £9.28
15	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor	£1.50 £1.25
16	WE149557300 Available to backorder	Handbrake Handle	£15.04 £12.53
17	WE307196000 Available to backorder	Hanbrake Outer Conrod Connecti	£21.66 £18.05
18	WE301048100 Available to backorder	Tractor Pedal Cassette Bearing	£51.02 £42.52
19	WE10811600 In stock	Bearing (PTO Housing)	£16.34 £13.62
21	WE359505100 Available to backorder	H.Brake Handle Badge	£6.88 £5.73
22	7746 In stock	Bolt M8 X 25mm	£0.38 £0.32
