Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 09 PTO

Name: Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 09 PTO
SKU: jcbd2050_01012004_01012006_09-group
Price: 0.28 GBP
Availability: InStock

Part No. jcbd2050_01012004_01012006_09-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 09 PTO

Description

Countax JCB

JCB D2050 - Tractor

From 01-01-2004 To 01-01-2006

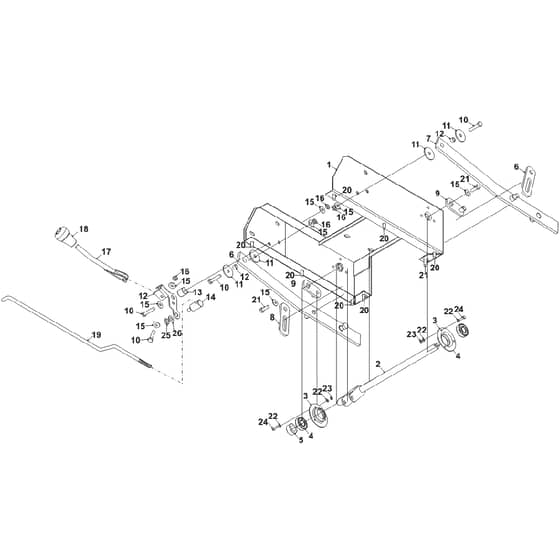

09 Pto Assembly Parts Diagram

	Part No.	Details
2	WE327009400 In stock	20.50 Sweeper Lift Bar	Was £104.74 £87.28 Special Price £75.41 £62.84
3	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
4	WE10845500 In stock	Bearing 6203Zz	£14.17 £11.81
5	WE31323500 Available to backorder	H.E Lift Bar Spacer	£20.44 £17.03
6	WE32720300 Available to backorder	H.E. Sweeper Lift Arm R.H	£132.48 £110.40
7	WE32721100 Available to backorder	H.E. Sweper Lift Arm L.H	£109.32 £91.10
9	WE327171600 Available to backorder	RH Sweep Lift Crossbar Con Pl	£40.06 £33.38
10	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
13	WE31329200 Available to backorder	C-Series Roller Plate Bush	£33.17 £27.64
14	WE18806100 Available to backorder	Trunion (PTO Engage)	£7.70 £6.42
15	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
16	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
17	WE32708701 Available to backorder	PTO Lever	£51.74 £43.12
18	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
19	WE313010800 Available to backorder	Rod	£105.36 £87.80
20	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
21	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
23	2047 In stock	Nut	£0.34 £0.28
25	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
26	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
