Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 08 Pedal

Description

Countax JCB

JCB D2050 - Tractor

From 01-01-2004 To 01-01-2006

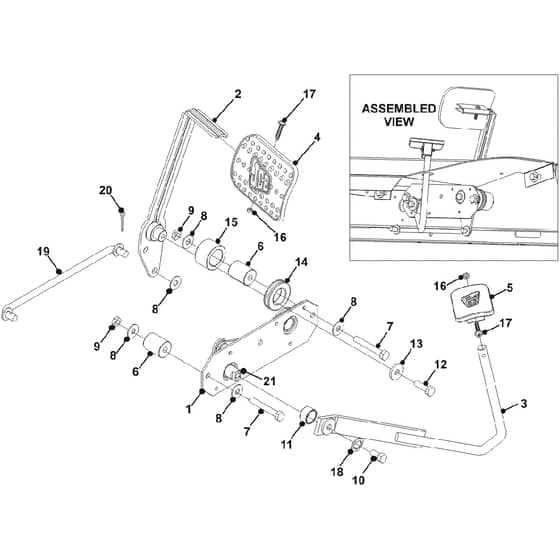

08 Pedal Parts Diagram

	Part No.	Details
1	WE409429500 Available to backorder	A.D.K.C Series Pedal Cassette	£199.92 £166.60
2	WE327362600 Available to backorder	C Series 2003 Forward Pedal We	£49.63 £41.36
6	WE187186200 Available to backorder	2050 Cassette.Chassis Spacer	£2.92 £2.43
7	8416 In stock	Bolt M8 X 50mm	£0.46 £0.38
8	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
9	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
10	6872 In stock	M8 X 16 M.Screw BZP	£0.48 £0.40
11	WE31330002 Available to backorder	Roller Shaft Spacer	£21.96 £18.30
12	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
13	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
14	WE52848000 Available to backorder	Grommet Large	£1.82 £1.52
15	WE183020700 Available to backorder	D1850 Transaxle Spacer Short	£6.31 £5.26
16	2047 In stock	Nut	£0.34 £0.28
17	2115 Available to backorder	Flanged Button Head Bolt - V20	£0.48 £0.40
18	6408 In stock	M8 Internally Serrated Shakepr	£0.48 £0.40
19	WE327362700 Available to backorder	2003 Adk Fwd Rev Cassette Rod Assy	£36.66 £30.55
20	2197 In stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
