Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 07 Chassis

Name: Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 07 Chassis
SKU: jcbd2050_01012004_01012006_07-group
Price: 0.32 GBP
Availability: InStock

Part No. jcbd2050_01012004_01012006_07-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 07 Chassis

Description

Countax JCB

JCB D2050 - Tractor

From 01-01-2004 To 01-01-2006

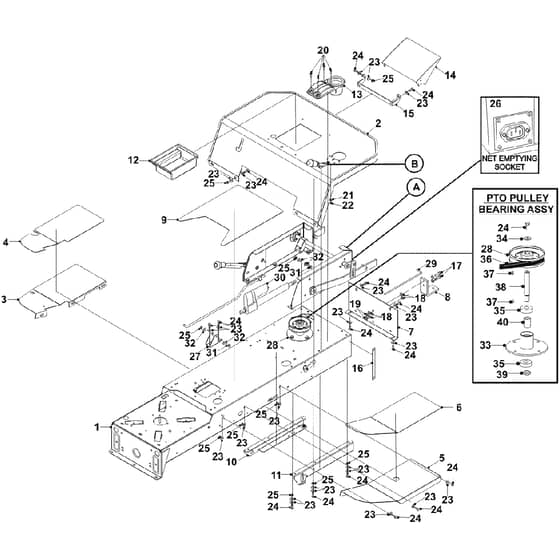

07 Chassis Parts Diagram

	Part No.	Details
3	WE3010548Y0 Available to backorder	R.H Running Board D2050 Jcb	£74.16 £61.80
4	WE148007300 Available to backorder	Yr 2000 2050 RH Running Mat	£17.83 £14.86
5	WE3010693Y0 Available to backorder	L.H Running Board D2050 Jcb	£73.44 £61.20
6	WE148007200 Available to backorder	Yr 2000 2050 LH Running Mat	£35.59 £29.66
7	WE301041600 Available to backorder	20.50 Rear Chassis Panel	£42.00 £35.00
8	WE29200101 Available to backorder	Tow Bracket	£86.88 £72.40
9	WE148007400 Available to backorder	Yr 2000 2050 Centre Running Bo	£25.31 £21.09
10	WE327179600 Available to backorder	K1850 LH Transaxle Bracket Wel	£96.00 £80.00
11	WE327179700 Available to backorder	K1850 RH Transaxle Bracket Wel	£96.00 £80.00
12	WE148003700 Available to backorder	He Series Toolbox	£25.79 £21.49
13	WE148013900 Available to backorder	C Series 2002 Cup Holder	£23.18 £19.32
14	WE149496300 Available to backorder	PTO Flap - Tractor He (Pla	£59.81 £49.84
15	WE301126000 Available to backorder	PTO Flap Hinge Brkt	£3.98 £3.32
16	WE301140300 Available to backorder	Stainless Steel Wearstrip	£8.32 £6.93
17	8984 In stock	Screw Hex Hd Din933 M10 X 30	£0.48 £0.40
18	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
19	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
20	WE019479400 Available to backorder	M6 X 20mm Lng Sckt Hd Cap Scre	£0.68 £0.57
21	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
23	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
24	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
25	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
26	WE448004800 Available to backorder	Net Empting Actuator Loom A20.	£62.76 £52.30
27	WE302005600 Available to backorder	20.50 Rear Lift Actuator Mount	£32.23 £26.86
28	WE208000400 Available to backorder	5 PTO Pulley	£43.03 £35.86
29	WE313020100 Available to backorder	C-Series Dump Valve Lever Rod	£24.54 £20.45
30	WE448005800 Available to backorder	Actuator Warner La10	£1,307.47 £1,089.56
31	WE02941000 Available to backorder	Shield Wdecals 98083	£0.68 £0.57
32	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
33	WE40835800 Available to backorder	PTO Bearing Housing MK3 Comp.	£279.96 £233.30
34	WE08819800 In stock	Washer 5.16Id X 1Od Hd	£21.10 £17.58
35	WE10802200 In stock	Front Wheel Bearing	£4.60 £3.83
36	WE228001401 Available to backorder	PTO Belt	£69.24 £57.70
37	WE09823900 In stock	Key No 61	£0.48 £0.40
38	WE183013700 Available to backorder	D18.50 Deisel PTO Shaft	£91.32 £76.10
39	WE31306200 Available to backorder	PTO End Spacer	£36.54 £30.45
40	WE31334800 Available to backorder	Spacer PTO Centre	£24.62 £20.52
