Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 06 Pulley

Name: Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 06 Pulley
SKU: jcbd2050_01012004_01012006_06-group
Price: 0.32 GBP
Availability: InStock

Part No. jcbd2050_01012004_01012006_06-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Jcb D2050 - From 01-01-2004 To 01-01-2006 - 06 Pulley

Description

Countax JCB

JCB D2050 - Tractor

From 01-01-2004 To 01-01-2006

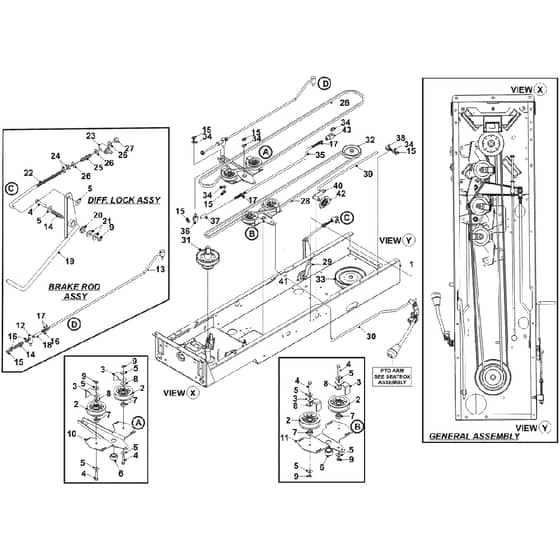

06 Pulley Assembly Parts Diagram

	Part No.	Details
2	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
3	WE307187100 Available to backorder	Belt Keeper	£17.66 £14.72
4	WE02941000 Available to backorder	Shield Wdecals 98083	£0.68 £0.57
5	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
7	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
8	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
9	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
10	WE307197000 Available to backorder	2003 Diesel Clutch Jockey Plat	£63.48 £52.90
11	WE307197100 Available to backorder	2003 Diesel PTO Jockey Plate	£57.43 £47.86
12	WE183019000 Available to backorder	20.50 Jockey Plate Trunnion	£24.72 £20.60
13	WE327178900 Available to backorder	K1850 Brake Rod Welded Assembl	£101.76 £84.80
15	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
16	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
17	WE049383800 Available to backorder	M6 Nyloc Flange Nut	£0.47 £0.39
18	WE183019100 Available to backorder	20.50 Brake Rod Tube	£13.80 £11.50
19	WE321122200 Available to backorder	20.50 Pedal Plate Assy	£32.40 £27.00
20	WE31306200 Available to backorder	PTO End Spacer	£36.54 £30.45
21	2539 In stock	M10 X 24 X 2 Tl Washer	£0.48 £0.40
22	WE313010400 Available to backorder	20.50 Diff Lock Control Rod	£56.46 £47.05
23	WE183019800 Available to backorder	D1850 Diff Lock Spring Trunnio	£5.82 £4.85
25	WE259405200 Available to backorder	Diff Spring A2050	£4.60 £3.83
26	2110 In stock	Washer 3.8 T3 Z.P	£0.48 £0.40
28	WE228001401 Available to backorder	A98 Clutching Belt	£69.24 £57.70
29	WE328957000 Available to backorder	Handbrake Bearing Link Shaft W	£29.69 £24.74
30	WE313010800 Available to backorder	Rod	£105.36 £87.80
32	WE20904400 Available to backorder	20.50 Hydrostatic Box Pulley	£29.89 £24.91
33	WE20870702 Available to backorder	7 PTO Pulley	£86.52 £72.10
35	WE318955800 Available to backorder	D1850 Hbrake.Clutch Jockey Plt	£92.16 £76.80
36	WE187186100 Available to backorder	MK3 Park Brake Engage Rod Trun	£8.53 £7.11
37	WE174008900 Available to backorder	MK3 Park Brake Engage Rod Slee	£22.06 £18.38
39	WE313018600 Available to backorder	A20.50 Tx Rod	£67.20 £56.00
40	WE327022200 Available to backorder	20.50 Brake Link Bracket	£81.00 £67.50
41	WE301048100 Available to backorder	Tractor Pedal Cassette Bearing	£52.78 £43.98
42	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
43	WE108000600 Available to backorder	10mm X 1.5 Clevis Short	£16.22 £13.52
