Countax Jcb D2050 - 01 Main Bonnet

Name: Countax Jcb D2050 - 01 Main Bonnet
SKU: jcbd2050___01-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Countax JCB

JCB D2050 - Tractor

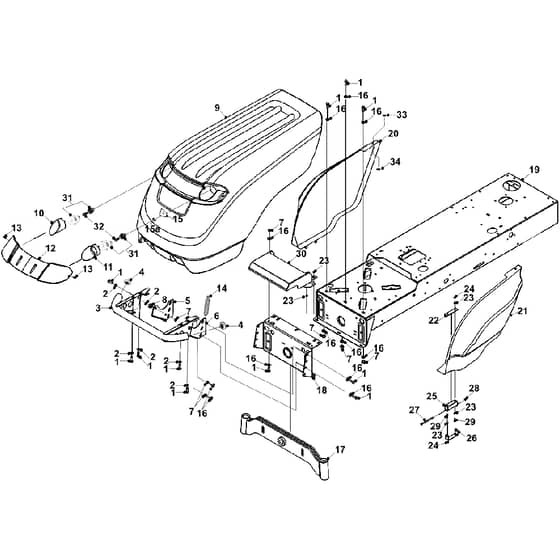

01 Main Bonnet Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	7746 In stock	Bolt M8 X 25mm	£0.38 £0.32
2	WE08819500 Available to backorder	Washer 5.16 T3 Lp Zinc Plated	£1.25 £1.04
3	WE328956800 Available to backorder	Stainless Bull Bar Dk & Jcb 04	£193.52 £161.27
4	WE148014400 Available to backorder	Stainless Steel Bullbar Plasti	£1.14 £0.95
5	WE302015200 Available to backorder	D1850 Bonnet Bracket Side Plat	£23.28 £19.40
6	WE302015300 Available to backorder	D1850 Bonnet Bracket Side Plat	£10.46 £8.72
7	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
8	WE183017700 Available to backorder	Foot Control Clutch Pedal Pivo	£4.24 £3.53
9	WE148016000 Available to backorder	Diesel Bonnet Jcb Yellow 2003	£380.40 £317.00
10	WE148013600 Available to backorder	C Series RH Light Can -2002	£2.90 £2.42
11	WE148013500 Available to backorder	C Series LH Light Can -2002	£4.06 £3.38
12	WE148013400 Available to backorder	C Series Bonnet Lens 2002	£40.34 £33.62
13	WE18005100 Available to backorder	M4 X 16 Sckt Hd Counter Sunk S	£0.41 £0.34
14	WE25805200 Available to backorder	Spring	£12.94 £10.78
15	WE148012300 Available to backorder	Fir Tree Fixing For V2050 - Fr (15a)	£3.42 £2.85
16	2192 In stock	Washer - M8 X 21 X 1.6	£0.47 £0.39
17	WE327169300 Available to backorder	D1850 Front Axle Welded Assy	£210.96 £175.80
18	WE327014600 Available to backorder	Universal Front Axle Plate Ass	£191.22 £159.35
20	WE148015900 Available to backorder	RH Side Panel For D1850 & K185	£219.12 £182.60
21	WE148015800 Available to backorder	LH Side Panel For D1850 & K185	£82.58 £68.82
24	2047 In stock	Nut	£0.90 £0.75
26	WE301142600 Available to backorder	A+K Series Side Panel Hinge Lo	£4.74 £3.95
27	WE018005800 Available to backorder	M6 X 85 Hex Head Bolt-Bright Z	£0.56 £0.47
28	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
30	WE301059100 Available to backorder	1850 Diesel Exhaust Heat Shiel	£90.68 £75.57
31	WE448008400 Available to backorder	Light - C Series 2002 2Ba 008	£54.02 £45.02
32	WE448008500 In stock	Bulb - C Series 2002 Py21W	Was £6.14 £5.12 Special Price £4.08 £3.40
33	WE149501800 Available to backorder	Dzus 1.4 Turn Alpha Console Wr	£1.36 £1.13
34	WE149500000 Available to backorder	Dzus 1.4 Turn Retain Washer	£2.10 £1.75
