Countax Jcb D2050 - 11 Handbrake

Name: Countax Jcb D2050 - 11 Handbrake
SKU: jcbd2050___11-group
Price: 0.38 GBP
Availability: InStock

Part No. jcbd2050___11-group

Description

Countax JCB

JCB D2050 - Tractor

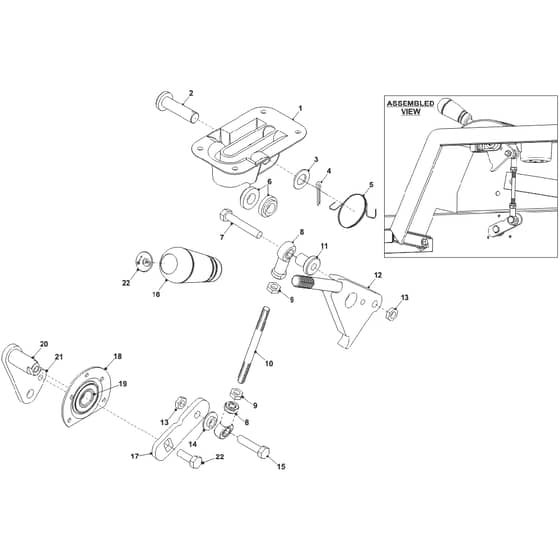

11 Handbrake Assembly Parts Diagram

	Part No.	Details
1	WE148014000 Available to backorder	C Series 2002 Hanbrake Block	£12.01 £10.01
2	WE31339401 In stock	Deck Swing Lift Pin 1.2 X 46.5	£21.05 £17.54
3	2114 In stock	Washer - M12 X 24 X 1.6	£0.48 £0.40
4	2197 In stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
5	WE258000600 Available to backorder	Spring -Handbrake Block Torsio	£5.16 £4.30
6	WE149498000 Available to backorder	C Series Handbrake Mechanism N	£7.00 £5.83
7	8416 In stock	Bolt M8 X 50mm	£0.46 £0.38
8	WE10896200 Available to backorder	M8 X M8 Rod End R.H.Thread Fem	£24.41 £20.34
10	WE321124300 Available to backorder	C Series Handbrake Handle Weld	£80.04 £66.70
11	WE18321000 Available to backorder	Rider Deck Hanging Bracket Piv	£3.77 £3.14
12	WE318955700 Available to backorder	Handbrake Lever Linkage Rod	£34.19 £28.49
13	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
14	WE183529500 Available to backorder	C-Series Deck Lift Pivot Space	£11.52 £9.60
15	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor	£1.28 £1.07
16	WE149557300 Available to backorder	Handbrake Handle	£15.56 £12.97
17	WE307196000 Available to backorder	Hanbrake Outer Conrod Connecti	£22.40 £18.67
18	WE301048100 Available to backorder	Tractor Pedal Cassette Bearing	£52.78 £43.98
19	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
21	WE359505100 Available to backorder	H.Brake Handle Badge	£7.12 £5.93
22	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
