Countax Ibs Deck 42" - From 01-01-1995 To 01-01-1996 - 42 Ibs Deck

Name: Countax Ibs Deck 42" - From 01-01-1995 To 01-01-1996 - 42 Ibs Deck
SKU: countax_deck_ibsdeck42_01011995_01011996_42-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Ibs Deck 42" - From 01-01-1995 To 01-01-1996 - 42 Ibs Deck

Description

Countax IBS

IBS DECK 42" - Deck

From 01-01-1995 To 01-01-1996

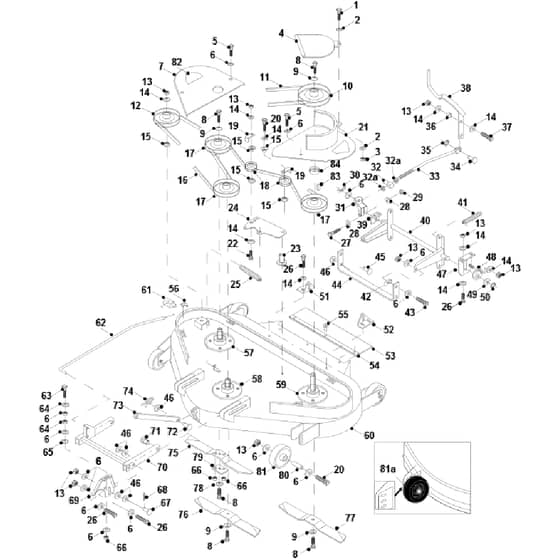

42 Ibs Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2106 In stock	Set Screw	£0.30 £0.25
2	2010 In stock	1.4 T4 Hp Washer	£0.35 £0.29
3	2185 Available to backorder	Nyloc Nut1.4UNF	£0.60 £0.50
4	WE149497400 Available to backorder	Universal Deck Pulley Cover 20	£18.12 £15.10
5	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
6	2192 In stock	Washer - M8 X 21 X 1.6	£0.47 £0.39
8	8419 In stock	Bolt 3.8 X 1 1.4 UNF	£0.68 £0.57
9	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£14.22 £11.85
10	WE20870202 Available to backorder	7 Deck Drive Pulley	£87.78 £73.15
11	WE22949900 Available to backorder	Cutter Belt	£48.50 £40.42
12	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£33.80 £28.17
13	2094 Available to backorder	Nyloc Nut 5.16 UNF	£0.26 £0.22
15	WE18831600 Available to backorder	Spacer Jockey Wheel	£43.90 £36.58
16	WE22928800 Available to backorder	Cutter Deck Belt	£143.36 £119.47
17	WE20869502 In stock	5Internal Pulley.Keyway	£71.62 £59.68
18	WE20811500 In stock	PTO Jockey Pulley	£23.06 £19.22
19	WE307187100 Available to backorder	Belt Keeper	£13.34 £11.12
20	WE01821200 In stock	Bolt 5.16 X 2.3.4	£0.70 £0.58
22	2188 In stock	Bolt 5.16 UNF X 1 3.4 BZP	£0.96 £0.80
23	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£49.72 £41.43
24	WE32731000 Available to backorder	Belt Tension Plate 96	£74.38 £61.98
25	WE25906200 In stock	Deck Tension Spring	£19.78 £16.48
26	2141 In stock	Set Screw	£0.64 £0.53
27	WE01821500 Available to backorder	Bolt 3.8UNF X 2.1.4 HT Z.P	£2.36 £1.97
28	2110 Available to backorder	Washer 3.8 T3 Z.P	£0.14 £0.12
29	2095 In stock	Nyloc Nut 3.8UNF	£0.48 £0.40
30	WE07823700 Available to backorder	3mm L Type R Clip (Large)	£1.18 £0.98
31	WE301122401 Available to backorder	C Series Deck Lift Arm 20 Whee	£22.34 £18.62
32	WE04822200 Available to backorder	Locknut 5.16UNF Hex Z.P (32a)	£0.85 £0.71
32	WE18326700 Available to backorder	Rider Brake Rod Trunnion Hydro	£8.32 £6.93
33	WE32703300 Available to backorder	Deck Height Adjust Yoke	£117.02 £97.52
35	WE07846800 Available to backorder	Circlip 3.8	£0.36 £0.30
36	WE18317400 Available to backorder	Deck Height Pivot Boss	£8.96 £7.47
37	2186 Available to backorder	Bolt 5.16UNF X 2 Zinc.Clear Un	£0.90 £0.75
39	WE307189601 Available to backorder	2003 Rear Deck Hanging Brkt	£28.24 £23.53
40	WE327361700 Available to backorder	2003 Rear Deck Hanging Brktc-S	£113.86 £94.88
41	WE25885300 Available to backorder	Deck Assist Spring	£19.90 £16.58
42	WE18302700 Available to backorder	Spacer	£10.54 £8.78
43	2183 Available to backorder	Bolt 5.16UNF X 1.1.4 HT Z.P	£0.48 £0.40
45	WE31337200 In stock	Deck Lift Pin (Rear)	£13.58 £11.32
46	2114 In stock	Washer - M12 X 24 X 1.6	£0.47 £0.39
47	WE30709200 Available to backorder	Rear Deck Level Bracket	£37.90 £31.58
48	WE30117601 Available to backorder	Rear Deck Level Cam	£24.98 £20.82
49	WE089423700 In stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
50	2147 In stock	E Clip 3.4	£0.88 £0.73
51	WE541039100 Available to backorder	Rear Deck Bracket 4 mm	£14.42 £12.02
53	WE14868900 Available to backorder	Rubber Flap (T.Axle Deflector)	£11.68 £9.73
54	WE541113000 Available to backorder	Sweeper & Combi Deck Flap Stri	£24.82 £20.68
55	WE12860100 Available to backorder	Rivet 4.8 X 16mm Alloy Pop 103	£1.25 £1.04
56	2196 In stock	M8 Captive Nut	£0.76 £0.63
57	WE40503607 In stock	Bearing Housing Assy Short Sha	£115.30 £96.08
59	WE40503507 In stock	Deck Bearing Housing Assy Long	£124.14 £103.45
60	WE32726500 Available to backorder	42 Ibs Deck Shell From 1998 On	£1,336.80 £1,114.00
61	WE189497900 Available to backorder	2002 A Series Deck Level Truni	£19.66 £16.38
62	WE18805900 Available to backorder	Height Adjuster Rod	£28.34 £23.62
63	2182 In stock	M8X70mm Hex Bolt Zinc & Clear	£0.70 £0.58
65	WE08823500 Available to backorder	Starloc Washer 5.16Id X 5.8Od	£0.60 £0.50
66	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
69	WE301040000 Available to backorder	20.50 Deck Lever Bracket	£38.48 £32.07
70	WE32703701 Available to backorder	Deck Carry Cradle Assembly Fro	£178.68 £148.90
71	WE31336800 In stock	Deck Lift Pin (Front)	£39.36 £32.80
72	WE31338200 In stock	Deck Push Rod Pin	£24.40 £20.33
74	2195 In stock	Rue Clip	£0.76 £0.63
75	WE16929000 In stock	17.5 R H Blade	£30.46 £25.38
76	WE16928902 Available to backorder	17.5" Left Hand Blade 1 Hole	£31.80 £26.50
77	WE40505500 Available to backorder	48 Blade Set	£129.96 £108.30
78	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
79	WE27111200 In stock	Deck Pan Tab Washer	£3.90 £3.25
80	WE31337600 In stock	Scuff Wheel Hub. Belt Guard Sp	Was £46.94 £39.12 Special Price £32.86 £27.38
81	WE19905500 In stock	Anti Scalp Wheel 1.2 Bore (Box	£16.32 £13.60
81	WE149495800 In stock	Antiscalp Wheel-March 2000 (81a)	£23.16 £19.30
82	WE35803300 Available to backorder	Rider Deck Danger Decal	£8.24 £6.87
83	2199 In stock	Keyrear Wheel	£2.75 £2.29
84	WE31328301 Available to backorder	Deck Drive Pulley Spacer	£47.18 £39.32
