Countax Ibs Deck 36" - From 01-01-1998 To 01-01-2005 - 36 Ibs Deck

Name: Countax Ibs Deck 36" - From 01-01-1998 To 01-01-2005 - 36 Ibs Deck
SKU: countax_deck_ibsdeck36_01011998_01012005_36-group
Price: 0.29 GBP
Availability: InStock

Part No. countax_deck_ibsdeck36_01011998_01012005_36-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Ibs Deck 36" - From 01-01-1998 To 01-01-2005 - 36 Ibs Deck

Description

Countax IBS

IBS DECK 36" - Deck

From 01-01-1998 To 01-01-2005

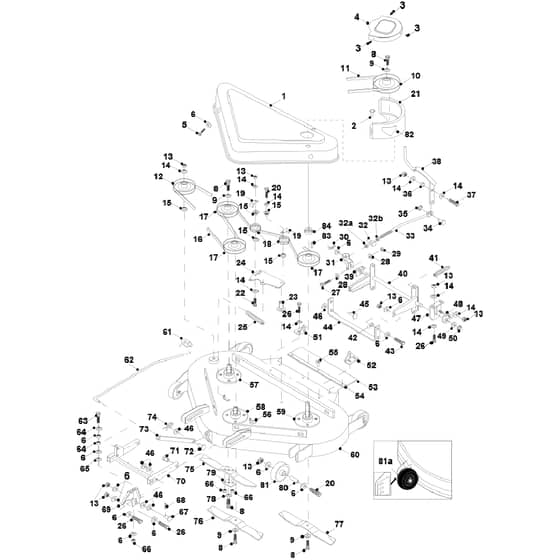

36 Ibs Deck Parts Diagram

	Part No.	Details
1	WE148993100 Available to backorder	36 Ibs Plastic Dck Lid Cover	£126.00 £105.00
2	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.30 £1.08
3	WE4958 In stock	Firtree Fastener	£1.28 £1.07
4	WE149497400 Available to backorder	Universal Deck Pulley Cover 20	£18.74 £15.62
5	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
6	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
8	8419 In stock	Bolt 3.8 X 1 1.4 UNF	£0.72 £0.60
9	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
10	WE20870202 Available to backorder	7 Deck Drive Pulley	£87.84 £73.20
11	WE22949900 Available to backorder	Cutter Belt	£50.17 £41.81
12	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£36.23 £30.19
13	2094 In stock	Nyloc Nut 5.16 UNF	£0.48 £0.40
15	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
16	WE22869800 Available to backorder	Cutter Deck Belt	£66.17 £55.14
17	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
18	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
19	WE307187100 Available to backorder	Belt Keeper	£17.66 £14.72
20	WE01821200 In stock	Bolt 5.16 X 2.3.4	£1.21 £1.01
21	WE327180100 Available to backorder	Hgm.Ibs Deck Pulley Cover Driv	£191.88 £159.90
22	2188 In stock	Bolt 5.16 UNF X 1 3.4 BZP	£0.71 £0.59
23	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£51.43 £42.86
24	WE32731000 Available to backorder	Belt Tension Plate 96	£74.40 £62.00
25	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
26	2141 In stock	Set Screw	£0.38 £0.32
28	2110 In stock	Washer 3.8 T3 Z.P	£0.48 £0.40
29	2095 In stock	Nyloc Nut 3.8UNF	£0.48 £0.40
30	WE07823700 Available to backorder	3mm L Type R Clip (Large)	£1.21 £1.01
31	WE301122401 Available to backorder	C Series Deck Lift Arm 20 Whee	£23.10 £19.25
32	WE04822200 Available to backorder	Locknut 5.16UNF Hex Z.P (32a)	£0.88 £0.73
32	WE18326700 Available to backorder	Rider Brake Rod Trunnion Hydro	£8.60 £7.17
32	7578 In stock	Nut M6 Nyloc (32b)	£0.48 £0.40
33	WE32703300 Available to backorder	Deck Height Adjust Yoke	£117.00 £97.50
35	WE07846800 Available to backorder	Circlip 3.8	£0.37 £0.31
36	WE18317400 Available to backorder	Deck Height Pivot Boss	£9.26 £7.72
37	2186 Available to backorder	Bolt 5.16UNF X 2 Zinc.Clear Un	£1.08 £0.90
39	WE307189601 Available to backorder	2003 Rear Deck Hanging Brkt	£29.21 £24.34
40	WE327361700 Available to backorder	2003 Rear Deck Hanging Brktc-S	£113.88 £94.90
41	WE25885300 Available to backorder	Deck Assist Spring	£19.55 £16.29
42	WE18302700 Available to backorder	Spacer	£10.37 £8.64
43	2183 In stock	Bolt 5.16UNF X 1.1.4 HT Z.P	£0.58 £0.48
45	WE31337200 In stock	Deck Lift Pin (Rear)	£14.56 £12.13
46	2114 In stock	Washer - M12 X 24 X 1.6	£0.48 £0.40
47	WE30709200 Available to backorder	Rear Deck Level Bracket	£39.20 £32.67
48	WE30117601 Available to backorder	Rear Deck Level Cam	£25.84 £21.53
49	WE089423700 Available to backorder	Transaxle Washer 46 X 20 X 2	£1.99 £1.66
50	2147 In stock	E Clip 3.4	£0.91 £0.76
51	WE30121300 In stock	Rear Deck Hanging Bracket R.H	£21.64 £18.03
52	WE30121400 Available to backorder	Rear Deck Hanger Bracket L.H	£21.64 £18.03
53	WE14868900 Available to backorder	Rubber Flap (T.Axle Deflector)	£11.46 £9.55
54	WE541113000 Available to backorder	Sweeper & Combi Deck Flap Stri	£24.41 £20.34
55	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 103	£0.35 £0.29
56	2196 In stock	M8 Captive Nut	£1.25 £1.04
57	WE40503607 In stock	Bearing Housing Assy Short Sha	£119.30 £99.42
59	WE40503507 In stock	Deck Bearing Housing Assy Long	£128.50 £107.08
60	WE32726700 Available to backorder	36 Ibs Deck Shell 1998 To 2008	£990.77 £825.64
61	WE189497900 Available to backorder	2002 A Series Deck Level Truni	£20.34 £16.95
62	WE18805900 Available to backorder	Height Adjuster Rod	£29.32 £24.43
63	2182 In stock	M8X70mm Hex Bolt Zinc & Clear	£0.48 £0.40
65	WE08823500 Available to backorder	Starloc Washer 5.16Id X 5.8Od	£0.61 £0.51
66	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
67	WE31339401 In stock	Deck Swing Lift Pin 1.2 X 46.5	£21.05 £17.54
70	WE32703701 Available to backorder	Deck Carry Cradle Assembly Fro	£186.12 £155.10
71	WE31336800 In stock	Deck Lift Pin (Front)	£38.65 £32.21
72	WE31338200 In stock	Deck Push Rod Pin	£24.84 £20.70
73	WE29203900 Available to backorder	Deck Bar 36	£52.74 £43.95
74	2195 In stock	Rue Clip	£1.25 £1.04
75	WE16929000 In stock	17.5 R H Blade	£32.64 £27.20
76	WE16869001 In stock	Blade 12 L.H Harden	£22.32 £18.60
77	WE40505200 In stock	36 & 38 Blade Kit	£110.62 £92.18
78	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
79	WE27111200 In stock	Deck Pan Tab Washer	£4.18 £3.48
80	WE31337600 In stock	Scuff Wheel Hub. Belt Guard Sp	Was £46.94 £39.12 Special Price £32.86 £27.38
81	WE19905500 In stock	Anti Scalp Wheel 1.2 Bore (Box	£16.61 £13.84
81	WE149495800 In stock	Antiscalp Wheel-March 2000 (81a)	£23.58 £19.65
82	WE35803300 Available to backorder	Rider Deck Danger Decal	£8.52 £7.10
83	2191 In stock	Key 1.4 X 1 Rounded	£0.48 £0.40
84	WE31328301 Available to backorder	Deck Drive Pulley Spacer	£48.80 £40.67
