Countax Hgm Deck 36" - From 01-06-2017 - 36 Hgm Deck

Name: Countax Hgm Deck 36" - From 01-06-2017 - 36 Hgm Deck
SKU: countax_deck_hgmdeck36_01062017_36-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Hgm Deck 36" - From 01-06-2017 - 36 Hgm Deck

Description

Countax HGM

HGM DECK 36" - Deck

From 01-06-2017

36 Hgm Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	WE327180000 Available to backorder	36-44 Mulch Deck Drive Pulley	£96.74 £80.62
6	8984 In stock	Screw Hex Hd Din933 M10 X 30	£0.94 £0.78
7	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£14.22 £11.85
8	2191 In stock	Key 1.4 X 1 Rounded	£0.48 £0.40
9	WE20869502 In stock	5Internal Pulley.Keyway	£71.62 £59.68
10	WE22949800 In stock	Cutter Belt	£39.20 £32.67
11	WE183530500 Available to backorder	363842Hgm Deck Drive Pulley Sp	£21.32 £17.77
12	2198 In stock	Self Drilling Screw Hex Head 4	£0.37 £0.31
13	WE22869800 In stock	Cutter Deck Belt	£67.32 £56.10
14	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.15 £0.96
15	2192 In stock	Washer - M8 X 21 X 1.6	£0.47 £0.39
16	WE301123800 Available to backorder	Joggled Belt Retaining Pulley	£18.40 £15.33
17	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
18	WE31351100 Available to backorder	Sweeper Jockey Cap	£42.56 £35.47
19	WE20811500 In stock	PTO Jockey Pulley	£23.06 £19.22
20	WE18831600 Available to backorder	Spacer Jockey Wheel	£43.90 £36.58
21	WE25906200 In stock	Deck Tension Spring	£19.78 £16.48
22	WE32731000 Available to backorder	Belt Tension Plate 96	£74.38 £61.98
23	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£49.72 £41.43
24	8416 In stock	Bolt M8 X 50mm	£1.19 £0.99
25	WE31302800 Available to backorder	Spacer 7mm X 5.16Id	£9.80 £8.17
27	WE307178700 Available to backorder	Hgm Chain Support Long	£23.78 £19.82
28	WE318961100 Available to backorder	36 Hgm Chain Rod Short 7mm Dia	£10.44 £8.70

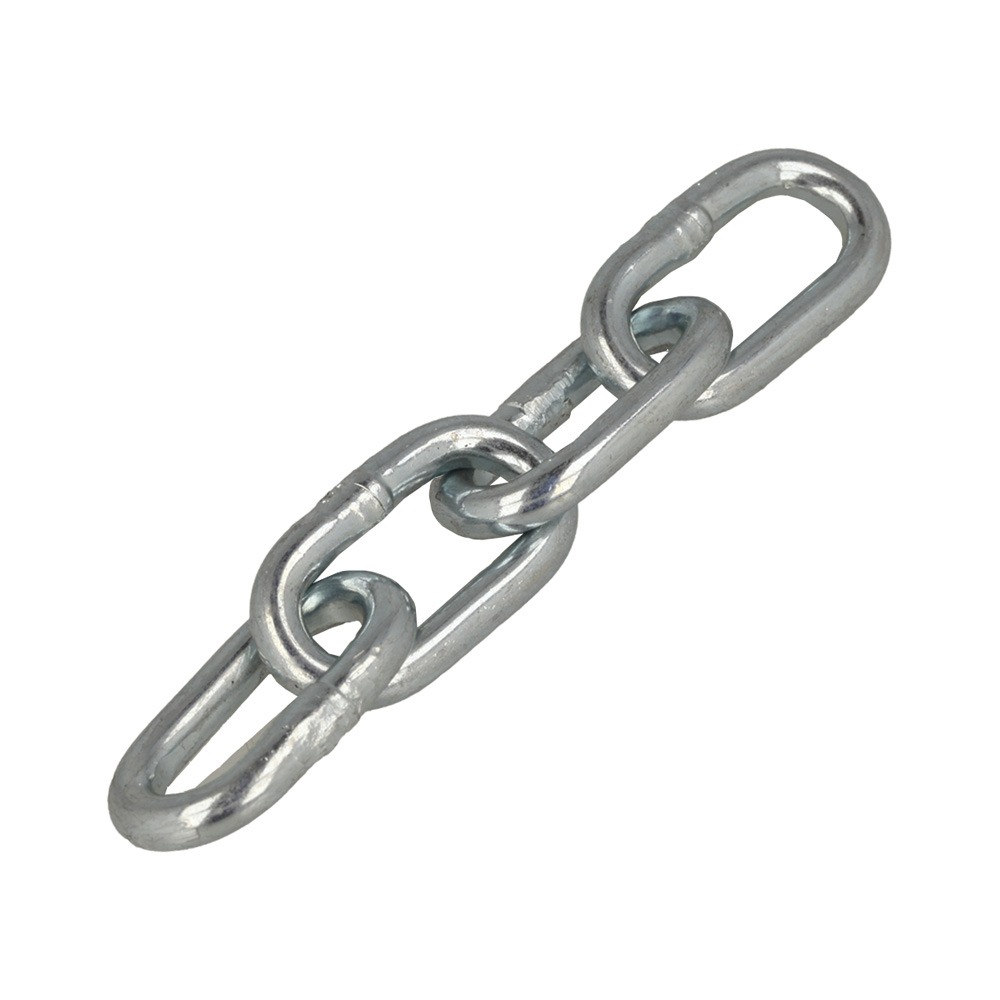

29	WE238000500 Available to backorder	36 Hgm Chain 7mm	£0.96 £0.80
32	WE29203800 Available to backorder	48 Deck Bar (32a)	£47.18 £39.32
33	WE35803300 Available to backorder	Rider Deck Danger Decal	£8.24 £6.87
34	WE028662600 Available to backorder		£0.64 £0.53
35	WE07847600 Available to backorder	Circlip 40mm	£1.76 £1.47
36	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£33.80 £28.17
37	WE10811600 In stock	Bearing (PTO Housing)	£16.34 £13.62
38	WE16000500 In stock	15 L.H Hgm Blade	£25.80 £21.50
39	WE183004200 Available to backorder	Tr D 98 Idler Pulley Spacer	£20.52 £17.10
40	WE358098300 Available to backorder	Decal Deck Safety Diagram 2013	£13.70 £11.42
41	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
42	WE30121300 Available to backorder	Rear Deck Hanging Bracket R.H	£21.24 £17.70
44	WE313007200 Available to backorder	Hgm Rear Chain Rod	£49.94 £41.62
45	WE07868700 Available to backorder	1.4 Starloc Washer	£0.54 £0.45
46	WE12860100 Available to backorder	Rivet 4.8 X 16mm Alloy Pop 103	£1.25 £1.04
47	WE301053800 Available to backorder	High Grass Mulcher Rubber Flap	£18.72 £15.60
48	WE148004800 Available to backorder	Rear Deck Rubber Flap 36 Hgm	£22.36 £18.63
49	WE40503607 In stock	Bearing Housing Assy Short Sha	£115.30 £96.08
50	WE40503507 In stock	Deck Bearing Housing Assy Long	£124.14 £103.45
51	WE30831500 In stock	Deck Bearing Housing Slinger 2	£11.74 £9.78
52	WE16000300 Available to backorder	Blade 3 Hole	£24.62 £20.52

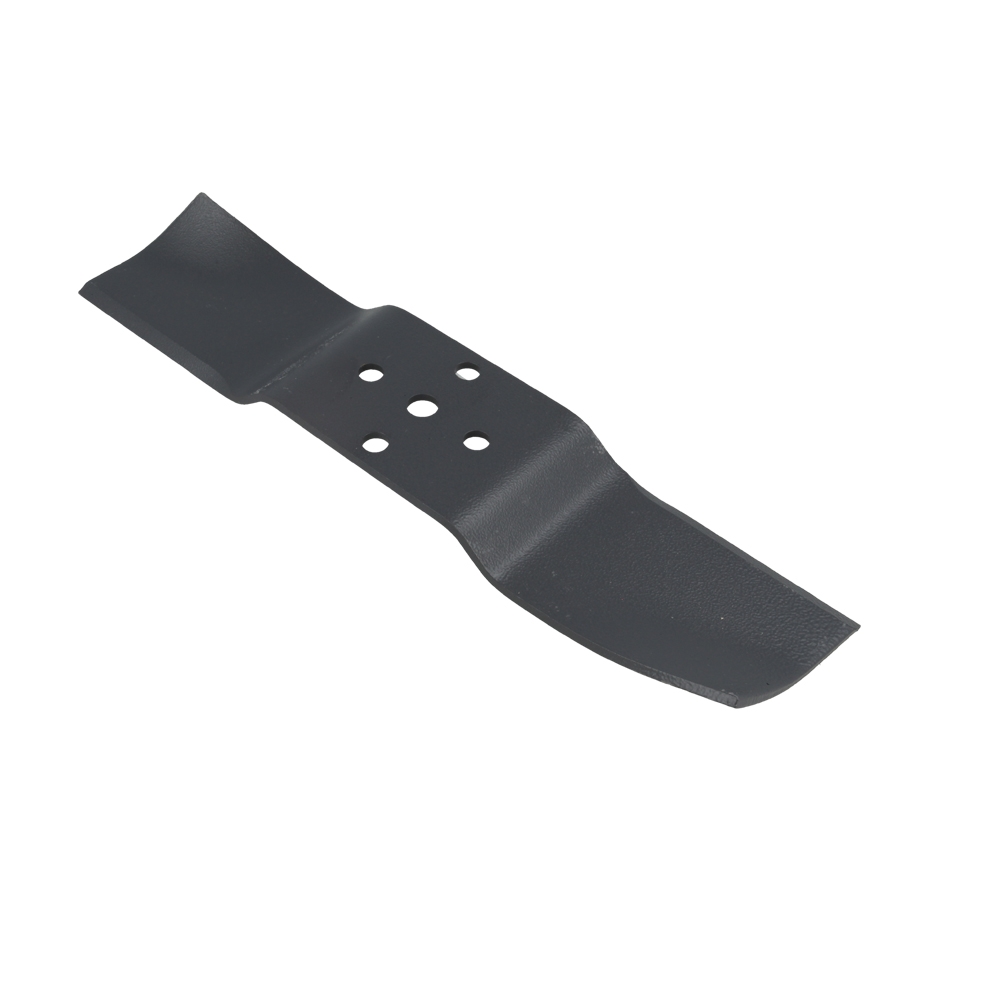

53	WE16000600 In stock	12 Hgm Blade	£25.80 £21.50
54	WE27111200 In stock	Deck Pan Tab Washer	£3.90 £3.25
55	6408 In stock	M8 Internally Serrated Shakepr	£1.34 £1.12
56	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
57	WE16000100 In stock	15 Blade Bridge	£25.04 £20.87
58	WE16000400 In stock	15 R.H Hgm Blade	£25.80 £21.50
59	WE301903500 Available to backorder	Deck Locking Tab Washer	£21.64 £18.03

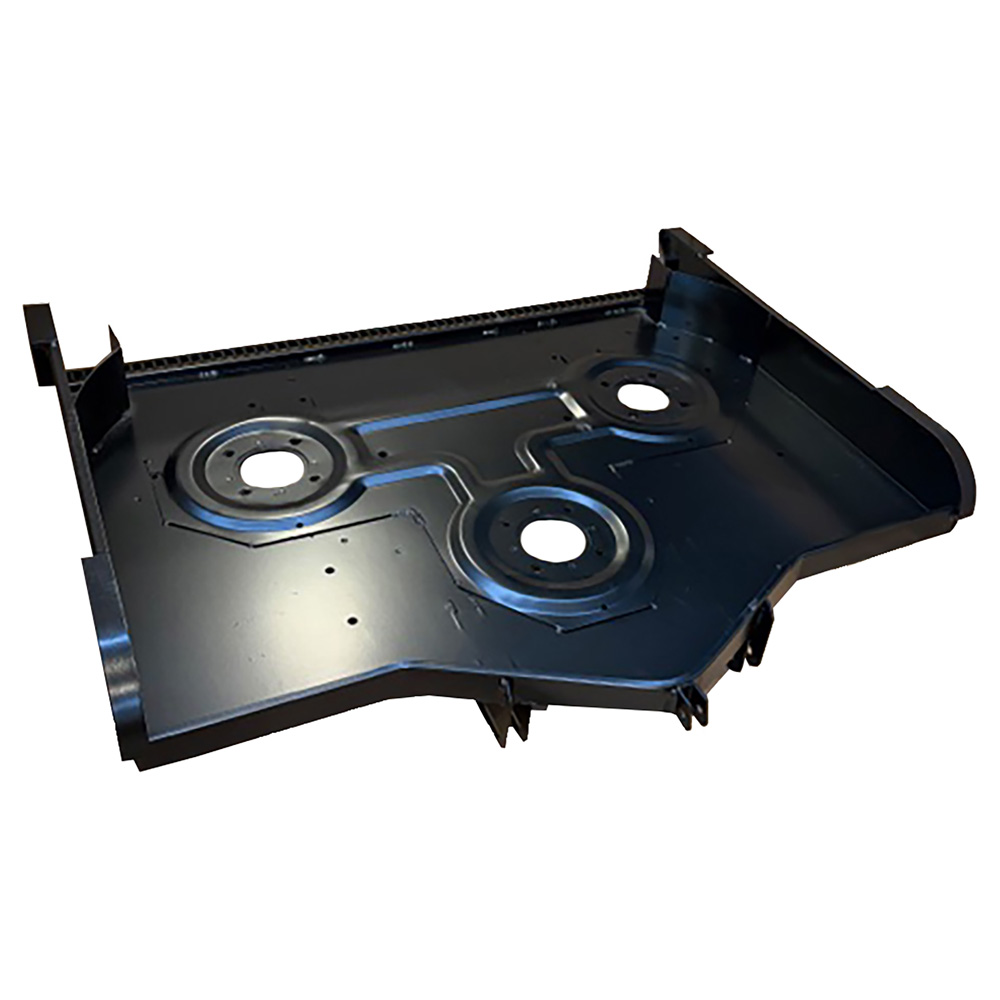

60	WE327176400 Available to backorder	36 Hgm Deck Shell Assembly	£1,128.00 £940.00
61	WE549008300 Available to backorder	Deck Pulley Guard Extension Pl	£10.67 £8.89
66	2173 Available to backorder	M10 Locknut	£0.38 £0.32
69	2539 In stock	M10 X 24 X 2 Tl Washer	£0.47 £0.39
70	2195 In stock	Rue Clip	£0.76 £0.63
