Countax Hgm Deck 36" - - 36 Hgm Deck

Name: Countax Hgm Deck 36" - - 36 Hgm Deck
SKU: countax_deck_hgmdeck36_36-group
Price: 0.29 GBP
Availability: InStock

Part No. countax_deck_hgmdeck36_36-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Countax HGM

HGM DECK 36" - Deck

From To -

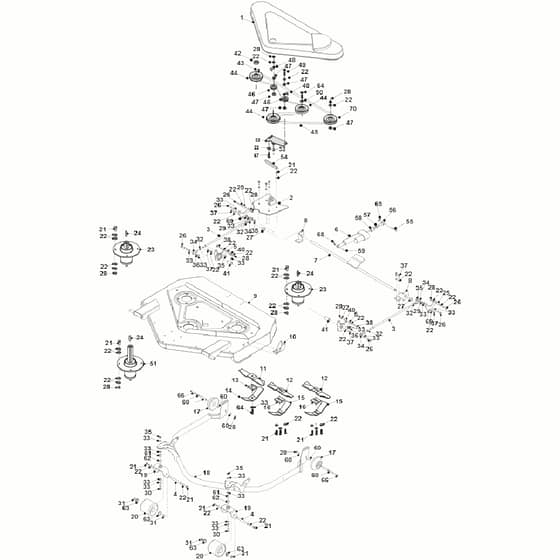

36 Hgm Deck Parts Diagram

	Part No.	Details
1	WE149557900 Available to backorder	Fir Tree Button 6.35 Ftb052-Bl	£2.98 £2.48
2	WE149497400 Available to backorder	Universal Deck Pulley Cover 20	£18.74 £15.62
3	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£1.00 £0.83
4	WE327180000 Available to backorder	36-44 Mulch Deck Drive Pulley	£96.72 £80.60
5	WE148017900 Available to backorder	36 Hgm Deck Only - Pre Drilled	£95.40 £79.50
6	8984 In stock	Screw Hex Hd Din933 M10 X 30	£0.48 £0.40
7	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
8	2191 In stock	Key 1.4 X 1 Rounded	£0.48 £0.40
9	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
10	WE228000100 Available to backorder	Deck Drive Belt	£37.54 £31.28
11	WE183530500 Available to backorder	363842Hgm Deck Drive Pulley Sp	£22.06 £18.38
12	2198 In stock	Self Drilling Screw Hex Head 4	£0.60 £0.50
13	WE22869800 Available to backorder	Cutter Deck Belt	£66.17 £55.14
14	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
15	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
16	WE301123800 Available to backorder	Joggled Belt Retaining Pulley	£19.03 £15.86
17	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
18	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
19	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
20	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
21	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
22	WE32731000 Available to backorder	Belt Tension Plate 96	£74.40 £62.00
23	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£51.43 £42.86
24	8416 In stock	Bolt M8 X 50mm	£0.46 £0.38
25	WE31302800 Available to backorder	Spacer 7mm X 5.16Id	£10.14 £8.45
27	WE307178700 Available to backorder	Hgm Chain Support Long	£24.60 £20.50
28	WE318961100 Available to backorder	36 Hgm Chain Rod Short 7mm Dia	£10.80 £9.00
29	WE238000500 Available to backorder	36 Hgm Chain 7mm	£1.01 £0.84
31	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor	£1.28 £1.07
33	WE35803300 Available to backorder	Rider Deck Danger Decal	£8.52 £7.10
34	WE028662600 Available to backorder	Bolt M8 X 55	£0.65 £0.54
35	WE07847600 Available to backorder	Circlip 40mm	£1.82 £1.52
36	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£36.23 £30.19
37	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
38	WE16000500 In stock	15 L.H Hgm Blade	£26.28 £21.90
40	WE358005900 Available to backorder	Yellow Background Warning Labe	£12.12 £10.10
41	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
42	WE30121300 In stock	Rear Deck Hanging Bracket R.H	£21.64 £18.03
44	WE313007200 Available to backorder	Hgm Rear Chain Rod	£51.66 £43.05
45	WE07868700 Available to backorder	1.4 Starloc Washer	£0.56 £0.47
46	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 103	£0.35 £0.29
47	WE301053800 Available to backorder	High Grass Mulcher Rubber Flap	£19.37 £16.14
48	WE148004800 Available to backorder	Rear Deck Rubber Flap 36 Hgm	£23.14 £19.28
49	WE40503607 In stock	Bearing Housing Assy Short Sha	£119.30 £99.42
50	WE40503507 In stock	Deck Bearing Housing Assy Long	£128.50 £107.08
51	WE30831500 In stock	Deck Bearing Housing Slinger 2	£11.96 £9.97
52	WE16000300 Available to backorder	Blade 3 Hole	£25.46 £21.22
53	WE16000600 Available to backorder	12 Hgm Blade	£26.28 £21.90
54	WE27111200 In stock	Deck Pan Tab Washer	£4.18 £3.48
55	6408 In stock	M8 Internally Serrated Shakepr	£0.48 £0.40
56	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
57	WE16000100 In stock	15 Blade Bridge	£26.84 £22.37
58	WE16000400 Available to backorder	15 R.H Hgm Blade	£26.28 £21.90
59	WE301903500 Available to backorder	Deck Locking Tab Washer	£22.39 £18.66
60	WE327176400 Available to backorder	36 Hgm Deck Shell Assembly	£1,015.63 £846.36
